| Brand Name : | Charmhigh |
| Model Number : | E6 |
| Certification : | CE |
| Price : | $11600 |
| Payment Terms : | T/T |
| Supply Ability : | 50 per month |
| Delivery Time : | 10-20 working days |

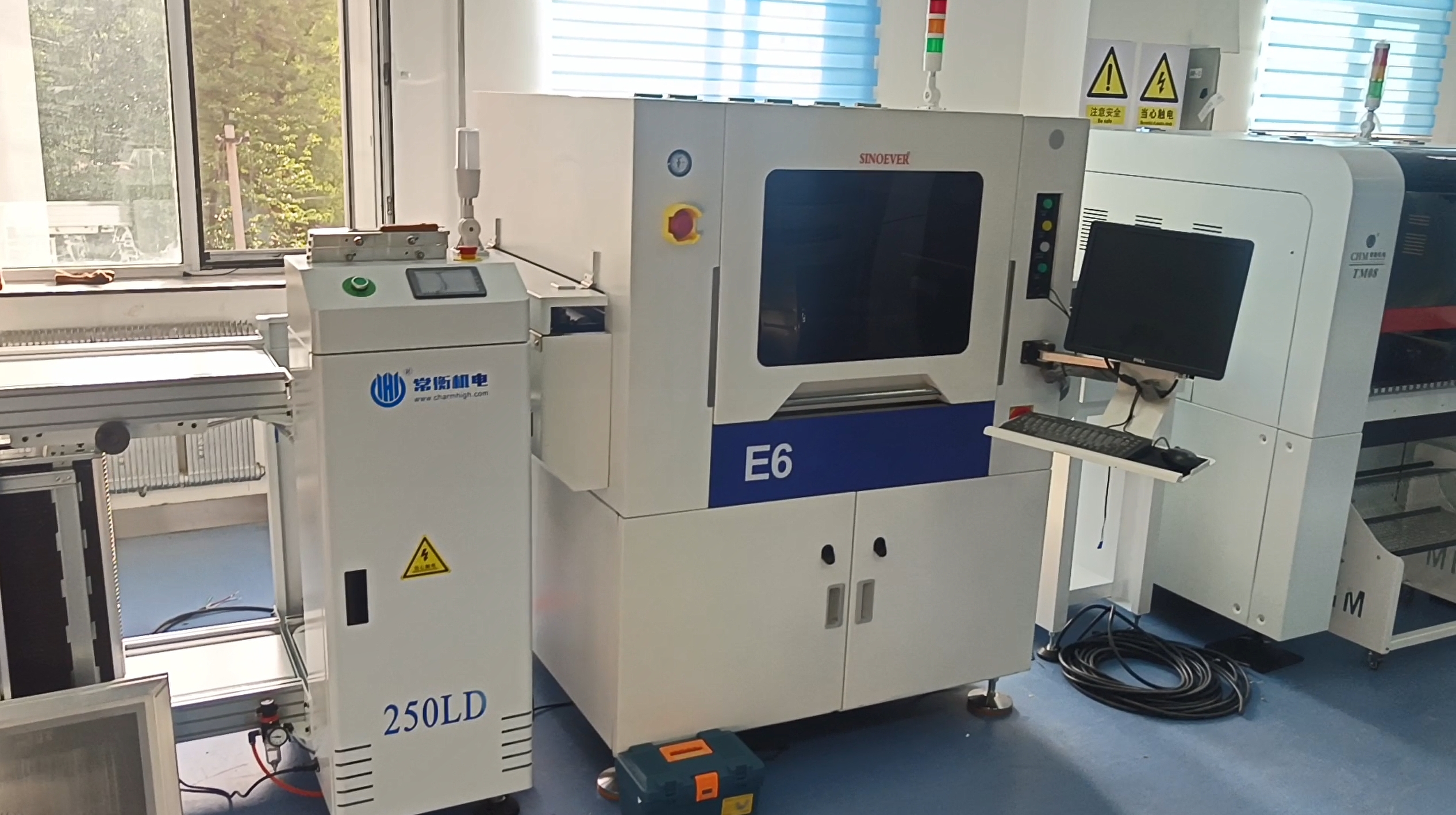

High Precision E6 Fully Automatic Solder Paste Printer SMT Stencil Printer Screen Printing Machine for SMT Assembly Line, SMT production line
PRODUCT CHARACTERISTICS
1.The lifting stage is driven by high-precision lead screws.
2.The upper and lower movement of the stencil is driven by high-precision silent lead screws.
3.Equipped with an automatic stencil cleaning device, making it easier and more worry-free to use.
4.Equipped with an advanced image learning MARK point system, it is easy to correct the center position of the PCB and the stencil without the need for special MARK points, ensuring the accuracy of the solder paste printing.
5.Full-axis linkage reset technology allows the machine to quickly return to the home position.
6.Quick and easy setup of changeover parameters, increasing the speed of line change.
7.Multiple light source options, making it easy to handle reference points for PCB boards of different colors.
8.User permission settings to prevent important equipment parameters from being accidentally modified.
| Item E6 | Parameter |
| Net frame size(outer frame) | 470(W)x370(D)mm～736x736mm |
| Circuit board size: | 50x50mm~600(W)x350(D)mm |
| Operating system: | Windows 7 |
| Thickness of circuit board: | 0.4~6mm |
| Printing speed: | 10 to 200mm/s |
| Visual adjustment system: | automatic (any shape) |
| Circuit board warping: | Max PCB diagonal1% |
| Type of scraper: | steel scraper/rubber scraper Angle optional(45°/60) |
| XY axis adjustable size: | ±10mm |
| Adjustable printing Angle: | ±2° |
| Positioning repetition: | ±0.01mm |
| Transmission cycle time: | 15s(not including printing and cleaning time) |
| Transmission height: | 900±20mm |
| PCB positioning -Support mode: | magnetic tube needle and vacuum adsorption |
| Printing mode: | single/double printing |
| Camera field of view: | 8x6 mm |
| Visual reference point: | any reference point,welding pad,0.5～3 mm |
| Power supply: | 220VAC 50-60Hz 1700W |
| Air pressure supply: | 4.5-6kg/m² |
| Weight: | 950 kg |
| Transmission direction: | left in right out/right in left out/left in left out/right in left out/right in right out |
| Volume | 1482x1140x1535mm(WxDxH) |
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
