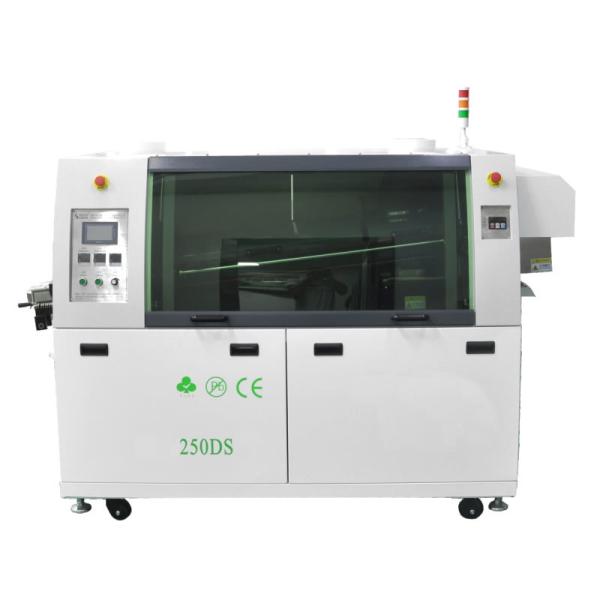

Full automatic Lead-free Wave Soldering Mahchine 250DS for PCB DIP Production Line

Description:

1) Suitable for SMD and THT component soldering, streamlined design, aesthetically pleasing, convenient for maintenance and upkeep.
2) The preheating zone and filtration system both employ a direct pull-out modular design for easy maintenance and upkeep.
3) Two-stage preheating zone with a stable preheating curve ensures even heating of the PCB without deformation.
4) Equipped with an intelligent automatic tracking spray system, the spray area automatically adjusts with the width of the PCB.
5) Utilizes a programmable logic controller (PLC) with an internal speed tracking program, adjusting the spray time according to the PCB transport
speed.
6) Features an automatic cleaning device for the flux nozzle, eliminating the need for cleaning after long-term use. Automatically adjusts and
includes a spray fine-tuning function for greater convenience.
7) The furnace chamber is designed with SINOEVER's special spiral structure, and the wave soldering system is designed to collect solder dregs, preventing the generation of floating black powder. This greatly reduces thermal deformation and saves electricity while reducing oxidation.
8) The guide rail is uniquely designed by SINOEVER, ensuring complete and smooth soldering and transmission of the PCB.
9) Employs variable frequency drive technology for precise control of the wave peak height.
10) The heating elements are uniquely designed by SINOEVER with energy storage. The nickel-chromium infrared heating tubes provide even heating and have a long service life.
11) Features over-temperature, audio-visual alarm, and emergency braking functions. All motors are equipped with an overload protection system.
12) The transport system uses a variable electronic or frequency conversion speed control system with closed-loop control for stable speed.
13) Equipped with a spray exhaust filter plate for easy cleaning. Reduces emission pollution.
14) Precision titanium alloy spring titanium claws for transporting PCBs; smooth, reliable, and never stick to solder.
15) The entire control system uses a programmable logic controller (PLC) and a display control touch screen, making operation simple, facilitating human-machine dialogue, and ensuring high reliability.

250DS Specification:

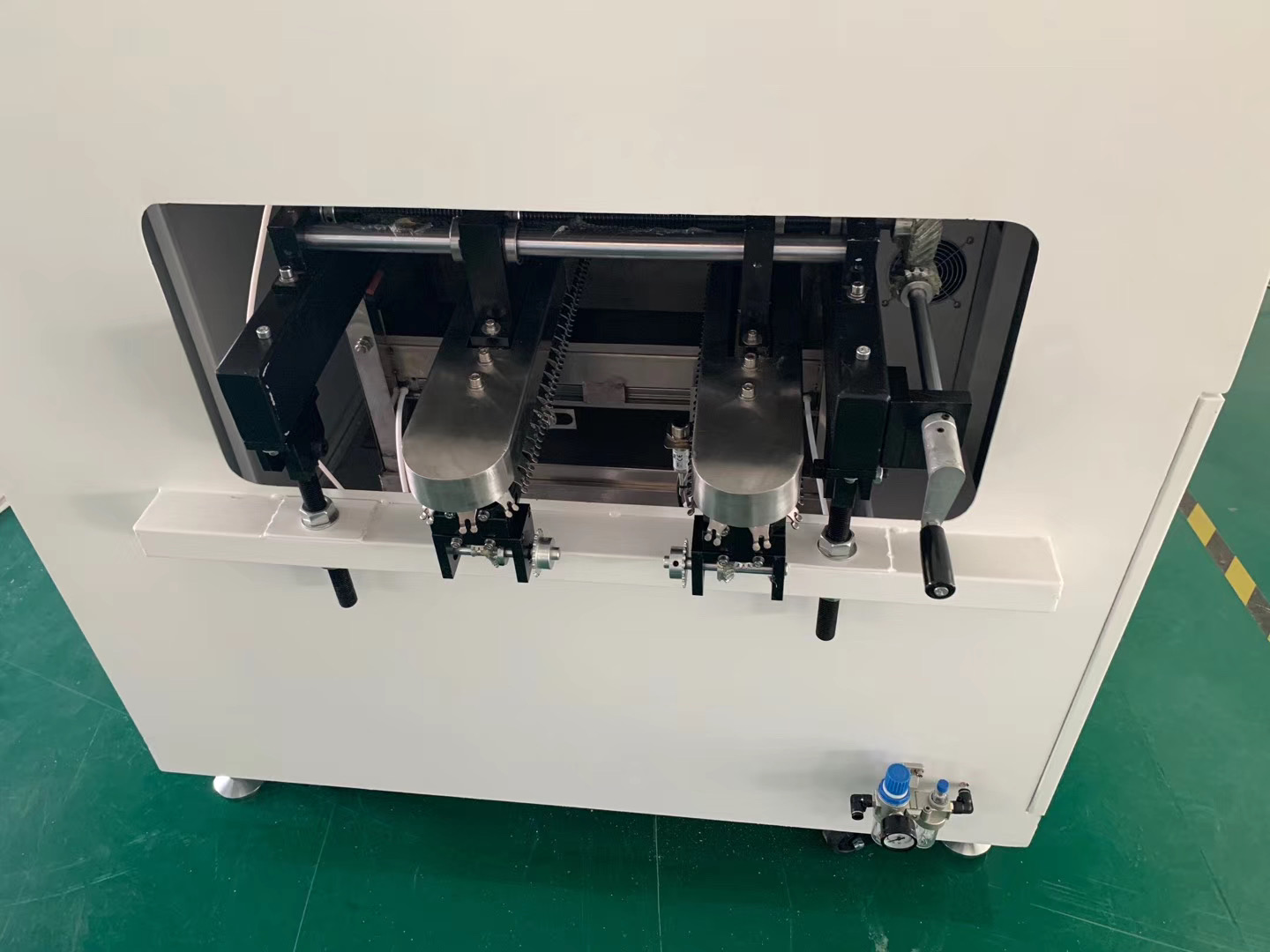

Detail real pictures:

Wave soldering machine loader & unloader conveyor:

Support & Contact:
Kimi Liu
Charmhigh Technology Limited
Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com

If you want more information, please contact us by E-mail. We will response you at the first time.

Our YouTube channel: https://www.youtube.com/@KimiLiuCharmhigh/videos

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
