Charmhigh RS10 Magnetic Suspension Pick and Place Machine Dual Linear Motor Drive
For High speed High precision large PCB assembly line, PCBA manufacturing Support 01005
Introduction
RS10 Ten-head high-precision, high-speed Magnetic Suspension SMT pick and place machine
1. Optimal Speed: 45000CPH (under the best conditions of our company)
2. Mounting Accuracy:(xy)+0.035mm CPK>1.0;
3. Components Mounting Range: Inch size 01005 - 36mmX36mm and larger components
4. Optional: blue light scanning, lens mounting, 1.2m long PCB mounting production
Please follow us on our YouTube channel:
Real working video on YouTube: https://www.youtube.com/watch?v=gKEczMsSI8U
Nepcon exhibition show: https://www.youtube.com/watch?v=QBc1G8YdDxI
Charmhigh workshop real production: https://www.youtube.com/shorts/99TI9xDhP2M
Charmhigh RS10:
| Dimensions | 1600mm(L)×1688mm(W)×1560mm(H) |
| Weight | 1930kg |
| Power Supply | AC380V (50Hz, three phase), 4.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 10 heads |
| Mounting Speed | 45000cph (optimal); |
| Mounting Accuracy | (XY)±0.035mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| Component Range | Inch size 0201 to 36mm*36mm, and larger components mounting. |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 600mm(L)×400mm(W) (standard); 1200mm(L)×400mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (31-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X axis is driven by servo motor, Y axis driven by dual linear motor |
| Transmission System | X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws) |
| Feeding System | 100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×10 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); It has the function of image stitching Mark camera×2 |
Charmhigh RS10 Highlight:
1.The Y-axis Dual linear Motor drive
2.Support CPK Detection
3.Large-size Component ldentifcation
4.ANC (Auto Nozzle Changer)
5.HD IC vision system
6.Frame structure with grinding industrial-grade platform, Y axis internal casting
7. Built-in Vacuum Pump + solenoid valve structure
8. Automatic thermal Compensation correction system
9. PCB Support Device
10. Dual mark camera, good for bigger PCB
For more machine features, please consult our sales manager...
Charmhigh RS10 real pictures:

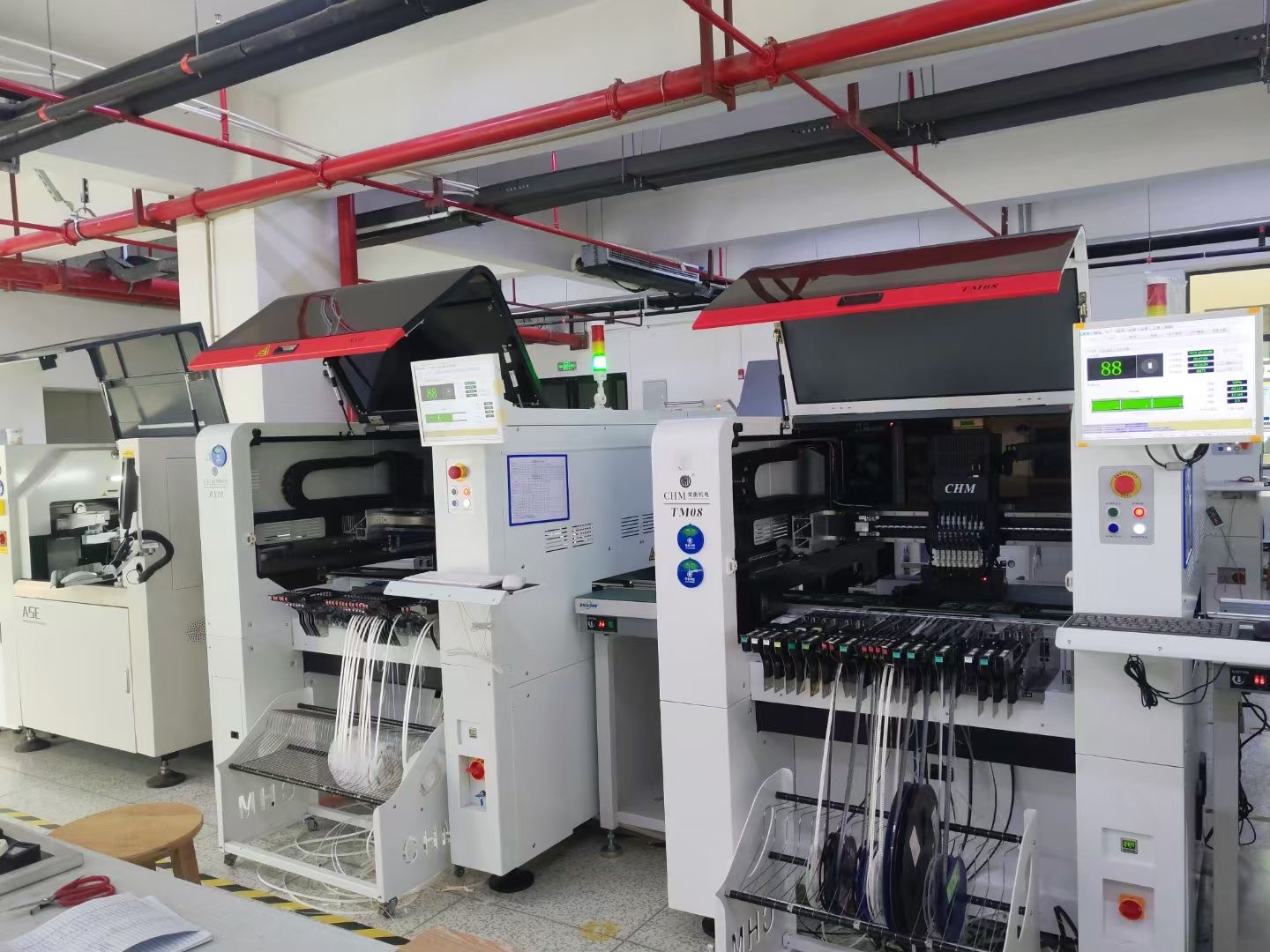

RS10 real production everyday in our factory: (100 feeder slots, work with Fuji NXT electric feeder):
PCB Samples:
Charmhigh factory direct supply, top Chines brand, reliable manufacturer:
(rich stock, excellent after-sale service)
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
