Smart software high precision 6 Heads SMT Pick and Place Machine TM06
Full In-line SMT Pick and place Machine with PCB conveyor
Medium full-automatic PCB assembly line - for SMT batch production
1. Model number: TM06
2. Brand: Charmhigh
3. Main configuration: 3-piece PCB auto delivery + 6 Heads 60
feeders + Panasonic servo motor
+ auto nozzle changer(19 positions) + 9 cameras + Ball screw+
linear guide(Y axis with double screws)
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (2 options): 400*350mm / 800*350mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.
8. 1320(L)x1350(W)x1500(H), AC220V (50/60Hz, 1 phase)
9. Lead time: 5-8 working days
10. Delivery: by air / by sea / pick up from our factory directly /
send to warehouse in China
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Charmhigh 6 heads SMT pick and place machine working video on customer site:
https://youtu.be/aQr95HjaxFQ?si=HwKuz-CAX2lodkLv
TM06 specification:
| Model | TM06 |
| Dimensions | 1320mm(L)×1600mm(W)×1500mm(H) |
| Weight | 1100kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Bilt-in vacuum pump |
| Mounting Head Quantity | 6 heads |
| Mounting Speed | 27800cph (optimal) |
| Mounting Accuracy | ±0.035mm; CPK≥1.0(XY) |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 01005/0201/0402～5050/SOT/SOP/QFP/QFN/BGA, etc. to max vision 36*36mm components (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W) (standard); 900mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting TBI ground ball screw and HIWIN linear guide (Y axis with double screws) |
| Feeding System | 60 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Real pictures for TM06:

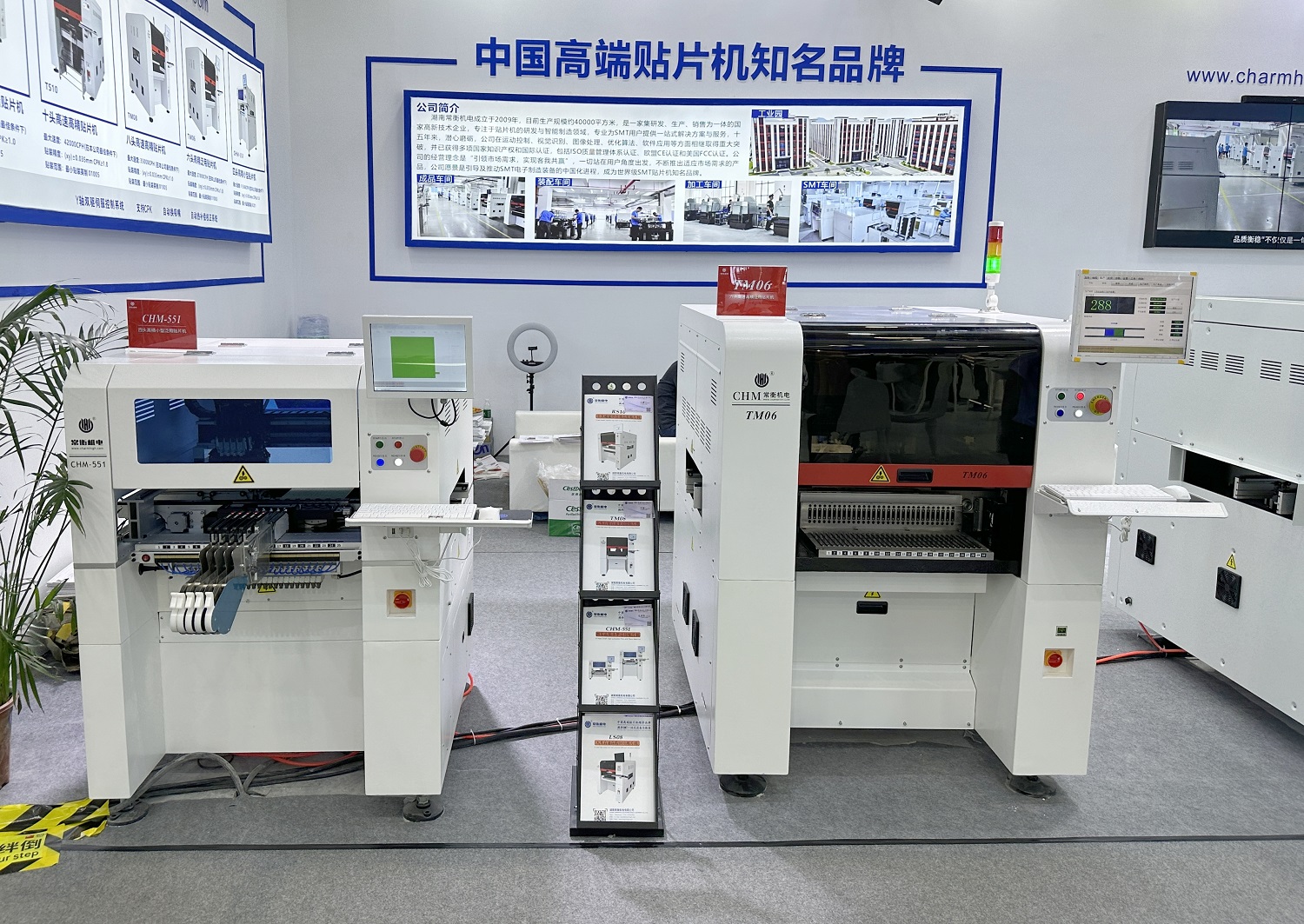

( CHM-551 & TM06 )
60 feeder slots (Work with Fuji NXT electric feeder, feeders purcahse separately, 8/12/16/24/32/44mm):
It can achieve high-precision and stable mounting of the smallest 01005 and large-size components.
Full-automatic SMT production line:
Customer site:
PCB samples:
Charmhigh factory direct supply, our TM06, TM08, TS10, TS20 series machines base structure is adopted: grinding industrial-grade platform, Y-axis integral casting, so that the equipment can run stably and reliably under high-speed working conditions.
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
