| Brand Name : | Charmhigh |
| Model Number : | CHMT36VA |
| Certification : | CE |
| Price : | $3100 |
| Payment Terms : | T/T , Western Union, MoneyGram |
| Supply Ability : | 200pcs per month |
| Delivery Time : | 2-3 working days after received your payment |
Hot sale!
29 Feeders 2 heads Vision Camera CHMT36VA + External PC,
Desktop SMT Pick and Place Machine, small batch production, prototyping
SMD Surface Mounting English Version 110v 220V CE passed
Shipping by TNT..DHL.. Or you can pick up from our factory!
Working video:
CHMT36VA working video from Italy:
www.youtube.com/watch?v=FJoGJK79luU
CHMT36VA Placing LED - production video:
www.youtube.com/watch?v=jYD_1U8pUm0
Catalogue download from here: CHMT36VA.pdf
Description:

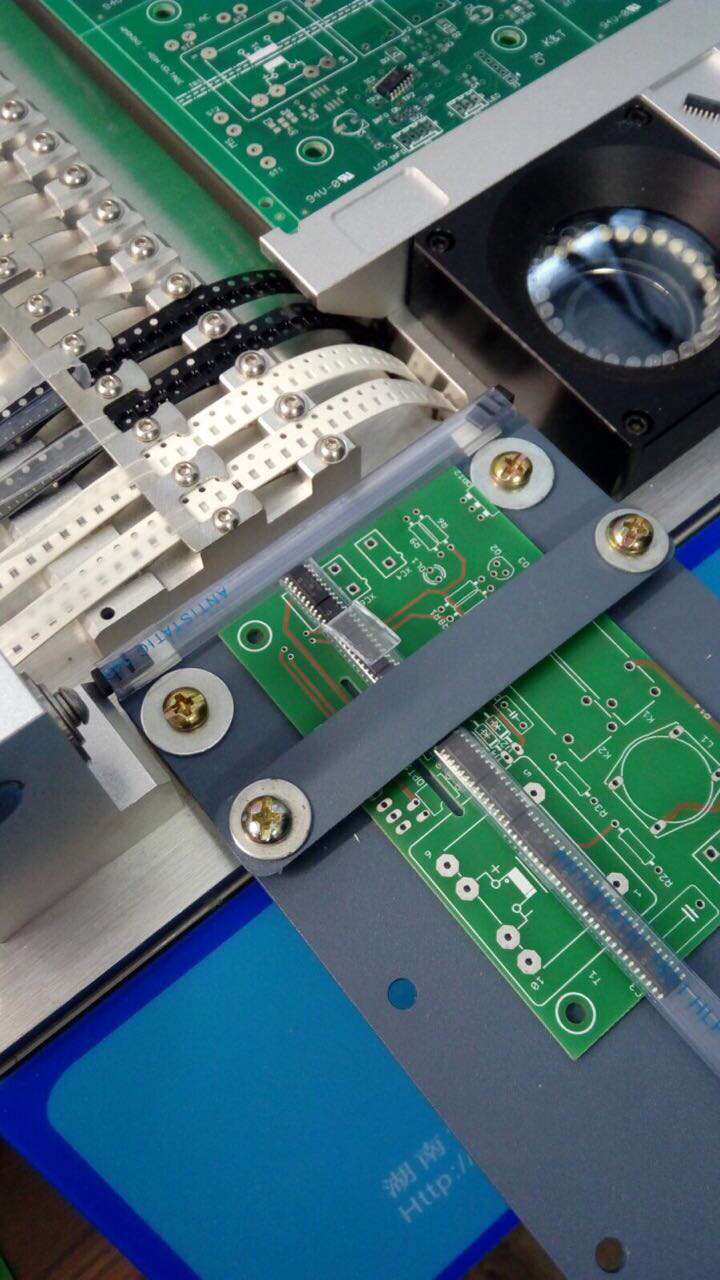

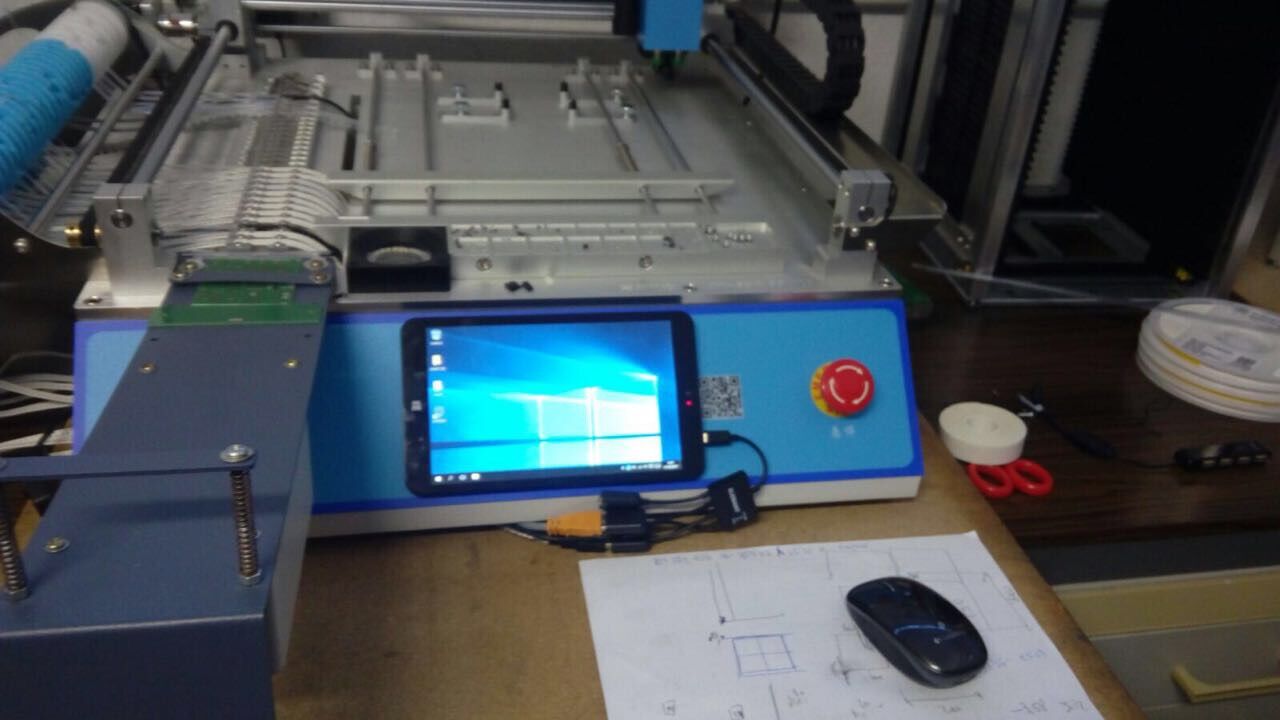

CHMT36VA is a vision-based desktop pick and place machine which need connect external PC with windows 7 system. It is very reliable with low-cost economic model, this small platform machine comes with advance vision system, closed-loop control, 29pcs material stacks. High precision and easy operation software. It compatible all different kinds of components 0402-5050,SOP, QFN, TQFP... very suitable for for prototype builders, hobbyists, developers, and development groups and small batches production, you just need to prepare a computer which has USB port.
Main Parameter
| Model | CHM-T36VA |
| PCB area | 10mm*10mm - 355mm*355mm |
| X Y axis Travel | 420*460mm |
| Z axis moving range | 15mm |
| Placement heads | 2pcs |
| Feeders | 8mm=22pcs, 12mm=4pcs, 16mm=2pcs, 24mm=1pcs, Front IC tray=14pcs, user-defined IC tray |
| Vision system | Dual cameras(up & down cameras) |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, prevent nozzles breaking |
| Pull pin self-return | Yes |
| Leakage of material detection method | Vacuum detection, vision detection |
| Mounting speed | 4000cph (vision off); 2800cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN,(tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension | L 960mm * W 705mm * H 335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | Yes (software compatible with windows7) |
| Voltage | 220V (110V),50Hz |
| Compatible software | Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS…etc |
| Gross weight | 70kg / 107*78*50cm / 0.41m³ |
Applications industry:
Household appliances industry, Auto electronics industry, Power
industry, LED industry, security, instruments and meters industry,
communications industry, intelligent control industry, Internet of
Things(IOT) industry and military industry, etc.
Standard Accessories for CHMT36VA:
1) SMT Desktop Pick and Place Machine CHMT36VA*1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Pull pins: 2
6) Coil for pull pin:1
7) Grease: 1
8) Hex wrench: 6
9) Tweezers: 1
10) Brush: 1
11) English user manual: 1
Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical
advice service.
Provide one to one after-sale service. Each machine 100% test well before ship out.
