6 Heads SMT Production Line 13000cph
Screen Printer 3250, CHM-750 Auto Nozzle Changer, 830 Reflow oven

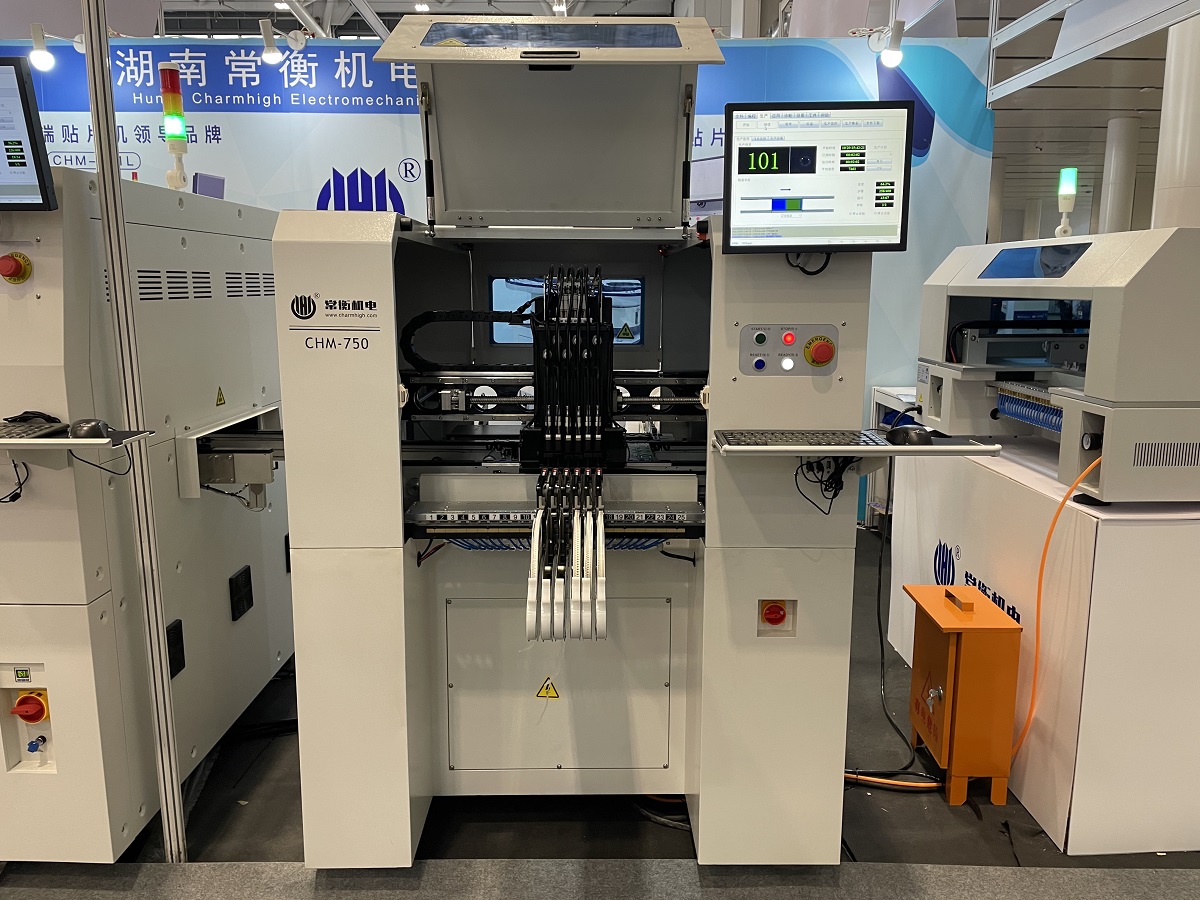

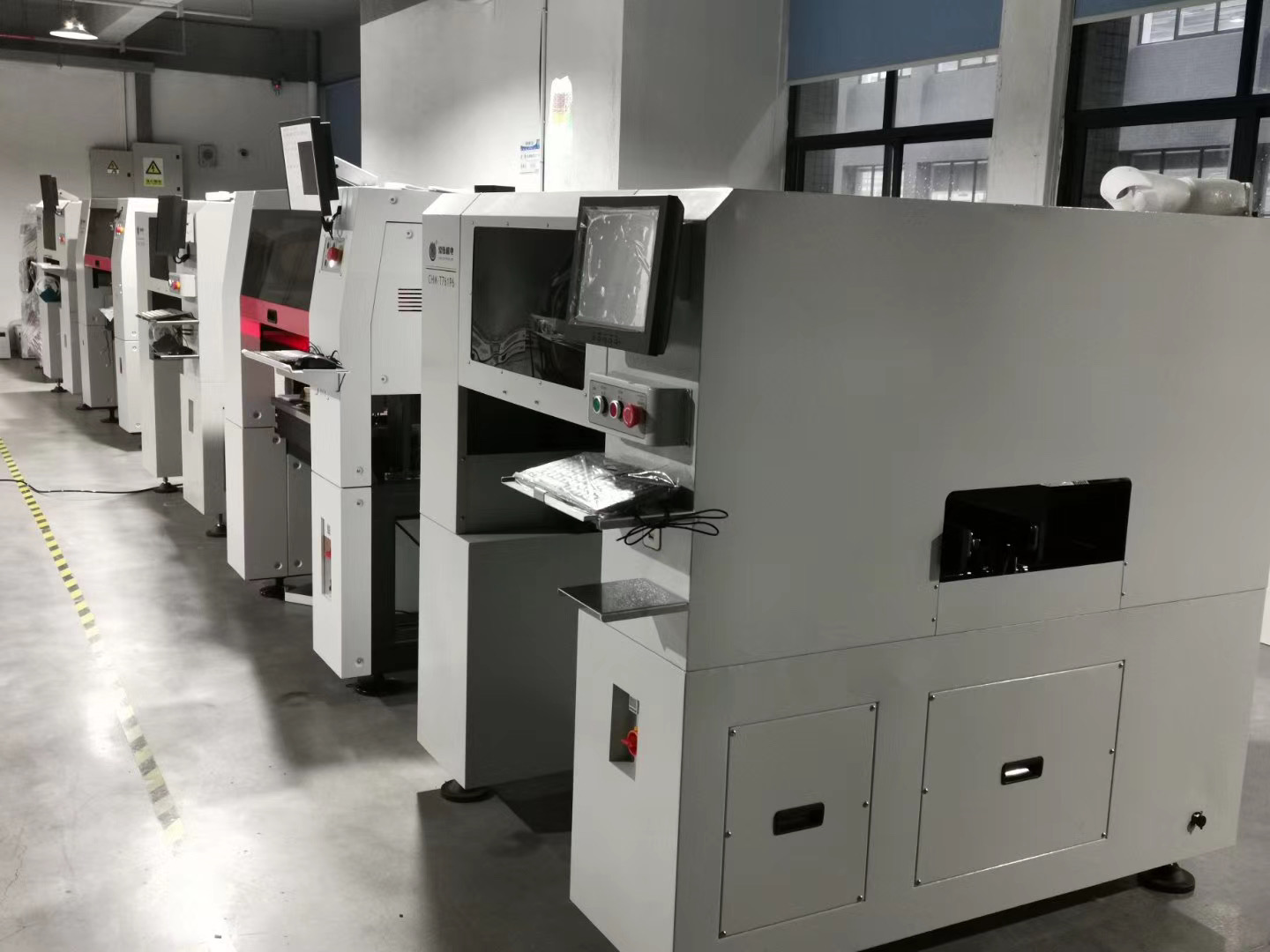

CHM-750 SMT Production line in a Chinese factory:
https://www.youtube.com/watch?v=86Q1jI8Ey9E
Lead-time: 5-8 days
Trade terms: EXW, FCA, FOB, DDU, DDP
Payment method: T/T
Delivery way: by air / by sea
Packing: Wooden box
CHM-750 Specification:
| Dimensions | 1280mm(L)x1190mm(W)x1470mm(H) |
| Weight | 520kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |
| Mounting Head | 6 heads |
| Mounting Speed | 13000cph (optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)x350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide (Y axis with double screws) |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
Vision System | Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
Why choose Charmhigh?
CHARMHIGH is a professional manufacturer of SMT Pick and Place
machine and CNC Router since 2009. It is a R&D, production and
sales as one of the high-tech company. We have plenty experiences
in Machinery, on this basis, our company continued to develop new
products, has been to meet our customers' needs.
Our CHMT serials PnP machines and CNC routers are for the majority of small and medium enterprises and individuals to provide complete electronic automation system, the device continues to innovate to meet the needs of users all over the word, to create maximum value for users.
We are very keen to stay up to study with the latest SMT technology. We have confidence to create more high quality products and provide best service.
|
|
