LED Strip 1.2m Desktop 4 Heads LED Pick and Place Machine CHMT510, 11000cph

Charmhigh CHMT510LP4 LED Pick and place Machine, 4 Heads 8 Feeders, 1.2m LED strip,

Advanced SMT pick and place machine, for small LED batch production

1. Model number: CHMT510LP4 (4 Heads 8 feeders + square rail linear guide + 1.2m LED strip moving table)
2. PCB area: 10mm*10mm~240mm*1200mm
3. Closed-loop control, Embedded Linux system, industry main board
4. Component: 0402-5050, SOP, QFN...1.2m LED strip etc.
5. Lead time: 1-2 days (in stock).
6. Delivery: by Air / by Sea / by DHL...You can choose by yourself. Or arrange pick up from our factory directly.
7. Payment method: T/T

8. Packing: wooden box

CHMT510LP4 (LED Model) Exhibition working video (1.2m LED strip):
www.youtube.com/watch?v=GBAclhAfaUs

Description:

Charmhigh CHMT510LP4 is an LED desinged pick and place machine with 1.2M moving table, it has 4 heads with 8pcs Yamaha feeders supported. It not only support all kinds of LED, but also 0402,0603,0805-5050, SOP,QFN,LQFP,Diode,Transistor ... it has top and down two cameras vision system.
Yamaha pneumatic feeder and Juki Nozzle are mature products, they are accept by customers in market, very stable and convenient! This machine for small smt production is your good helper! It is very suitable for small and medium company and factories!
The operation system is industry level embedded Linux system, the main board of machine was researched by ourself, which is more relaible than windows system, and life time is much longer. Please purcahse it with confidence.

Charmhigh CHM-510LP4 Technical Parameters:

100% Real pictures:

Now the X,Y Axis and moving table all updated to linear guide, more firm and faster and better precision:

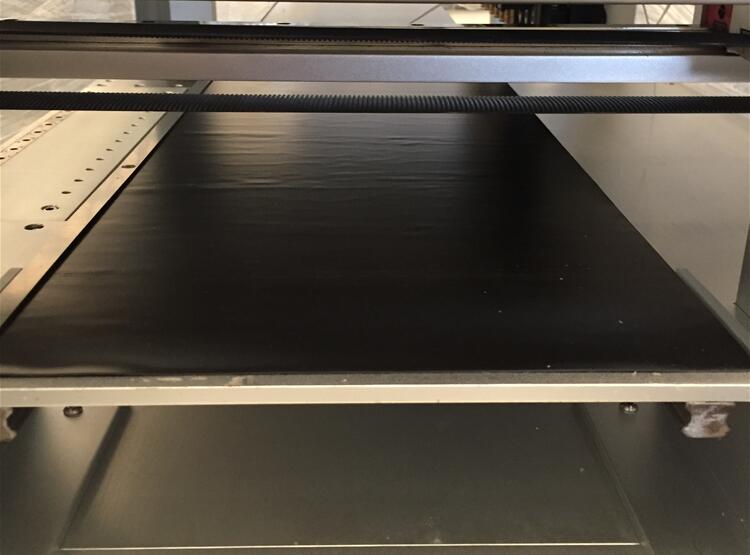

Moving table:

Best quality square rails:

How to fix the PCB:

Customer feedback:

Hot sell CHMT510 model, suitable for small LED factories:

​Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.

We always provide spare parts of machine, factory reliable direct supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support & Contact:

Kimi Liu

Charmhigh Technology Limited

Mob/ WhatsApp: 0086 135 106 75756

Skype: kimiliu89

E-mail: kimi@charmhigh-tech.com

Welcome to follow us in YouTube: www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA/videos

If you want to see more information and videos, please contact us by E-mail.

We will response you at the first time.

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.

Charmhigh new building

Charmhigh Office

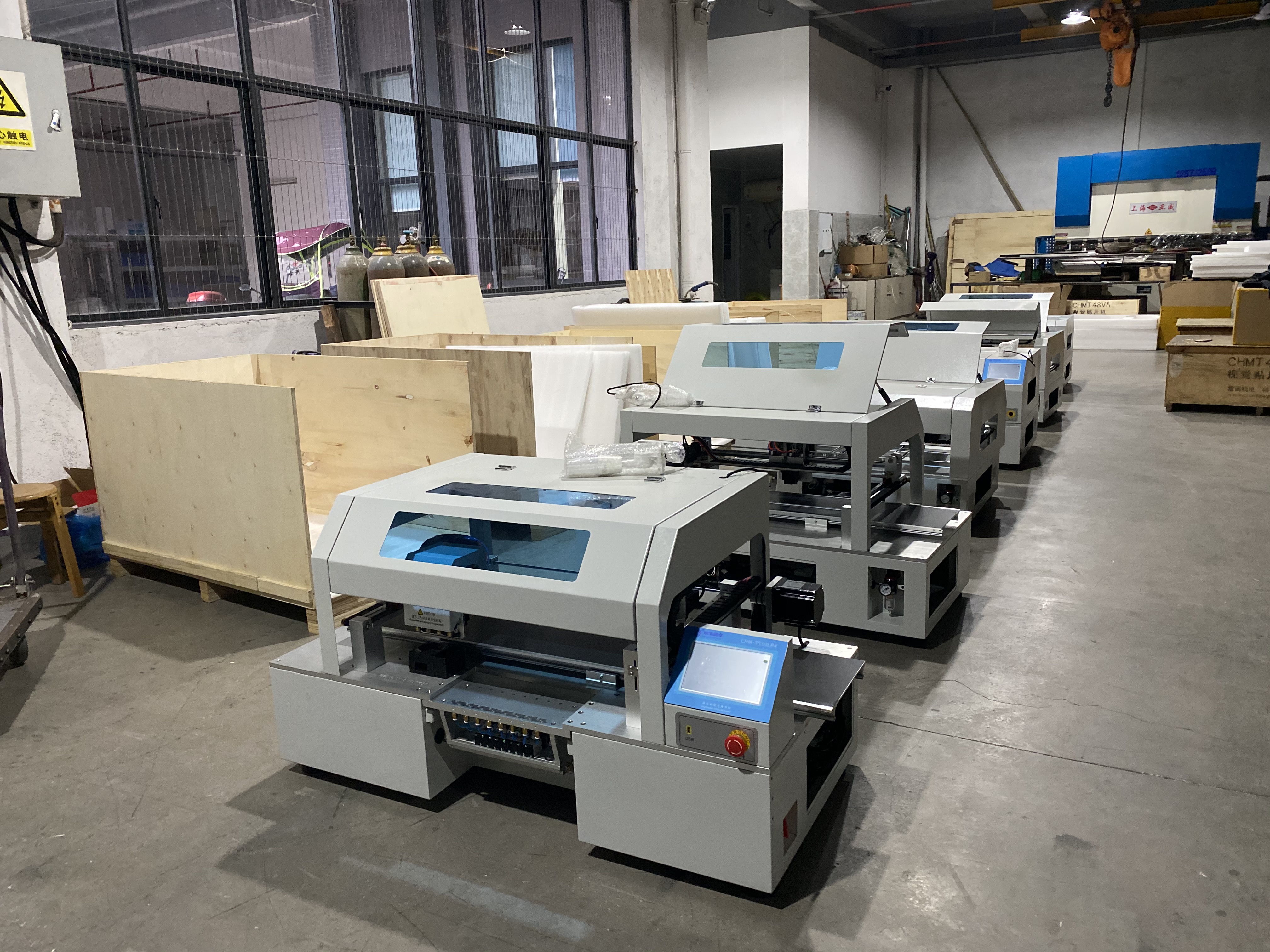

Charmhigh warehouse
