Perfect Charmhigh CHM-861
8 Heads 100 feeders High Speed In-line SMT Pick and place Machine PCB making machine
1. Model number: CHM-861
2. Brand: Charmhigh
3. Main configuration: Vertical type + PCB auto delivery + 8 Heads
100 feeders
+ Panasonic servo motor + nozzle changer + 11 cameras + THK
Grinding screw
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (3 options): 450*380mm / 600*380mm / 1200*380mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201/ 0402 / 0603-5050/ diode/ triode/ SOP/ QFP/ QFN/
BGA/ LED...
8. Dimension: 1600 (L) * 1430 (W) * 1530 (H)mm, AC380V (50/60Hz,
three phase)
9. Lead time: 3-5 working days
10. Delivery: by air / by sea / pick up from our factory directly /
send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Video: CHM-861 introduction:
www.youtube.com/watch?v=kFchN0IbqJE&t=3s
Video: CHM-861 real working video with capacitors and resistors & IC:
www.youtube.com/watch?v=fuU9Me0ENa8
Video : CHM-861 placing 0201 with NXT electric feeder:
www.youtube.com/watch?v=8Af6YTx_t3M&feature=youtu.be
| CHM-861 Parameters | |||
| Brand | Charmhigh | Model | CHM-861 |
| Positioning Method | Fixed shooting & Moving shooting | Feeding System | 100 feeders supported(maximal/8mm as standard) |
| Height of Components | 12mm (maximal) | Type of Feeder | NXT-compatible electric feeder |
| Mounting Speed | 30000/cph (optimal) | Number of Cameras | 8 fly cameras +1 IC camera +2 Mark cameras |
| Placement Head | 8pcs | Auto Nozzles Change | Support (37 holes nozzle library) |
| Operating System | Windows 7 system + Charmhigh self-developed software | Accuracy Rate | ±50μm@μ±3σ/chip |
| Compressed Air | 0.5~0.7Mpa | Power | 4.5KW |
| Thickness of PCB | 0.6~3.5mm | Power Supply | AC380V (50/60Hz, 3 phase) |
| Net weight | 1600KG | ||
| Dimensions(mm) | 1600(L)*1430(W)*1530(H) | ||
| Components Supported | 0201/0402/0603~5050/Diode&Triode/SOP/QFN/BGA/LED etc. | ||
| PCB Delivery | 3 pieces auto rails PCB delivery, PCB support | ||
| PCB Normal Size Supported(mm) | 450(L)*350(W)/600(L)*350(W)(optional) | ||
| Control Computer | Built-in industrial computer, coming with monitor, mouse, and keyboard | ||
| Vacuum System | Built-in vacuum pump | ||
| Vision System | Fly camera :1 megapixel *8(high-speed camera); IC camera:5 megapixels*1 (high-definition/HD camera); Mark camera:1 megapixel*2. | ||
| Transmission System | THK ground ball screw, THK mute linear guide rail, Dual-screw Y-axis driven by motor, X-axis and Y-axis controlled by Panasonic A6 servo motor, flexible S-curve acceleration/deceleration, Z-axis capable of reset-detection. | ||

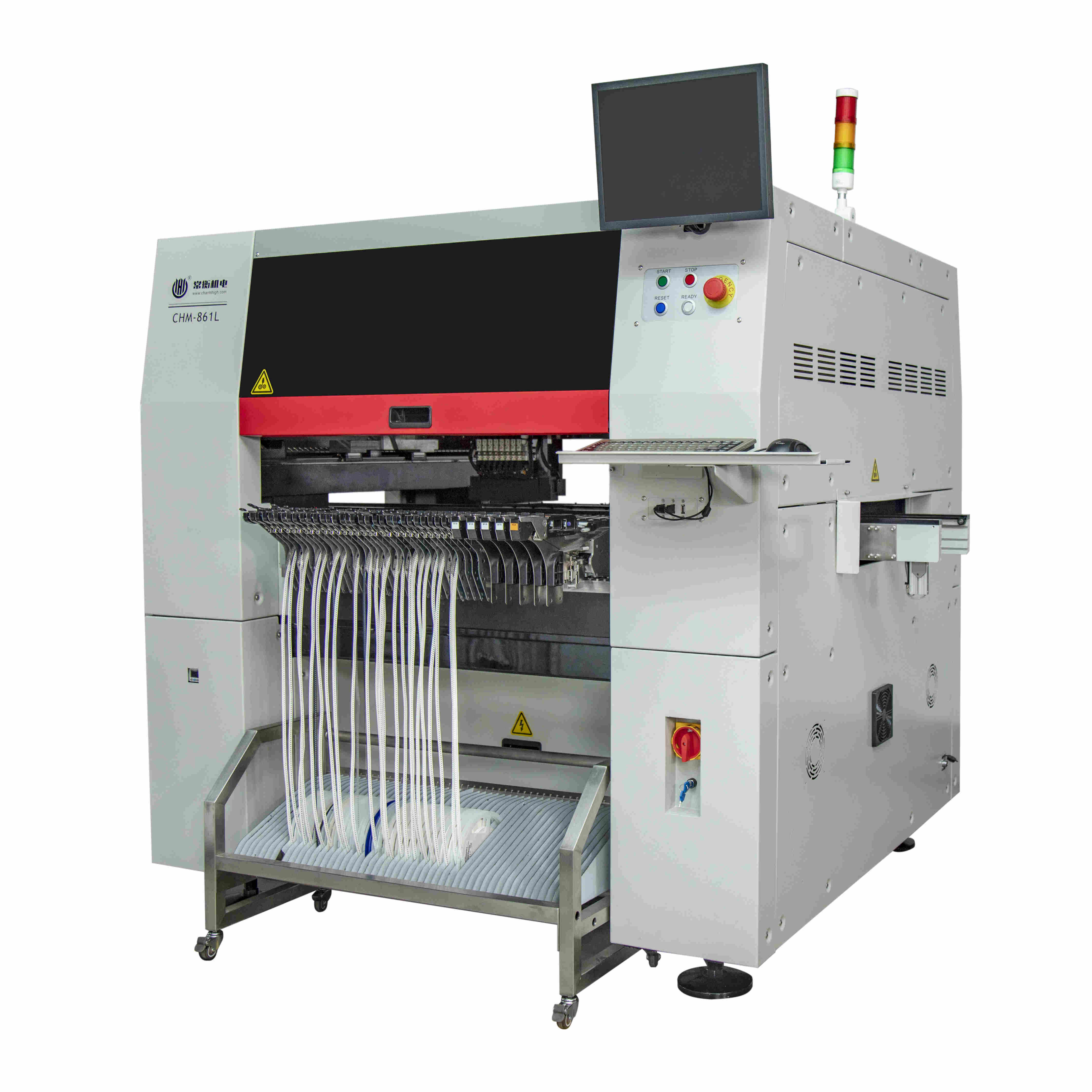

Real photo for CHM-861:

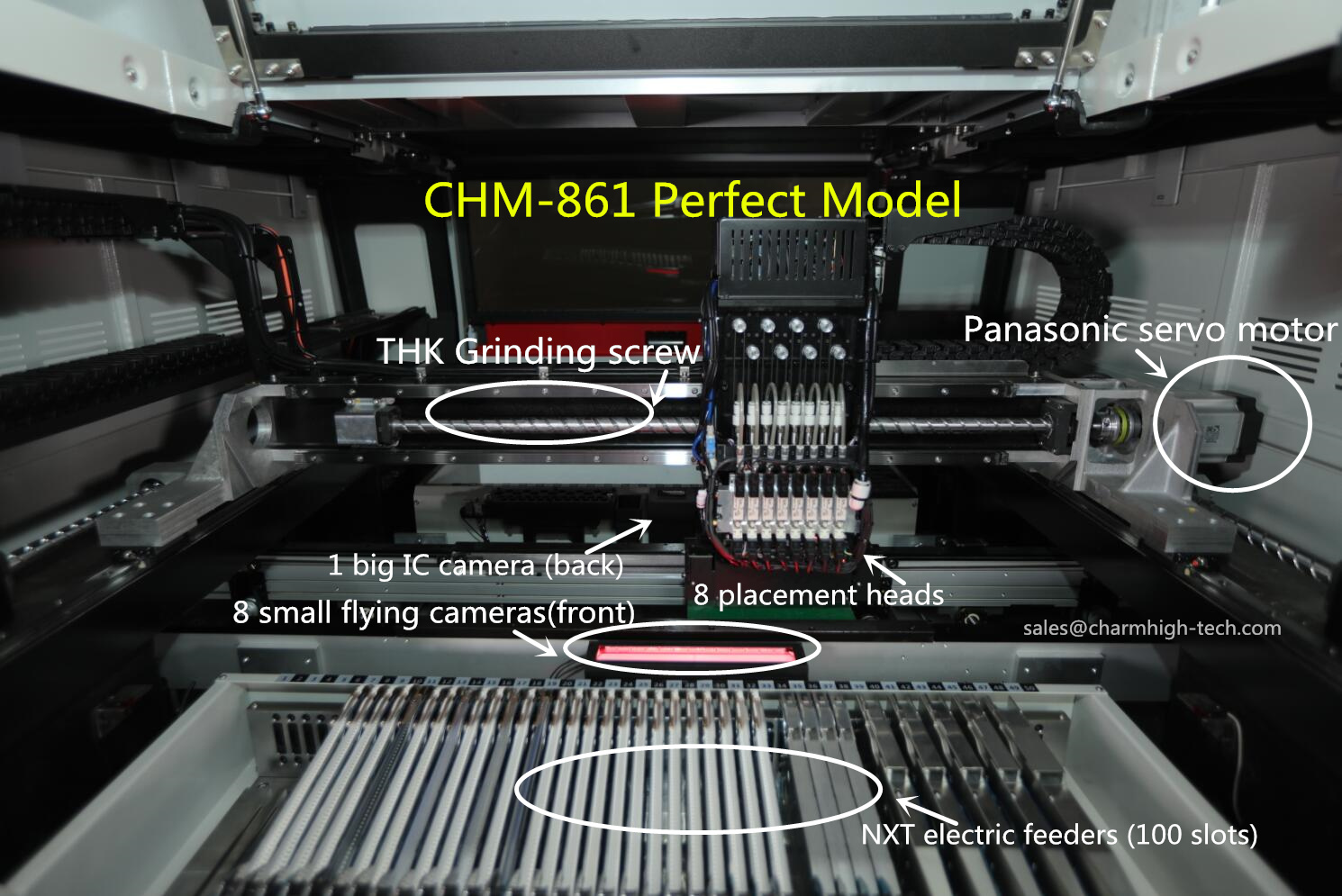

861 machine Inside:

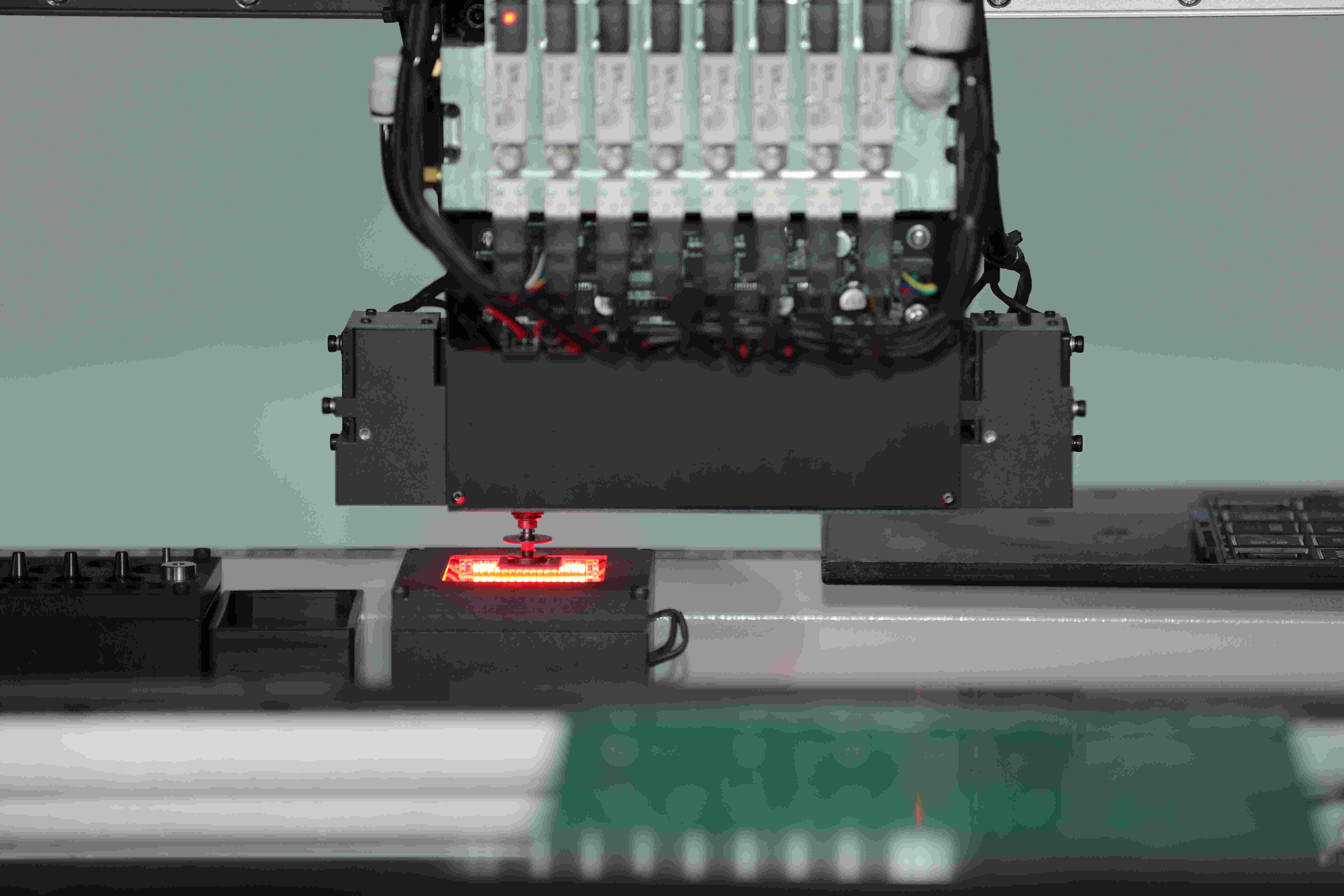

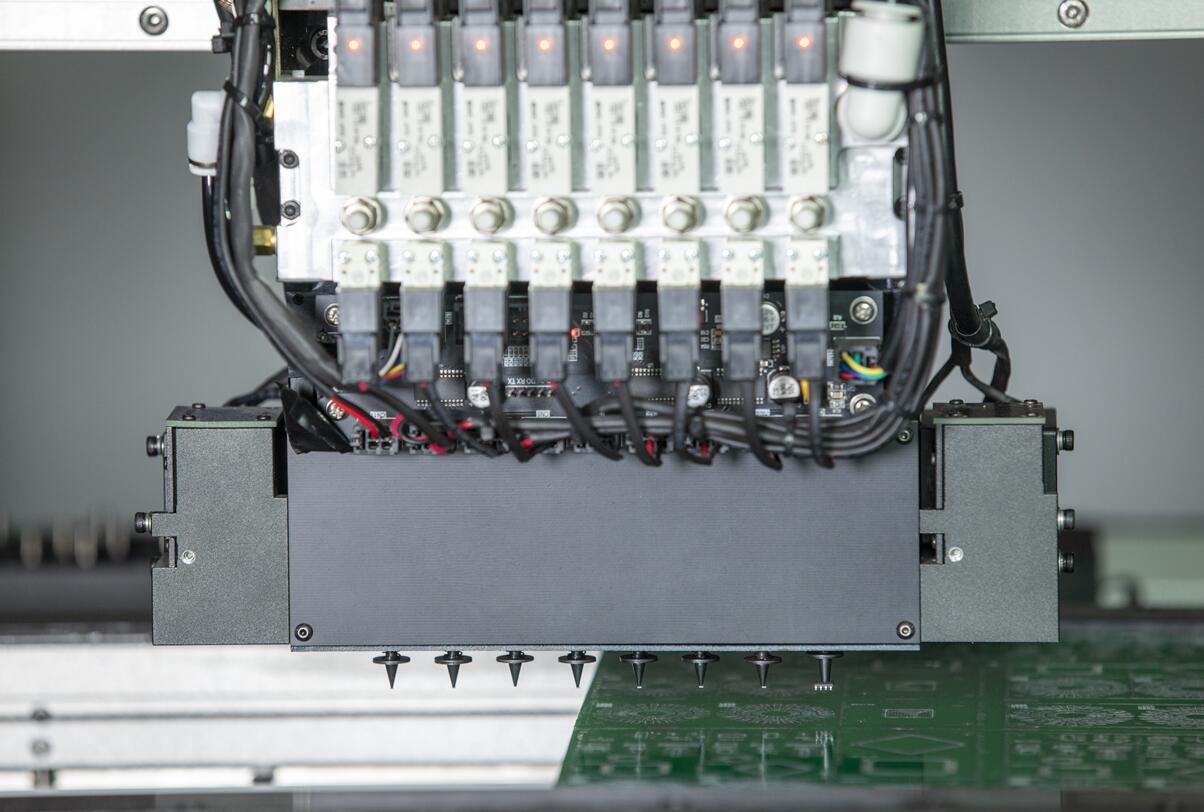

8 placement heads:
100 feeder slots (Work with Fuji NXT electric feeder):
8 front small cameras (for normal components):
1 big IC camera on back side:

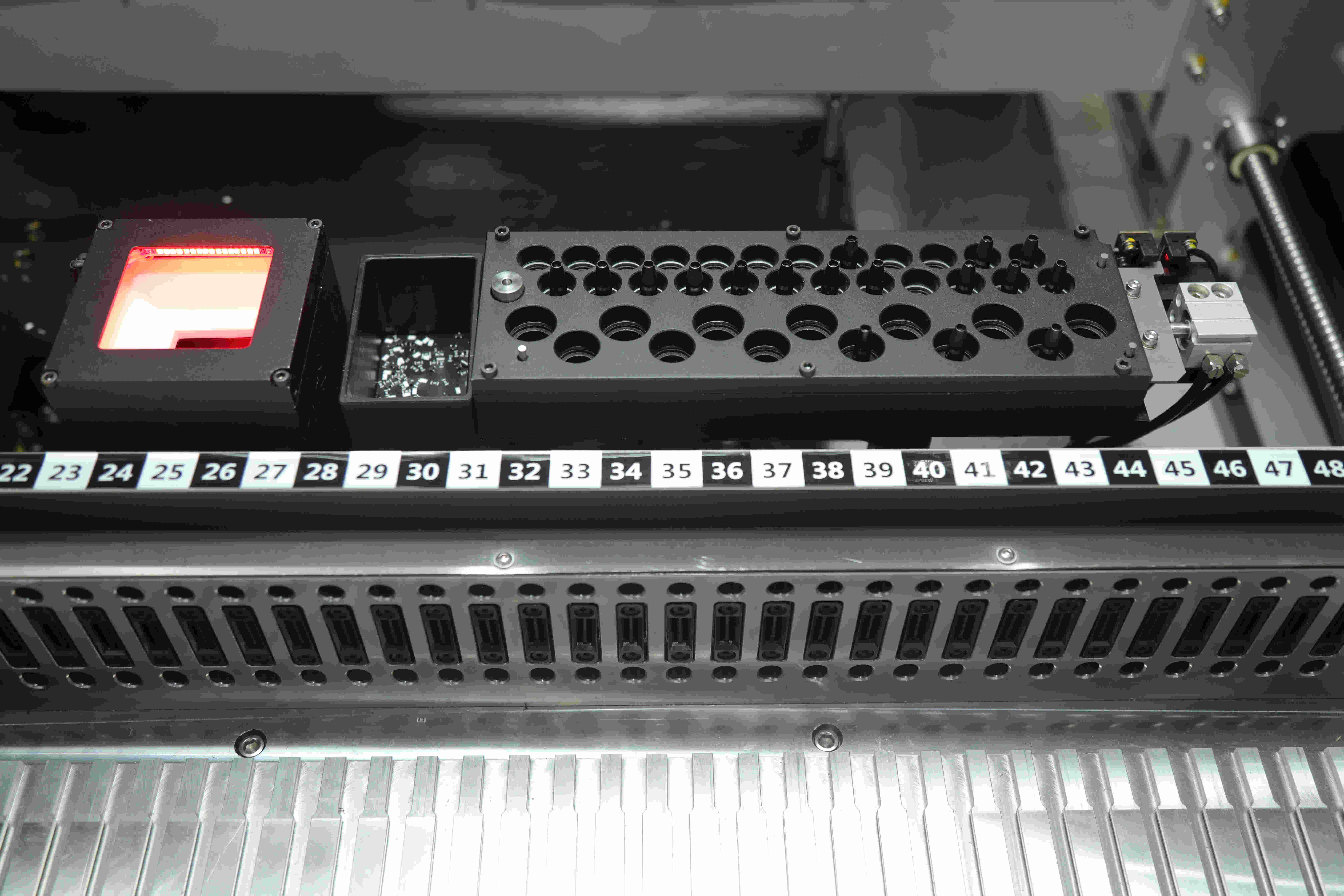

37pcs auto nozzle change library:
3 pieces auto PCB delivery:
Sample:

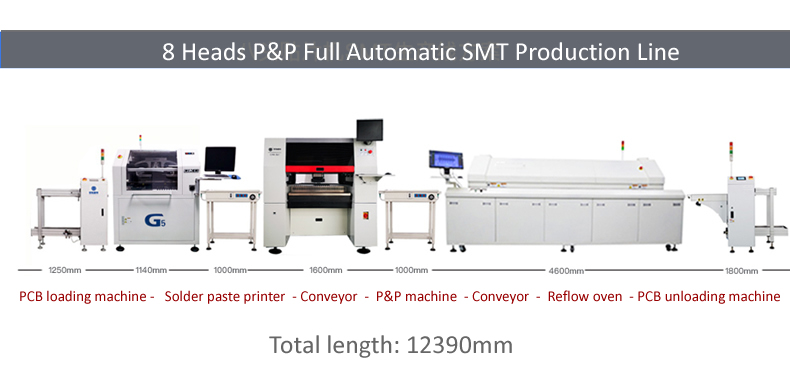

SMT in-line production line:
Charmhigh factory direct supply:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
