| Brand Name : | Charmhigh |
| Model Number : | semi-auto 32130 |
| Certification : | CE |
| Price : | $2700 |
| Payment Terms : | T/T; Western Union |
| Supply Ability : | 200 Per month |
| Delivery Time : | 1-2 days |

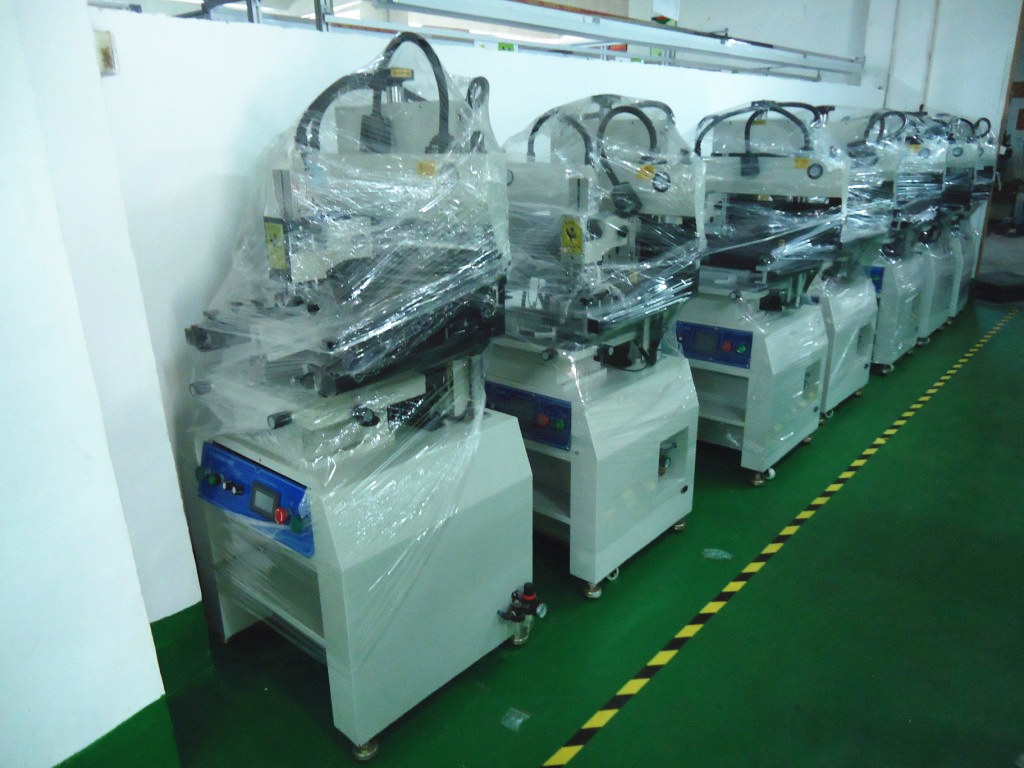

1.2 Meter SMT Semi Automatic Solder Paster Printer For LED, Red
glue
Features:
1. Drive the scraper holder with Korean precision guide rail and stepless speed regulation motor to ensure printing accuracy.
2. The blade holder can be slid back and forth to select the
appropriate printing position.
3. The printing scraper can be rotated upwards by 45 degrees to
facilitate the cleaning and replacement of the printing stencil and
scraper.
4, the school version uses steel mesh to move, combined with
printing (PCB) X, Y, Z. Correcting fine-tuning is quick and easy.
5, using Japanese Panasonic series PLC and touch screen control,
simple, convenient and more suitable for human-machine dialogue
6, can be set one-way and two-way, a variety of printing methods.
(Free number of prints)
7, with automatic counting function, to facilitate the production
of statistical and quantitative production.
8. It has three working states: automatic, semi-automatic and jog.
The jog is mainly convenient for trial printing adjustment at the
beginning. Each action can be adjusted independently.
9. The workbench is equipped with honeycomb aluminum plate, support
bracket and thimble to match the reference hole positioning pin
structure, which is convenient for single and double-sided printing
of PCB boards of different specifications.
10, the blade angle is adjustable, steel scraper, rubber scraper
are suitable.
11. Clean the steel net alarm function, which is convenient for
scrubbing the stencil on time to ensure the printing quality.
12. The floating scraper system makes printing more flexible, and
the scraper can float up and down freely and automatically adjust
to the level of the steel mesh.
13. LED display, light bar, supplier of professional solder paste printing machine for electronics industry.
1.2M Semi-auto solder paster printer:
| Description | CHMT-32130 |
| Dimension (L×W×H) | 1650×620×1550(mm) |
| Worktable size | 320×1300(mm) |
| PCB Size | 250×1250(mm) |
| Apply the template size | 550×1480(mm) |
| Priting speed | 0～8000(mm)/Min |
| PCB thickness | 0～100(mm) |
| PCB slight adjust range | Front/ Side +10mm |
| Voltage | 1PAC220V 50/60HZ |
| Printing platform height | 880(mm) |
| repeated accuracy | ±0.01mm |
| PCB position method | Outside/ Reference hole |
| Weight | 380Kg |
Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct
supply.
We provide online Q/A and troubleshooting support and technical
advice service.
Provide one to one after-sale service. Each machine 100% tested
well before ship out.
