Perfect High Speed SMT Chip Mounter Charmhigh CHM-861
8 Heads 100 feeders Full Automatic In-line SMT Pick and place Machine
SMT production line - for batch production
1. Model number: CHM-861
2. Brand: Charmhigh
3. Main configuration: Vertical type + PCB auto delivery + 8 Heads
100 feeders + Panasonic servo motor + nozzle changer + 11 cameras +
THK Grinding screw
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (3 options): 450*380mm / 600*380mm / 1200*380mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.
8. 1600 (L) * 1430 (W) * 1530 (H)mm, AC380V (50/60Hz, three phase)
9. Lead time: 3-5 working days
10. Delivery: by air / by sea / pick up from our factory directly /
send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box
Video: CHM-861 introduction:
www.youtube.com/watch?v=kFchN0IbqJE&t=3s
Video: CHM-861 real working video with capacitors and resistors & IC:
www.youtube.com/watch?v=fuU9Me0ENa8
Video : CHM-861 placing 0201 with NXT electric feeder:
www.youtube.com/watch?v=8Af6YTx_t3M&feature=youtu.be
Charmhigh CHM-861:
| Dimension | 1600mm(L) x 1430mm(W) x 1530mm(H) |
| Net weight | 1600Kg |
| Voltage | AC380V(50Hz/60Hz) 3 phase |
| Power | 4.5KW |
| Air compressor | 0.5~0.7 M pa |
| Head | 8pcs(go down to pick up at the same time) |
| Components supported | Capacitor & Resistor (0402~18mmx18mm), SOT, SOP, QFN, QFP, LED, BGA... |
| Nozzle | Samsung nozzle |
| Nozzle library | 37 position (nozzle auto change) |
| Feeder slot | 100pcs slots (8mm) |
| Feeder type | FUJI NXT electric feeder |
| PCB delivery | 3 pieces auto delivery |
| PCB support | Roof platform, thimble |
| X, Y1, Y2 axis | Panasonic servo motor, THK Screw rod and guide rail |
| IC camera | Five million pixels, component max range 35mmx35mm |
| Flying camera | One million pixels x 8pcs (high speed), component max range 18mmx18mm |
| MARK camera | One million pixels x 2 cameras |
| Placement precision | Chip: ±50μm /3σ (CPK≥1.0); QFP: ±40μm /3σ(CPK≥1.0) |
| Optimal speed | 30000 CPH |
| Max component height | 12mm |
| PCB thickness | 0.6~3.5mm |
| PCB Size | Min: 50mm(L) x50mm(W) ~ Max: 450 (L)*380 (W) / 600*380mm/ 1200*380mm (3 options) |
Real photo for CHM-861:
861 machine Inside:
8 placement heads:
100 feeder slots (Work with Fuji NXT electric feeder):

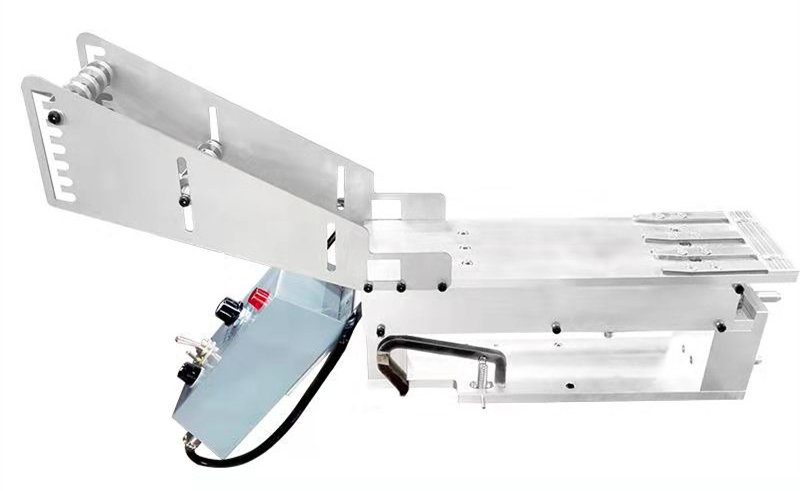

Vibration feeder:
8 front small cameras (for normal components):
1 big IC camera on back side:
37pcs auto nozzle change library:
3 pieces auto PCB delivery:
Exhibition show:

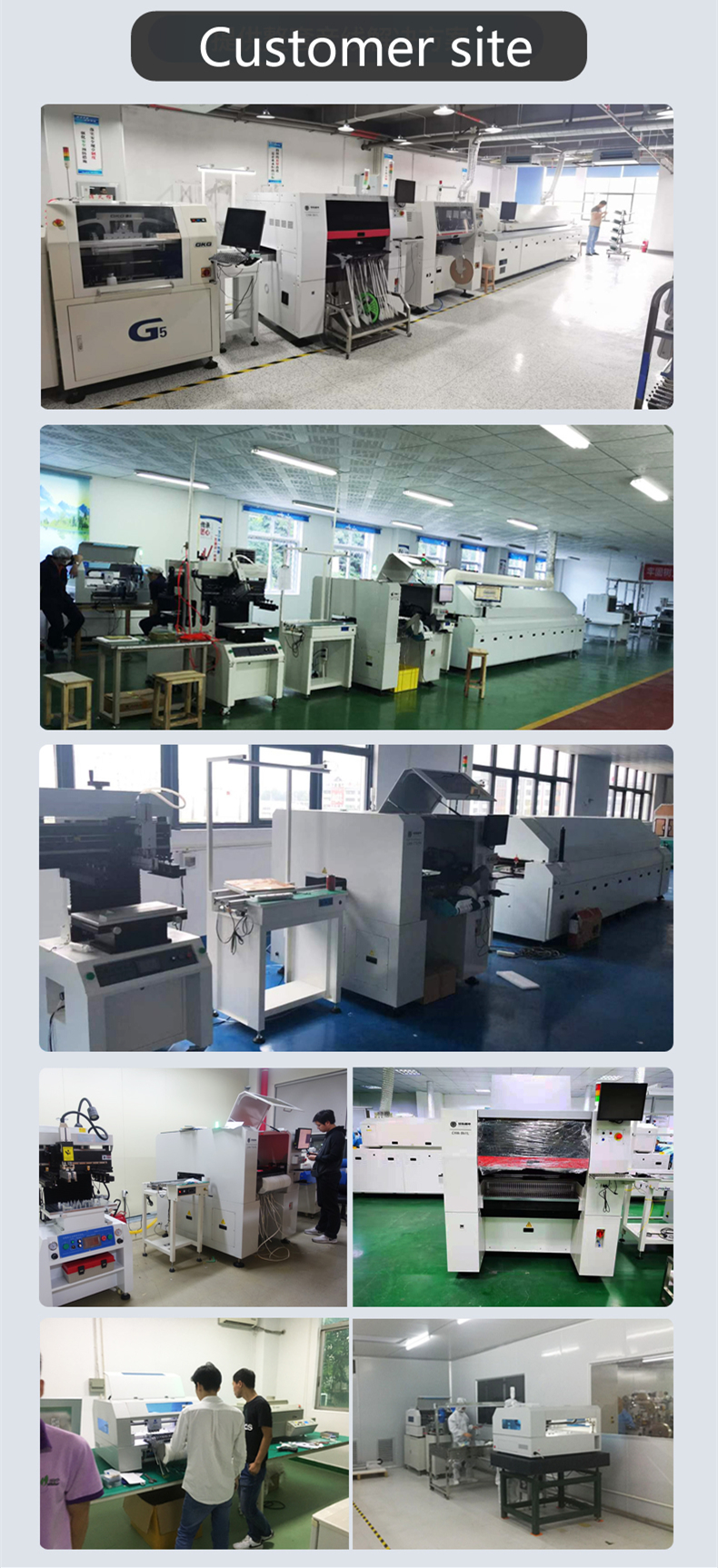

SMT in-line production line:
Samples:
Charmhigh factory direct supply:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
