Hihg accuracy & Ecnomic 4 heads 50 Feeders SMT pick and place Machine 220V/ 110V
CHM-550 SMT Pick and Place Machine with base, good for SMT Batch production, PCB design
working with universal Yamaha feeders (pneumatic feeders & electric feeders working together)
Highlight (Model: CHM-550):
Auto nozzle change, no need manual change nozzle
0201 support, with perfect performance! Super good accuracy.
Working video on Youtube:
4 Heads Desktop SMT Pick Place Machine CHM-550 production:
https://www.youtube.com/shorts/dP1kel83B7E
CHM-550 work with Yamaha pneumatic feeder& electric feeder:
https://youtu.be/Nmt3wSvmE50
| Charmhigh CHM-550 Specifications | |
| Dimensions | 980(L)x1050(W)x880mm(H) |
| Weight | 190kg |
| Power Supply | AC220V (50Hz, single phase), 2.1kW |
| Air Supply | 0.5MPa ~ 0.6MPa |
| Vacuum Generation | Japan PISCO vacuum generator |
| Mounting Head | 4 Heads |
| Mounting Speed | 6000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)x300mm(W) |
| PCB Delivery | Manually |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |

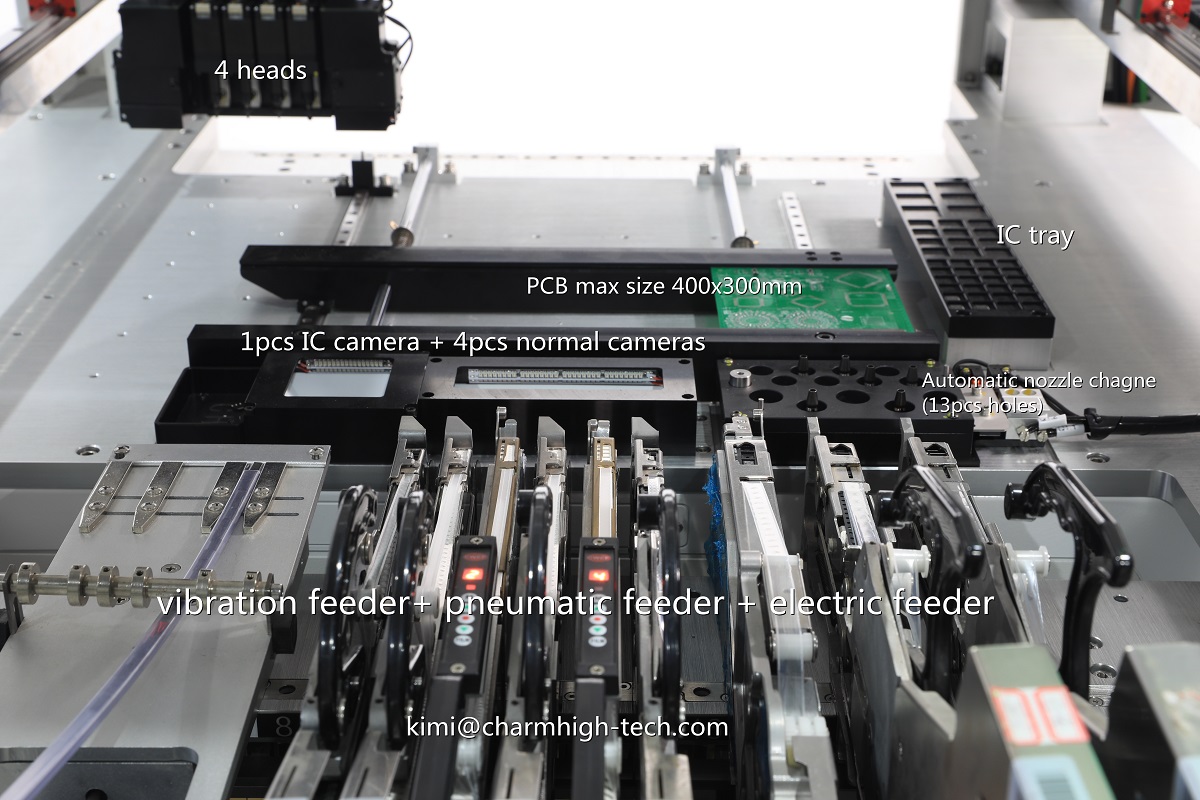

| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder slots (also suitable for IC tray + stick/tube/vibration feeder) |
| Vision System | Snapshot camera x 4 (component size applicable: 14mmx14mm); IC camera x 1 (component size applicable: 25mmx25mm); Mark camera x 2 |

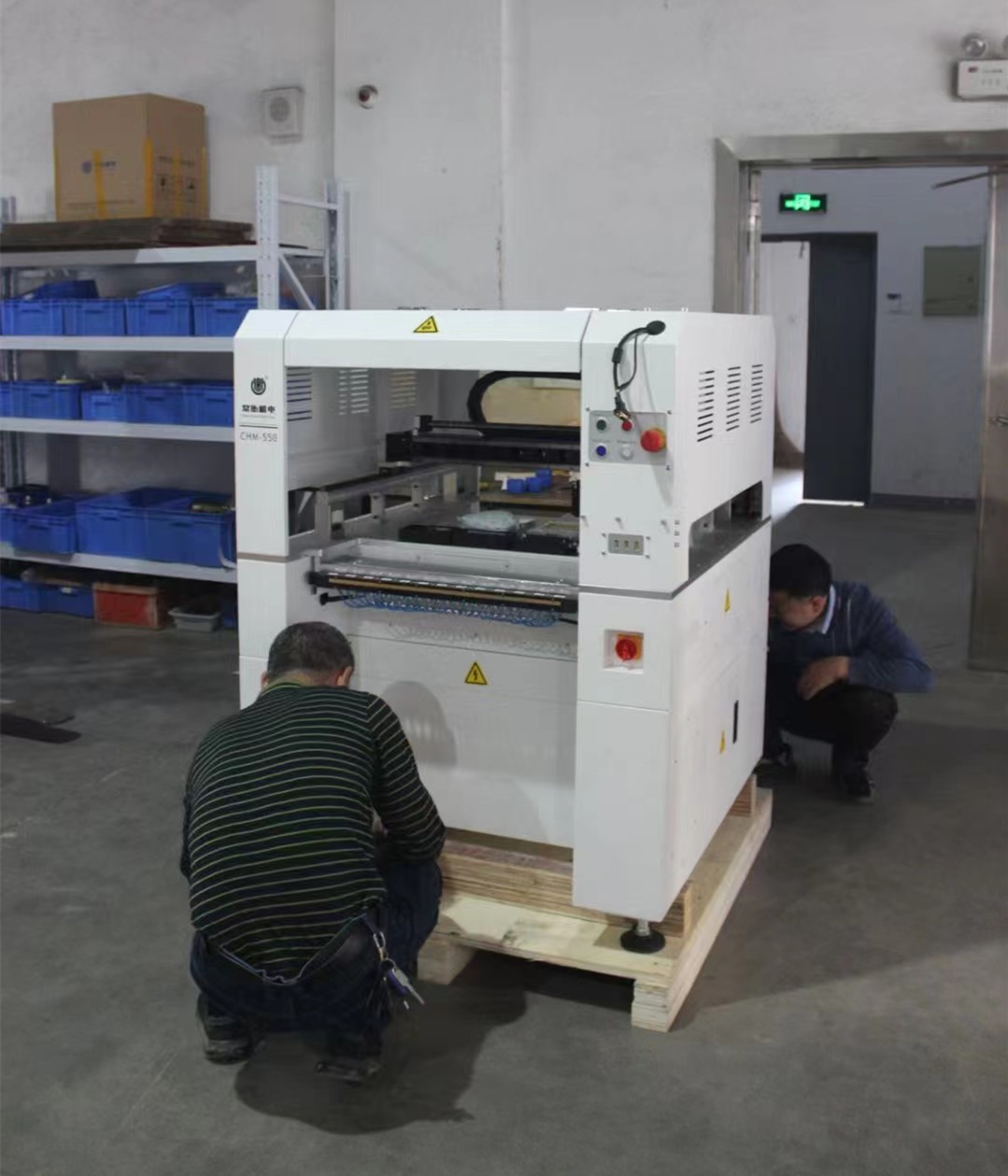

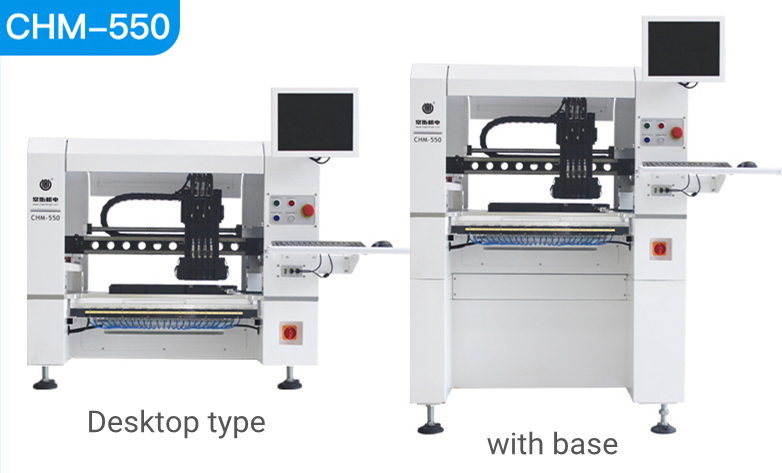

CHM-550 with base, you can choose a deskotp one or a vertical one:
Working with universal standard Yamaha Feeders(purcahse separately):
Option:
1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder
3. Vibration feeder
Advantages:
1. Auto nozzle exchange, you don't need to change nozzle manually, very convenient!
2. Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.
3. High configuration with smart software, longer lifespan, Charmhigh provide strong mechanical part, better than other brands in China
Customer feedback:
Professional packing:
Charmhigh, top Chiense brand.
Quality assurance, excellent after-sell services.

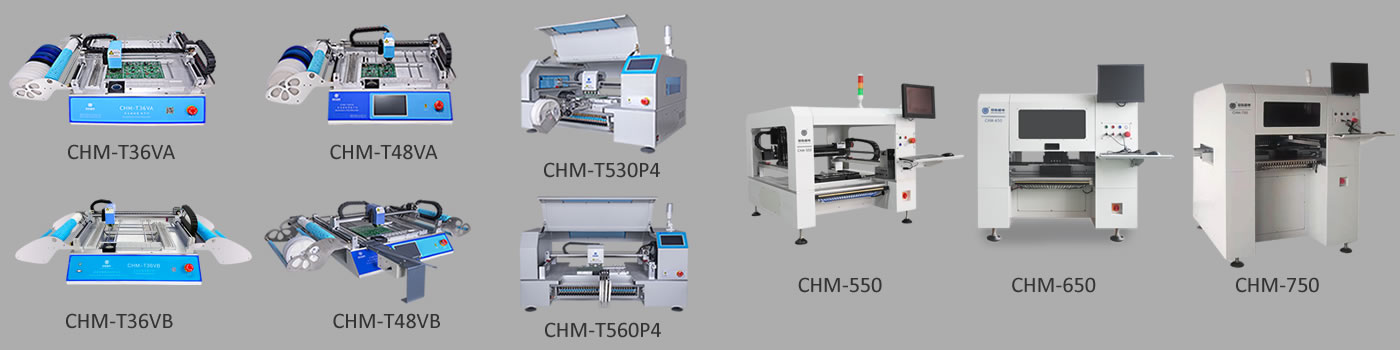

Our pick and place robots:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply
with guarantee.
We provide online Q/A and troubleshooting support and technical
advice service.
We provide one to one after-sale service. Each machine 100% tested
well before ship out.
