High precision genius model 4 Heads Desktop SMT SMD Pick Place
Machine With 50 Feeders CHM-551
Model: CHM-551 highlights:
* 4 Placement Heads with automatic nozzle changer(13-hole nozzle
library)
* Support 50pcs Yamaha pneumatic feeders & electric feeders
* Higher configuration with high accuracy, 0201 supported, CPK test
CPK≥1.0
* Automatic PCB conveyor, you can build a small & medium SMT
production line
* Ball screw & servo motors
* Optimal speed:11500CPH; IPC9850:8850CPH
* Double mark cameras, good for bigger PCB boards
* Thermal Compensation, suitable for different temperature
* Comes with computer (monitor, Keyboard, USB mouse)
CHM-551 catalog download from: CHM-551 -
Catalog.pdf
| Charmhigh CHM-551 Specifications |
| Dimensions | 1050(L)x1050(W)x885mm(H) |
| Weight | 230kg |
| Power Supply | AC220V (50Hz, single phase), 2.2kW |
| Air Supply | 0.5MPa ~ 0.6MPa |
| Vacuum Generation | Japan PISCO vacuum generator |
| Mounting Head | 4 Heads |
| Mounting Speed | IPC9850: 8850cph (real speed) |
| Mounting Accuracy | (XY) ±0.06mm; CPK≥1.0 |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) |
| PCB Delivery | PCB automatic conveyor |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve
acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder slots (also suitable for IC tray + stick/tube/vibration feeder) |
| Vision System | Snapshot camera x 4 (component size applicable: 14mmx14mm); IC camera x 1 (component size applicable: 36mmx36mm); Mark camera x 2 |
Application Of SMT Mounting Machine
1. Household appliances industry
2. Auto electronics industry
3. Power industry
4. LED industry
5. security,instruments and meters industry
6. communications industry
7. intelligent control industry
8. Internet of Things(IOT) industry and military industry, etc.
CHM-551 Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1
|
Highlight:
1. Auto nozzle exchange, you don't need to change nozzle manually,
very convenient!
2. Strong vision camera system, higher accurate, IC placecd more
accurate, and min component 0201:
3. High configuration, long lifespan, Charmhigh provided strong
mechanical than other brands.
Working with universal standard Yamaha Feeders:
Option:
1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder
3. Vibration feeder

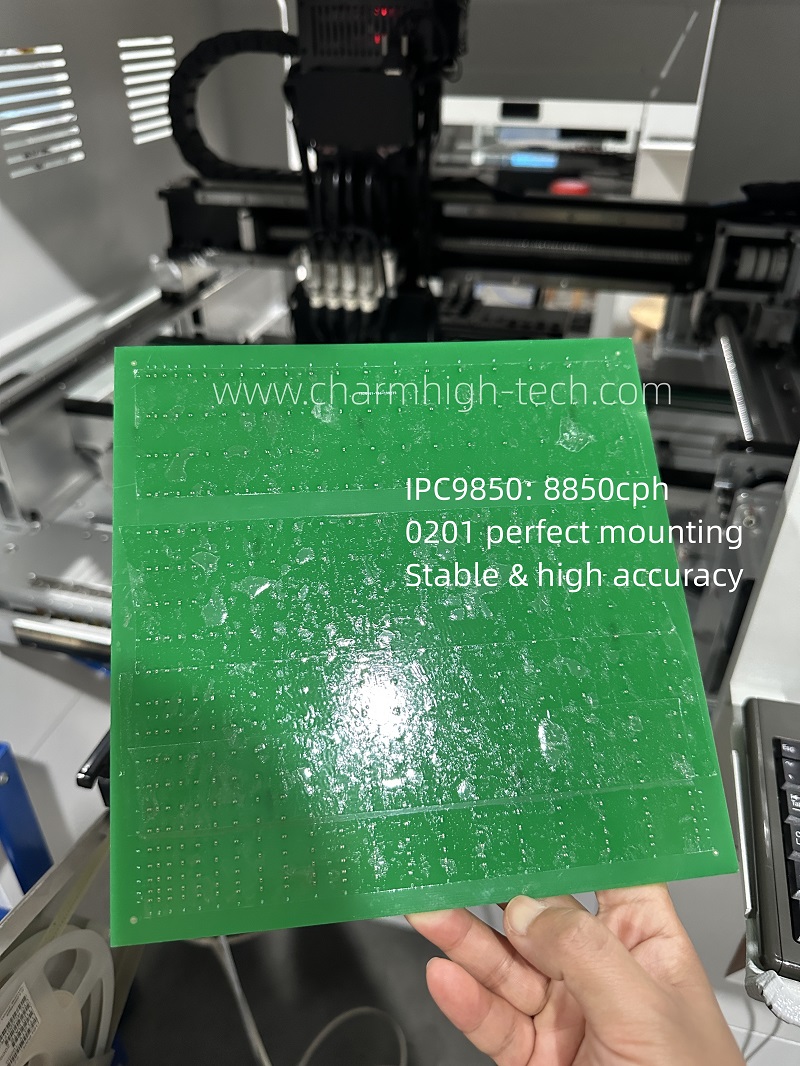

Customer feedback, PCB samples:
Suitable for complex PCB:
Charmhigh SMT, factory supply, prompt delviery:
100% high feedback from customers:
Please note:
The pick and place machine is complete set with all accessories
included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor
(supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!
Service & Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply
with guarantee.
We provide online Q/A and troubleshooting support and technical
advice service.
We provide one to one after-sale service. Each machine 100% tested
well before ship out.
