| Ask Lasest Price | |
| Brand Name : | Charmhigh |
| Model Number : | CHM-750 (6 heads + 50 feeders) |
| Certification : | CE |
| Price : | $14000 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100 per month |
| Delivery Time : | 3-5 working days |

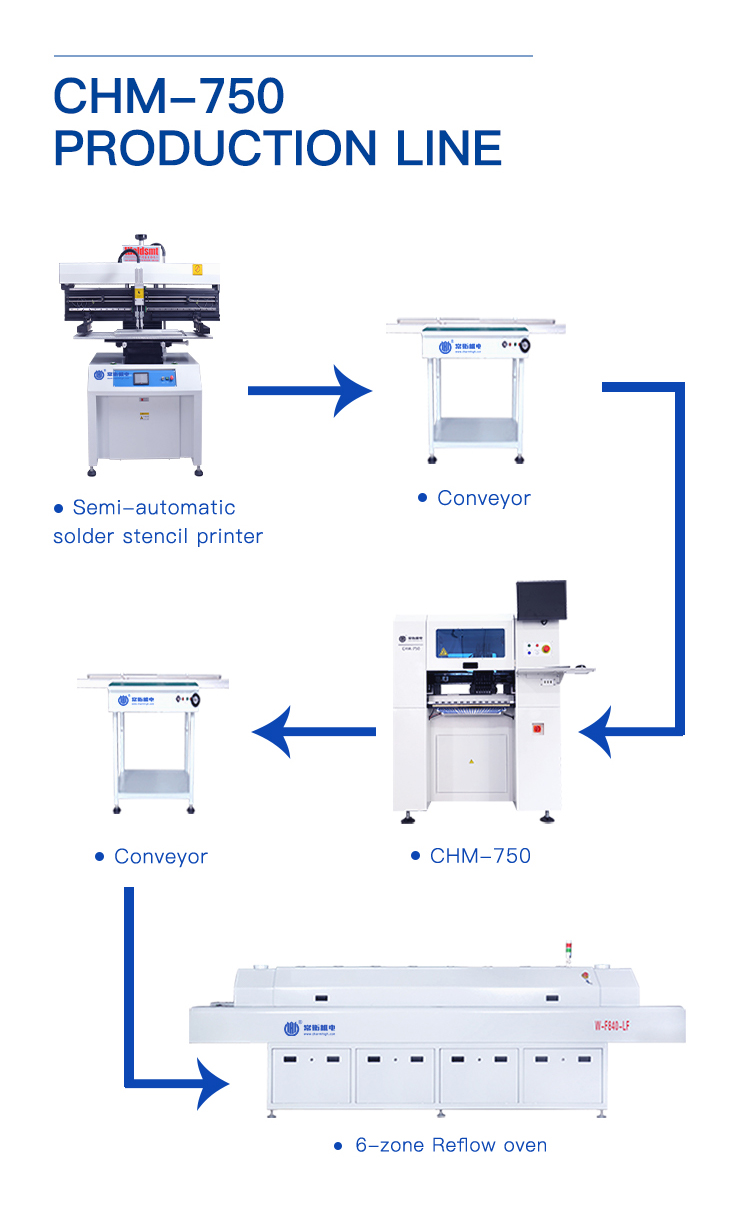

6 Heads 50 Feeders Deskop SMT Chip Mounter Ball Screw SMD Pick and Place Machine
CHM-750 PCB Conveyor Flying Camera, With New Smart Software
1. Model number: CHM-750
2. Main configuration: PCB auto delivery + 6 Heads 50 feeders +
flying camera +ball screw
3. Feeder: 2 options: Yamaha pneumatic feeder / Electric feeder
(purchase separately)
4. Max PCB area: 400*350mm
5. Comes with computer & keyboard & mouse with Windows 7 system
6. Component: 0402-5050, SOP, QFN, TQFP, BGA... etc.
7. Lead time: 3-5 working days
8. Delivery: by express/ by air or sea / pick up from our factory
directly / send to China warehouse
9. Payment method: wire transfer (T/T)
10. Packing: plywood box
CHM-750 specifications:
| Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
| Weight | 520kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |
| Mounting Head Quantity | 6 heads |
| Mounting Speed | 17000cph (optimal) IPC9850: 12000CPH |
| Mounting Accuracy | ±60μm CPK≥1.0 (X Y) |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)x350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide (Y axis with double screws) |
| Feeding System | 50 pcs Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax6 (component size applicable: 16mmx16mm); IC camerax1 (component size applicable: 36mmx36mm); Mark camera x 2 |
Yamaha pneumatic feeder& electric feeder both compatible:
Option: 8mm, 12mm, 16mm, 24mm, vibration feeder (purchase separately)
Service & Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct
supply.
We provide online Q/A and troubleshooting support and technical
advice service.
Provide one to one after-sale service. Each machine 100% tested
well before ship out.
