Top Configration high precision Charmhigh 6 Heads 60 feeders SMT Pick and Place Machine TM06

Full automatci In-line SMT Pick and place Machine with PCB conveyor
PCB assembly line, good for mass production, full-automatic medium SMT assemblly line

1. Model number: TM06
2. Brand: Charmhigh
3. Main configuration: Automatic 3 pieces PCB auto delivery + 6 Heads 60 feeders + Panasonic servo motor
+ auto nozzle changer(19 positions) + 9 cameras + THK Grinding screw + double Y axis
4. Feeder: Fuji Electric feeder (purchase separately)
5. PCB area (2 options): 450*350mm / 900*350mm
6. Comes with computer & keyboard & mouse with Windows system
7. Component: 01005, 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.
8. Dimension: 1320mm(L)×1600mm(W)×1500mm(H), AC220V/110V (50/60Hz, 1 phase)
9. Lead time: 4-6 working days
10. Delivery: by air / by sea / pick up from our factory directly / send to China warehouse
11. Payment method: wire transfer (T/T)
12. Packing: plywood box

This is TM06, a high-end pick and place machine of Charmhigh.
It is characterized by 60 feeder stacks, good compatibility with NXT electric feeders and stick feeders which could support tubular components.
6 heads capable of mounting simultaneously and changing suction nozzles automatically, three-section automatic conveyor belt, high speed motion control system and vision technology applied to take photos of moving components independently researched and developed by Charmhigh itself.
If you need a high configuration pick and place machine with reasonable price for the medium to large sized setups, TM06 is a best choice.

TM06 specification:

Real pictures for TM06:

60 feeder slots (Work with Fuji NXT electric feeder, feeders purcahse separately, 8/12/16/24/32/44mm):

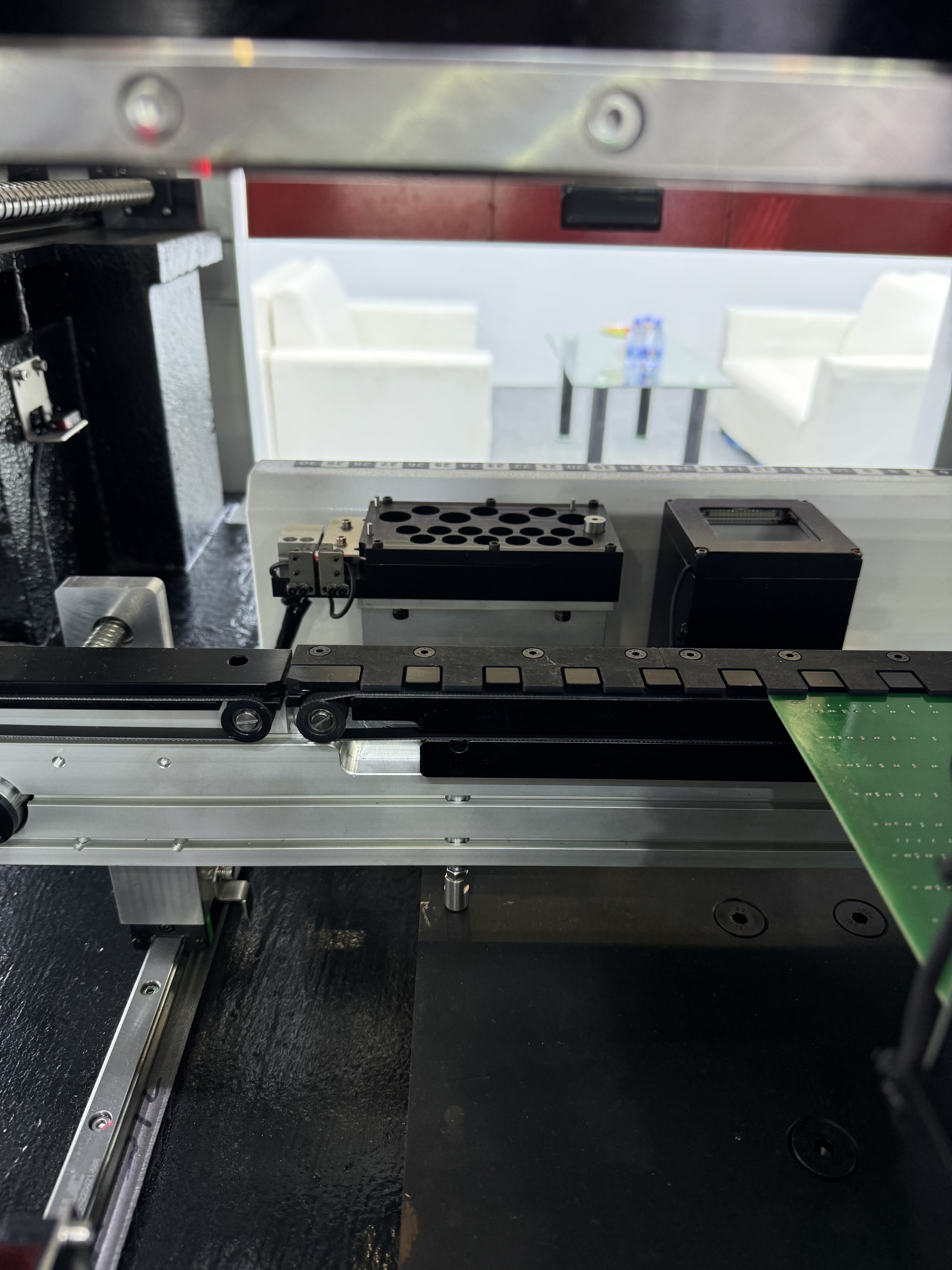

6 heads with automatic nozzle change, one big high precision IC camera, two mark cameras,

6 flying cameras for normal components. 3 pieces automatic PCB conveyor.


Double Y axis with double servo motor, more stable and higher precision.


PCB Samples:
(We also use our own full-automatic SMT line to produce the PCB for the parts of our machines)

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: https://www.youtube.com/@KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.
About Us:
Charmhigh is the well-known manufacturer of high-end SMT equipment in China.
The company is located in the Changsha High-tech Development Zone,
covering a total area of 3600 square meters.
As a professional modern science and technology enterprise capable of both R&D,
production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
Different series of multi-head full-automatic SMT machines have been developed and manufactured by Charmhigh to meet various practical production needs.
In accordance with the business philosophy of "Customer First, Innovation Paramount",
Charmhigh has won the hearts of thousands of customers all over the world.
Charmhigh factory direct supply, with good support and strong guarantee.

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
