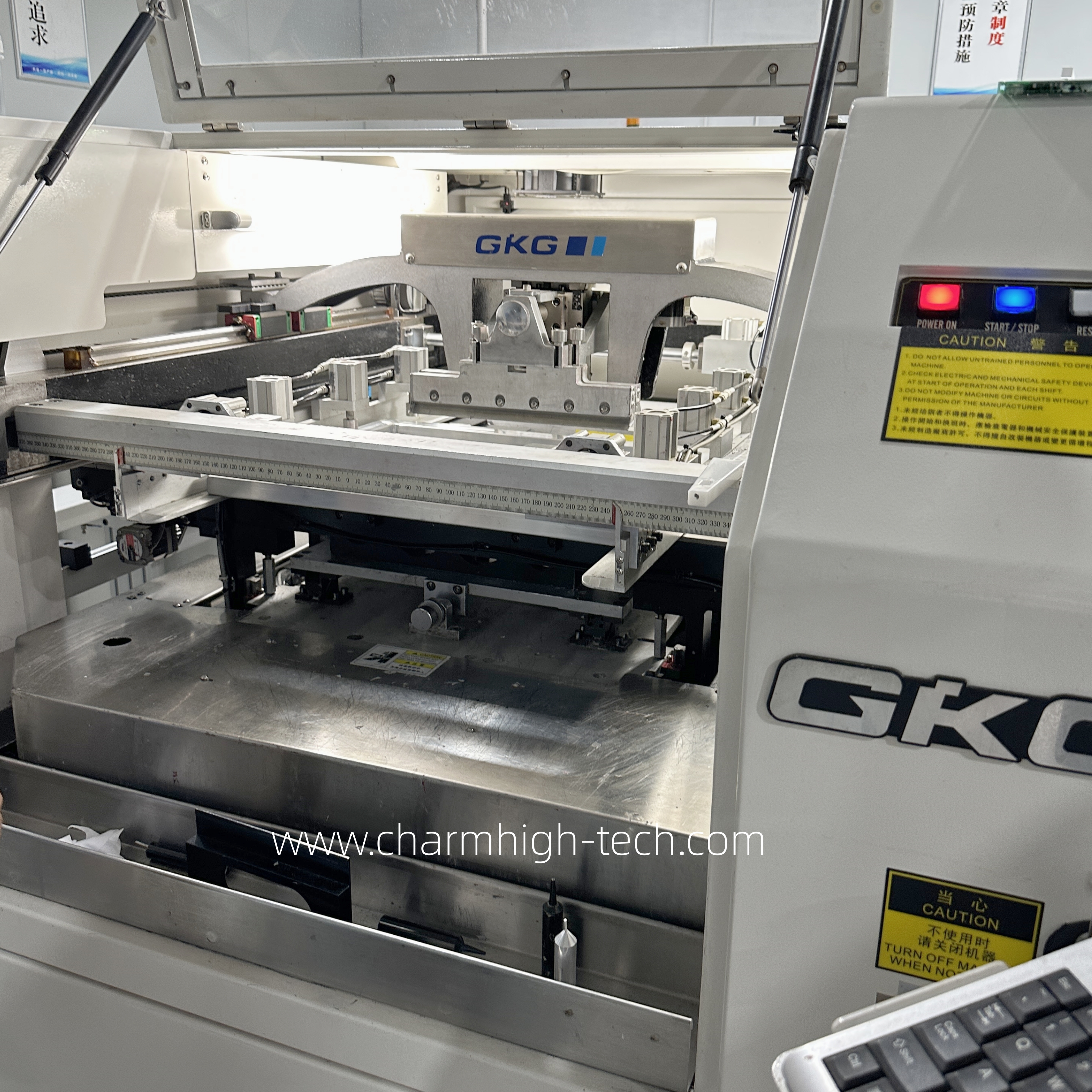

High Precision GKG G5 Fully Automatic Solder Paste Printer SMT Stencil Printer Screen Printing Machine for SMT Assembly Line
Description
GKG G5 model is a classic model with high accuracy and high stability. G5 is high accuracy and high stability of the fully automatic printing machine vision, GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Charmhigh factory real production video:
https://www.youtube.com/watch?v=l04x5KHfyMQ
| Repeat Position Accuracy | ±0.01mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time/ Printing speed | <7.5s (Exclude Printing & Cleaning); <19s(Included Printing & Cleaning) |
| Product Changeover | Old Process:<3mins New Process set up :<5mins |
| Air supply | 4-6kgf/cm² |
| Power supply | AC:220±10%,50/60HZ,2.5KW |
| Control Method | PC Control |
| Operating system | Windows XP/Win7 |
| Machine Dimensions | 1146(L)*1364(W)*1404(H)mm |
| Weight | Approx 900KG |
| Screen Frames | Min size | 370*370mm | |
| Max size | 737*737mm | ||
| Thickness | 20-40mm(Steel mesh aluminum frame height) | ||
| PCB Max size | 400*340mm | ||
| PCB Min size | 50*50mm | ||
| PCB Thickness | 0.4-6mm | ||
| PCB Warpage | Max.PCB diagonal 1% | ||
| Transport Height | 900±40mm | ||
| Transport Direction | L-R/R-L/L-L/R-R | ||
| Transport Speed | 1500mm/s(Max).Program Control | ||
| Transport Height | One stage | ||
| Conveyor Width adjustment | Automatic | ||
| I/O Interface | SMEMA | ||
| PCB Location | Support System | Magnetic PIN/Support Block/Manual UP-Down table | |
| Clamping System | Patented over the top clamping /side clamping | ||
| Print head | Two independent motorised print heads | ||
| Squeegee Pressure | 0.5-10KG(Program Control) | ||
| Print Speed | 6-200mm/sec | ||
| Print Mode | One/Twice Print | ||
| Squeegee Type | Rubber/Steel Squeegee Blade(Angle 45°/55°/60°) | ||
| Cleaning System | reinforced vacuum absorption,dry,dry,vacuum three modes | ||
| CCD FOV | 8*6mm | ||
| Adjustment | X:±3mm,Y:±7mm ,θ:±2° | ||
| Vision | Look Up/Down Option Structure/CCD/Geometry Pattern-match | ||
