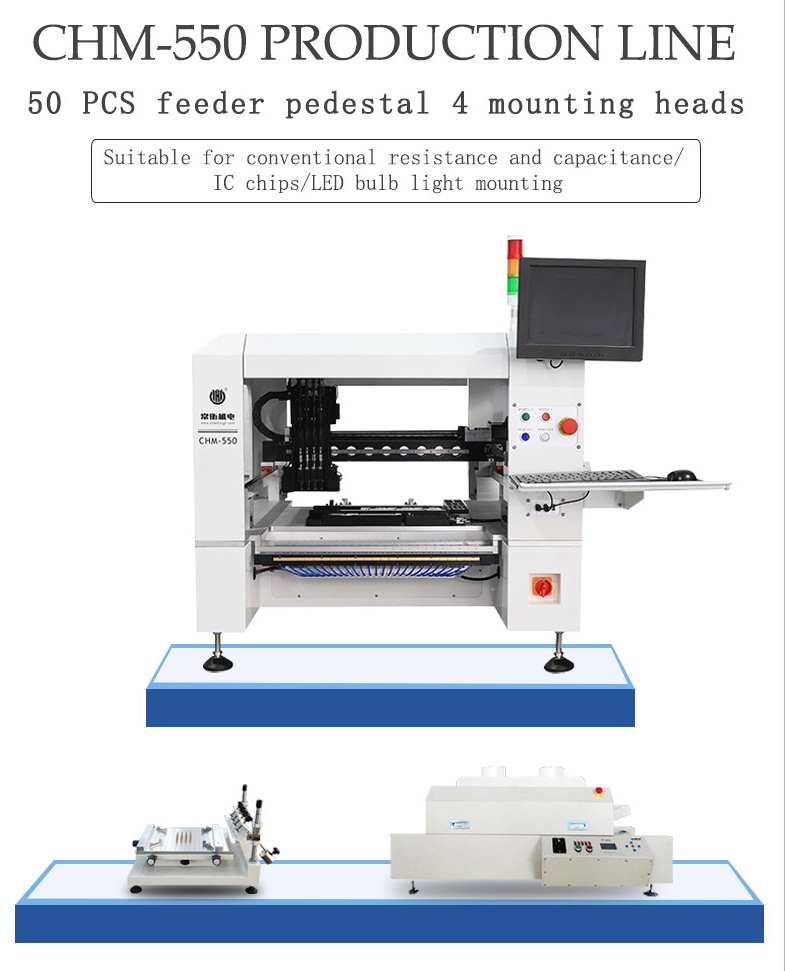

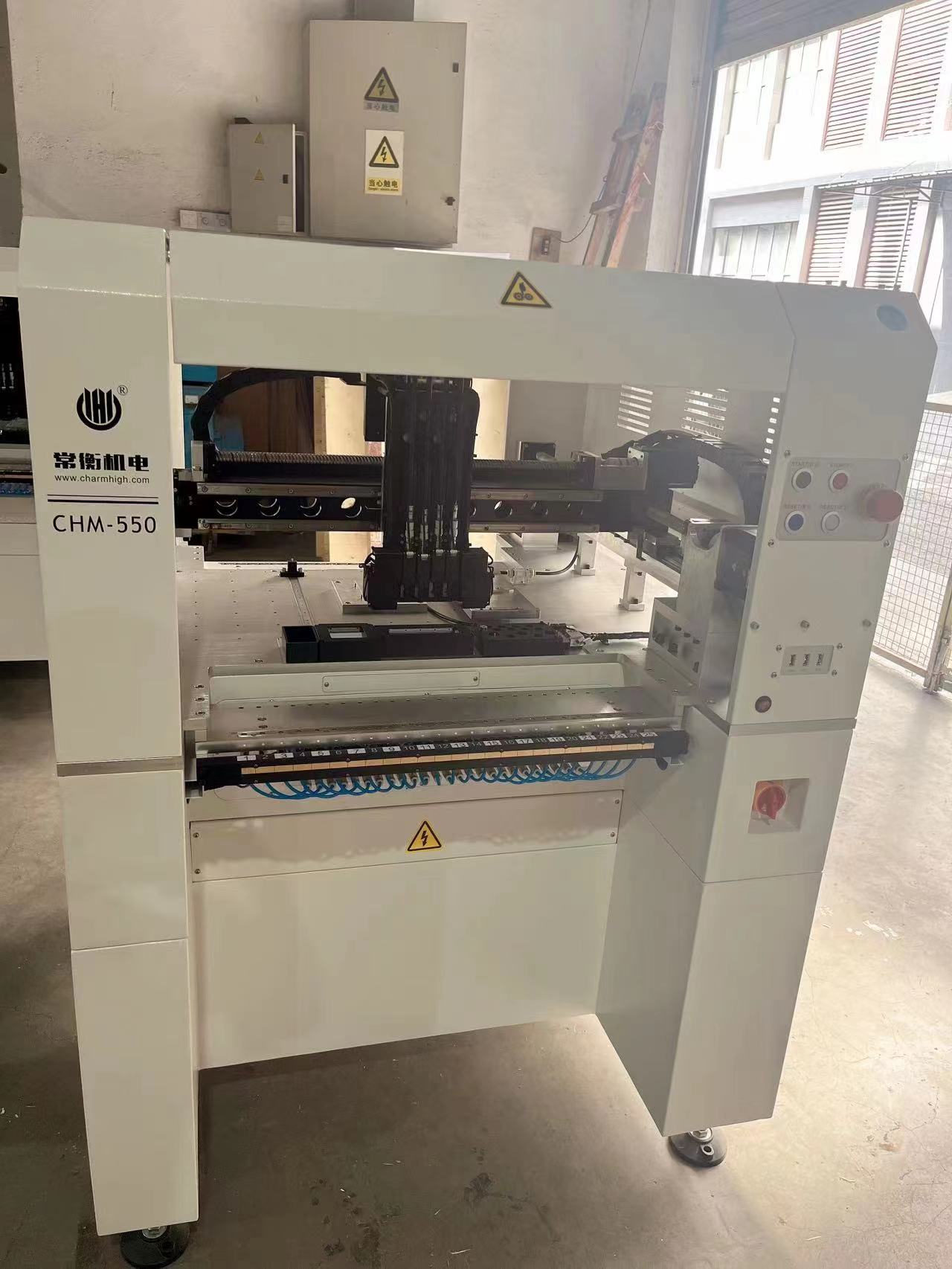

Charmhigh CHM-550 (with base): A Robotic SMT Pick and Place Machine
with 4 Heads 50 Feeders
High accuracy, support CPK test.
Description:
CHM-550 is a desktop SMT pick and place machine with 4 heads and 50
feeders (It can be installed the base). It can handle components
from 0201 to SOP, QFN, BGA and more. It features auto nozzle
change, ball screw drive, dual cameras and closed-loop control.
CHM-550 is a high accuracy and economic solution for SMT assembly
and PCB design. It works with universal Yamaha feeders (pneumatic
feeders & electric feeders working together). CHM-550 is
manufactured by Charmhigh, a professional SMT pick and place
machine and SMT production line manufacturer in China.
Catalog for CHM-550 download from here:
CHM-550.pdf
Model: CHM-550
* 4 Placement Heads with auto nozzle changer
* Support 50pcs Yamaha pneumatic& electric feeders
* Higher configuration with high accuracy, 0201 supported
* Comes with computer (monitor, Keyboard, USB mouse)
| Charmhigh CHM-550 Specifications | |
| Dimensions | 980(L)x1050(W)x880mm(H) |
| Weight | 190kg |
| Power Supply | AC220V (50Hz, single phase), 2.1kW |
| Air Supply | 0.5MPa ~ 0.6MPa |
| Vacuum Generation | Japan PISCO vacuum generator |
| Mounting Head | 4 Heads |
| Mounting Speed | 6000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)x300mm(W) |
| PCB Delivery | Manually |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows system) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder slots (also suitable for IC tray + stick/tube/vibration feeder) |
| Vision System | Snapshot camera x 4 (component size applicable: 14mmx14mm); IC camera x 1 (component size applicable: 25mmx25mm); Mark camera x 2 |
Highlight:
1. Auto nozzle exchange, you don't need to change nozzle manually,
full-automatic, very convenient.
2. Strong vision camera system, higher accurate, IC placecd more
accurate, and it can place 0201 with perfect result.
3. High configuration, long lifespan, Charmhigh provide strong
mechanical.
Working with universal standard Yamaha Feeders:
Option:
1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder
3. Vibration feeder
Charmhigh SMT, factory supply, prompt delviery:
Tools & accessories:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply
with guarantee.
We provide online Q/A and troubleshooting support and technical
advice service.
We provide one to one after-sale service. Each machine 100% tested
well before ship out.
Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube: https://www.youtube.com/@KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.
|
|
