Charmhigh (CHMT36VB) SMT Pick and Place robot for smt assembly
Ecnomic Model​, updated from CHMT36VA with high accuracy and high stability
External PC control, windows system, dual side 58 feeders, double vision cameras​,
Good accurate min component 0402, Place largest IC 22*22mm, English language, 220v 110v
CHM-T36VB Desktop Pick And Place Machine Feature
1. Closed-loop control, Step motor with the encoder.
2. PCB size: Max: 345mm(L)x360mm(W) (without tray).
3. External computer required (Windows),
4. With vision system.The smallest component can be attached 0402. The largest: 22x22mm.
5. Feeding System: 58 tape feeding stacks (8mm:44pcs, 12mm:8pcs, 16mm:4pcs, 24mm:2pcs)
6. With HD CCD Camera, accuracyand quick.
7. With 2 pick and place heads
8. Independent research and development system.Permanently enjoy free software upgrade service.
9. One year warranty
Direct buy online from Aliexpress store:
https://www.aliexpress.com/store/1100483886

Direct buy from online store:
https://www.charmhigh-smt.com/
Specifications:

Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

Here is the link for CHMT36VA model:
https://www.charmhigh-tech.com/sale-8099321-chm-t36va-dual-vision-cameras-pc-control-smt-pick-and-place-machine-chmt36va.html

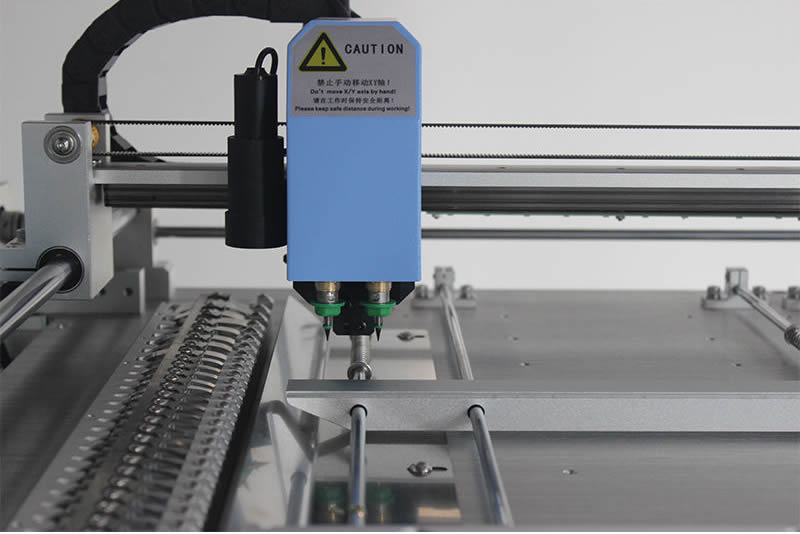

100% real pictures for CHMT36VB:

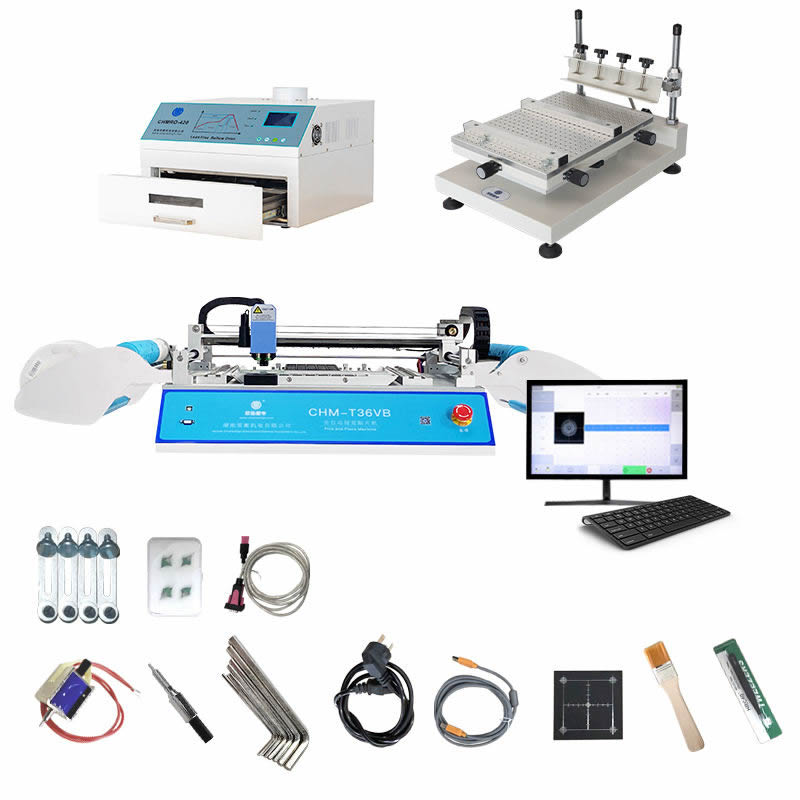

Small SMT production line : Stencil printer 3040, CHMT36VB, Reflow oven CHMRO-420

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube: www.youtube.com/kimiLiuCharmhigh
If you want to see more information and videos, please contact us by E-mail.
We will response you at the first time.

Standard Accessories for CHMT36VB (Need to prepare the external PC by yourself):
1) Pick and Place Machine CHMT36VB 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1 (sotware included in USB driver)
4) Power Cord 1
5) Pull needle 2
6) Solenoid for pull needle 1
7) Camera positioning adjust black board 1
8) Hex wrench 6
9) Tweezers 1
10) Brush 1
11) Pen for touch screen 1
12) Fixture for IC tray 4
13) Grease 1
14) English user manual 1

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
