Super high precision 4 Heads SMT pick and place machine Charmhigh CHM-551 CPK≥1.0
High configuration, room saved, very good for small batch production with high stability.
Updated Model Genius small CHM-551 (with base) High Precision Ball Screw
Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot
CHM-551 SMT Pick and Place Machine (with Auto Nozzle Change) for
SMT Batch Production.
0201 supported. CPK Test support. Economic solution for SMT assembly.
Machine features
1. Support CPK test CPK≥1.0
2. Automatic nozzle change (13 sets nozzle library)
3. Thermal Compensation
4. Automatic conveying
5. Optimal speed:11500CPH ; IPC9850:8850CPH
6. .……
For more machine features, please consult our account manager
CHM-551 catalog download: CHM-551 - Catalog.pdf
CHM-551 Working video from customer on Youtube:
https://www.youtube.com/watch?v=OawJh43K9EI
CHM-551 mounting 0402, 0603, 0805:
https://www.youtube.com/watch?v=x6bLKcVWXCg
CHM-551 mounting 0201:
https://www.youtube.com/watch?v=Vj1I1Kiavtg
| CHM-551 Specifications | |
| Dimensions | 1050mm(L) x1050mm(W) x 1360mm(H) |
| Weight | 310kg -with base |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal); IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.06mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 8mm standard Yamaha pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 25mm×25mm); Mark camerax2 |
CHM-551 new looking, viewing window added.
Main features:
4 heads, 50 feeder stacks, servo motor, PCB auto conveyor, ball screw,
thermal compensation, 19-hole automatic nozzle change, 0201, CPK test passed......
Working with Yamaha electric feeders& pneumatic feeders together.
Mounting IC with perfect result, max support 25x25mm size IC, tiny pitch perfect mounting.
Charmhigh, top Chiense brand.
Our factory:

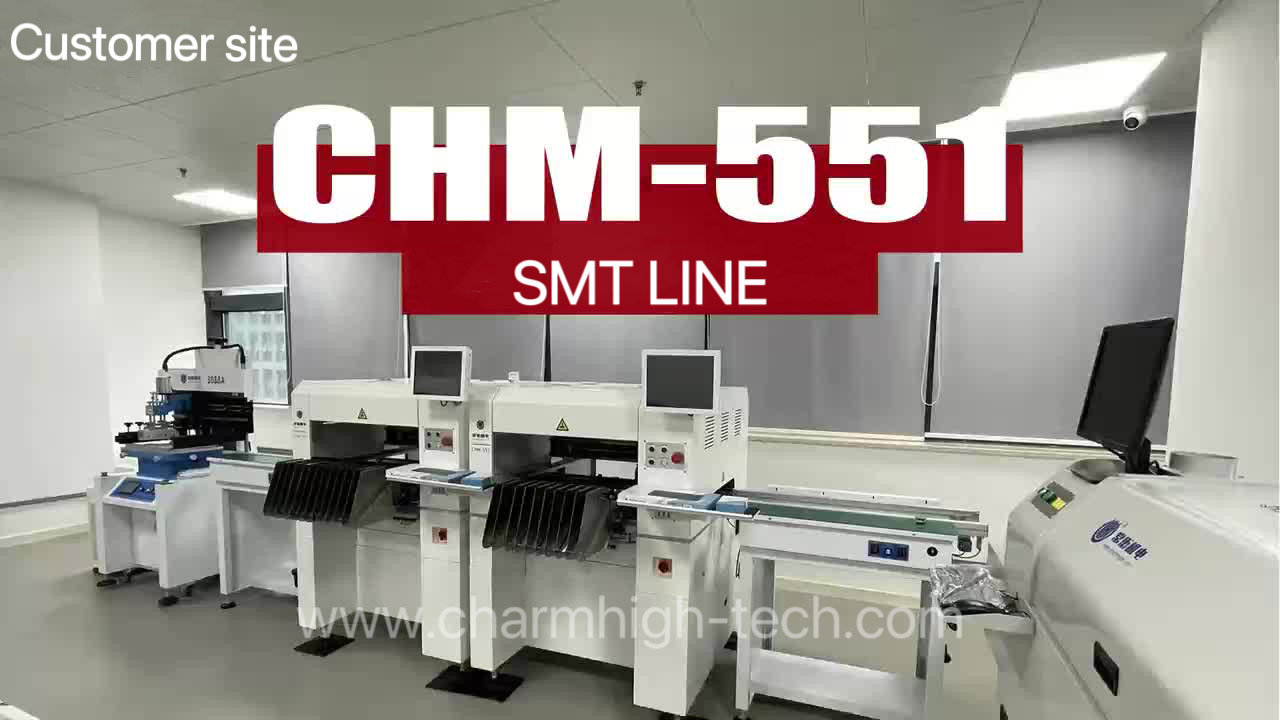

Recommend SMT production line:
3250 solder paste printer---conveyor---CHM-551 two units---conveyor---reflow oven
CHM-551 Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
Please note:
The pick and place machine is complete set with all accessories
included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor.
Please purchase this machine with confidence.
Enjoy with your pick and place machine!
