Charmhigh TS10 high speed SMT Fully automatic pick and place
machine with 100 Feeder stacks
For large SMT production line, PCB assembly line, PCBA
manufacturing, 01005 supported
1. Introduction
This TS10 model is an high precsion advanced SMT pick and place
machine which can mounting 01005 component.
It adopts the integrated structure of precision machinery and uses
Charmhigh independent research and development results.
It has the characteristics of high precision, high stability,
complete functions and convenient use. Its optimal mounting speed
is 42000CPH.
2. TS10 highlight:
1. Support CPK detection, min component 01005
2. The Y-axis adopts twin servo motor control system
3. Automatic thermal Compensation correction system
4. Built-in Vacuum Pump + solenoid valve structure
5. Automatic nozzle change(37 sets nozzle library)
6. PCB Support Device
7. Dual mark camera, good for bigger PCB
8. ……
For more machine features, please consult our account manager
Video of TS10 on our Youtube channel:
https://www.youtube.com/watch?v=UJis_fjsmo4
Charmhigh TS10:
| Dimensions | 1600mm(L)×1688mm(W)×1560mm(H) |
| Weight | 1930kg |
| Power Supply | AC380V (50Hz, three phase), 4.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 10 heads |
| Mounting Speed | 42000cph (optimal); IPC9850: 31000cph |
| Mounting Accuracy | (XY)±0.04mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| Component Range | Inch size 0201 to 36mm*36mm, and larger components mounting. |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 600mm(L)×400mm(W) (standard);
1200mm(L)×400mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting THK ground ball screw and THK mute linear
guide (Y axis with double screws) |
| Feeding System | 100 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×10 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
It has the function of image stitching
Mark camera×2 |

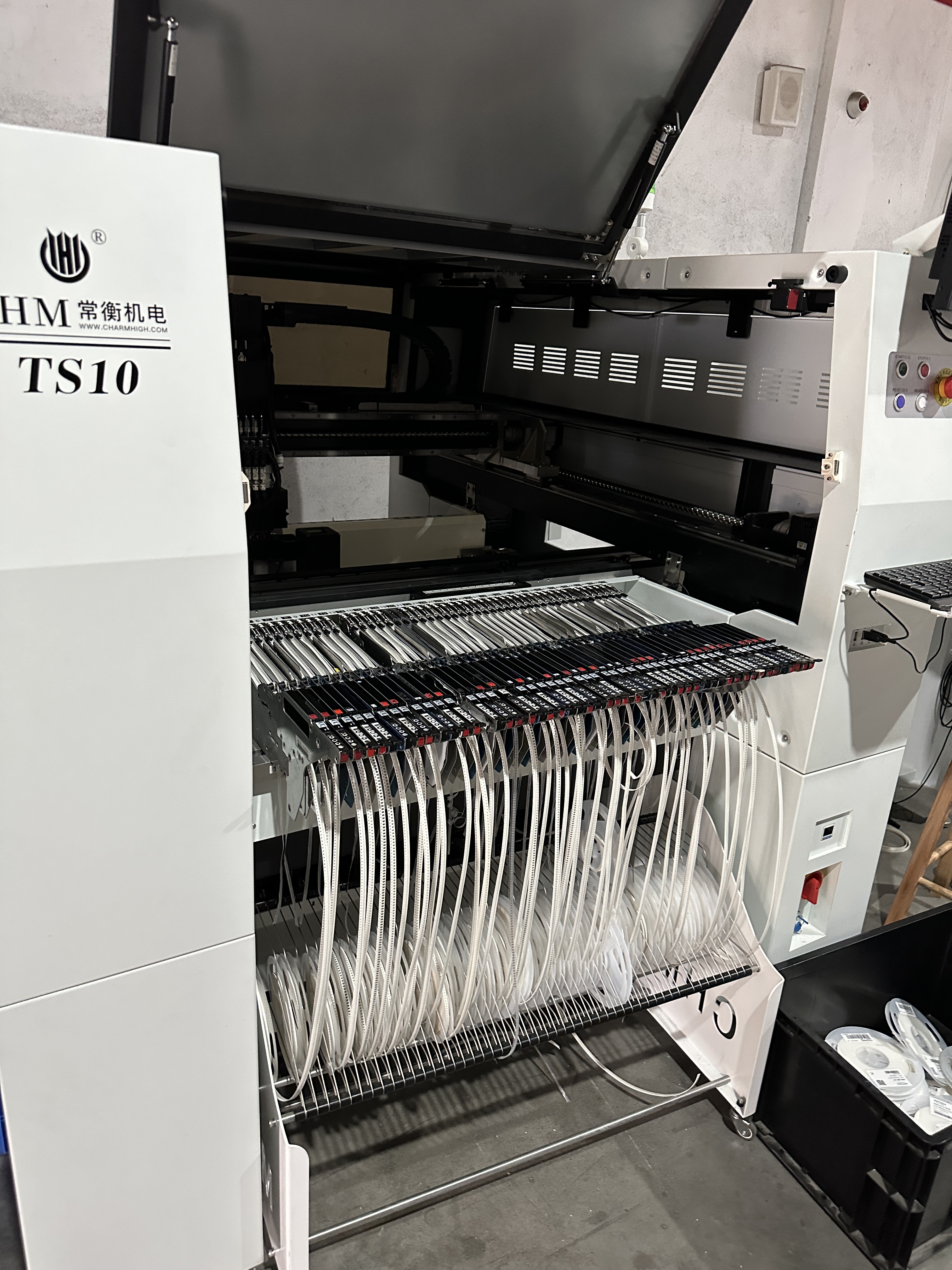

TS10 real picture in our factory(100 feeder slots (Work with Fuji NXT electric feeder):
Large full automatic SMT in-line production line recommend:
Samples:
Charmhigh factory direct supply:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply
with guarantee.
We provide online Q/A and troubleshooting support and technical
advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
