Charmhigh TS10 high speed SMT Fully automatic pick and place
machine with 100 Feeder stacks
For large SMT production line, PCB assembly line, PCBA
manufacturing, 01005 supported
Introduction

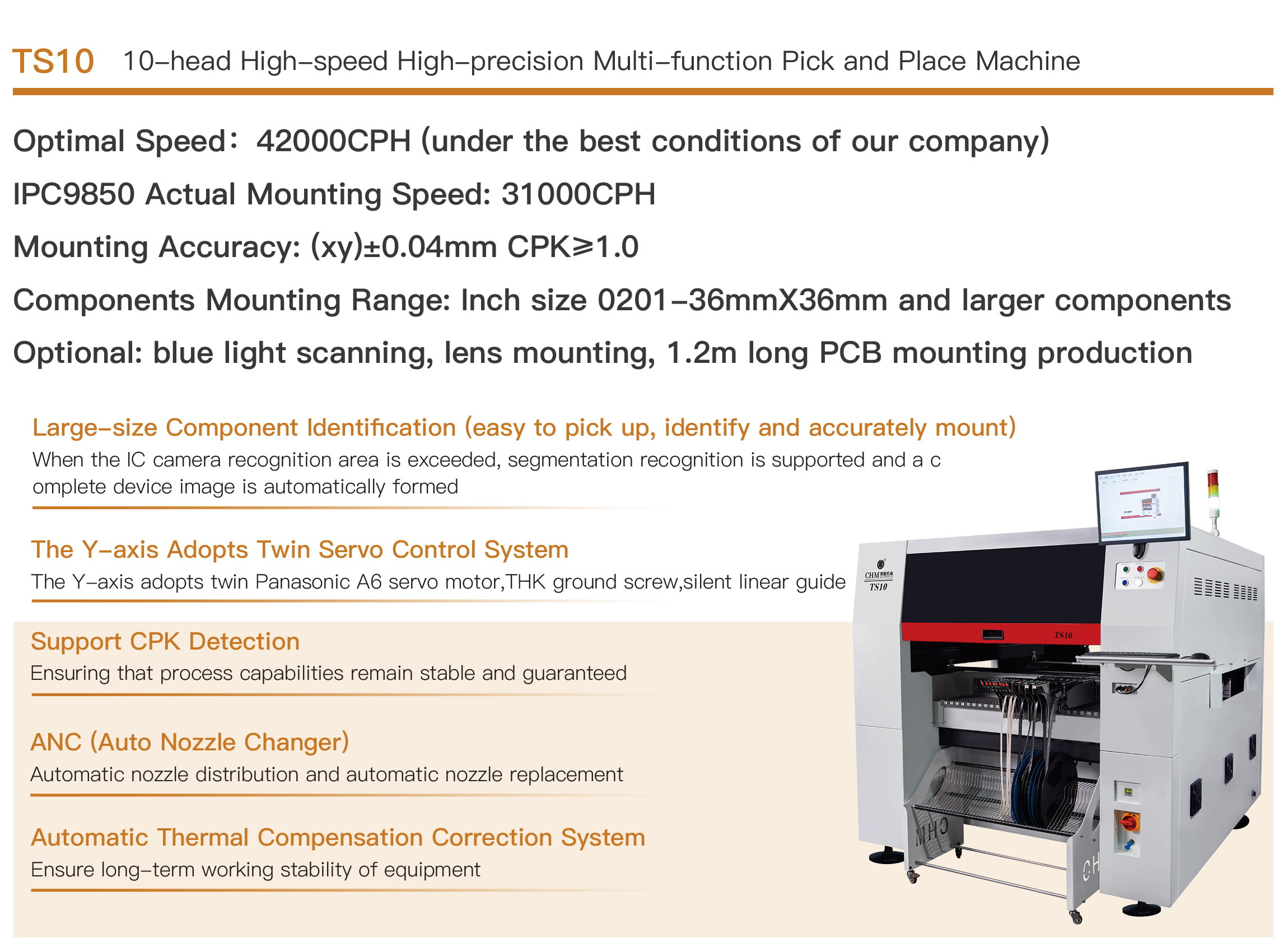

TS10 Ten-head high-precision, high-speed general-universal pick and
place machine
1. Optimal Speed: 42000CPH (under the best conditions of our company)
2. Mounting Accuracy:(xy)+0.04mm CPK>1.0
3. Components Mounting Range: Inch size 01005 - 36mmX36mm and larger components
4. Optional: blue light scanning, lens mounting, 1.2m long PCB
mounting production
1/The Y-axis Adopts Twin Servo Control System
The Y-axis adopts twin Panasonic A6 servo motor,THK ground
screw,silent linear guide
2/Support CPK Detection
Ensuring that process capabilities remain stable and guaranteed
3/Large-size Component ldentifcation (easy to pick up, identify and accurately mount) When the lC
camera recognition area is exceeded, segmentation recognition is
supported and a completedevice image is automatically formed
4/ANC (Auto Nozzle Changer)
Automatic nozzle distribution and automatic nozzle
replacement5/Automatic Thermal Compensation Correction System.
Ensure long-term working stability of equipment
Charmhigh TS10:
| Dimensions | 1600mm(L)×1688mm(W)×1560mm(H) |
| Weight | 1930kg |
| Power Supply | AC380V (50Hz, three phase), 4.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 10 heads |
| Mounting Speed | 42000cph (optimal); IPC9850: 31000cph |
| Mounting Accuracy | (XY)±0.04mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | 01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| Component Range | Inch size 0201 to 36mm*36mm, and larger components mounting. |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 600mm(L)×400mm(W) (standard);
1200mm(L)×400mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting THK ground ball screw and THK mute linear
guide (Y axis with double screws) |
| Feeding System | 100 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×10 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
It has the function of image stitching
Mark camera×2 |
Highlight:
1. Support CPK detection, min component 01005
2. The Y-axis adopts twin servo motor control system
3. Automatic thermal Compensation correction system
4. Built-in Vacuum Pump + solenoid valve structure
5. Automatic nozzle change(37 sets nozzle library)
6. PCB Support Device
7. Dual mark camera, good for bigger PCB
8. ……
For more machine features, please consult our account manager
TS10 real picture in our factory(100 feeder slots (Work with Fuji NXT electric feeder):
Samples:
Charmhigh factory direct supply:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply
with guarantee.
We provide online Q/A and troubleshooting support and technical
advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
