| Brand Name : | Charmhigh |
| Model Number : | 3250, CHM-751, 830 oven |
| Certification : | CE |
| Price : | $19000 |
| Payment Terms : | T/T |
| Supply Ability : | 50 per month |
| Delivery Time : | 6-9 working days |
Medium PCB SMT assembly line: 3250 semi-auto solder paste printer, CHM-751 6 heads SMT pick and place machine, 830 reflow oven. For batch production, economic SMT solutions
CHM-751 SMT line working video:
https://www.youtube.com/watch?v=86Q1jI8Ey9E
CHM-751 SMT line in a Chinese factory:
https://www.youtube.com/watch?v=hX4GejsQvA4
Our YouTube channel:
https://www.youtube.com/@KimiLiuCharmhigh/videos
This SMT assembly line suitable for:
Scientific research institutes, military industry, university laboratories, enterprises, start-up companies, New energy/automotive smart home LED lighting security instrument, Consumer electronics, Mobile communications, Home appliance industry, Medical equipment..etc.
| CHM-751 Specifications | |
| Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
| Weight | 540kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 6 heads |
| Mounting Speed | 18400CPH (optimal) IPC9850: 13400CPH |
| Mounting Accuracy | (XY)±0.05mm CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ground Ball screw + linear guide (Y axis with double screws) |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |

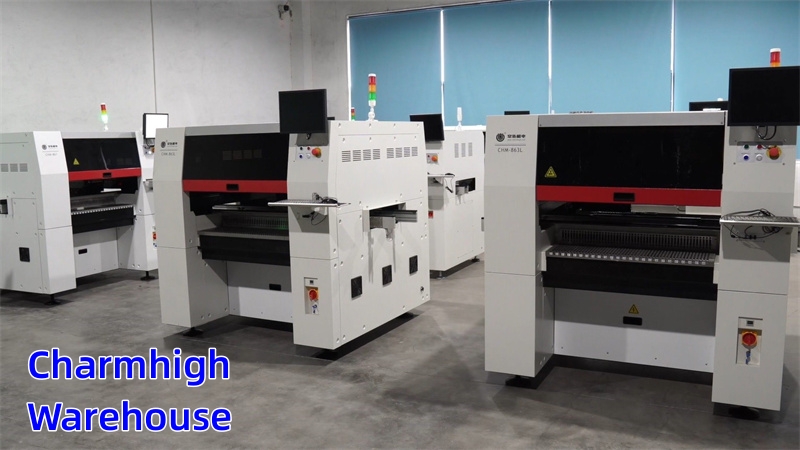

Real photo:
SMT workshop:
Packing & delivery:
Samples:
Charmhigh exhibition:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
