Automatic PCB Unloader K2-250 SMT Magazine Loader for SMT Assembly Line and Electronic Products Machinery

1. Simple structure in linear type, easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts , electric parts and operation parts.
3. High pressure double crank to control the die opening and closing.
4. Running in a high automatization and intellectualization,no pollution
5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Features:

1. Intelligent touch screen + PLC control system
2. Abnormal, with automatic fault diagnosis, sound, tricolor light and other alarm functions
3. PCB positioning: Taiwan Zhongda motor + photoelectric sensor
4. PCB transportation direction: right → left or left → right
5. Applicable PCB size: 50 * 50-320 * 250mm
6. Transmission height: 900 ± 20 mm
7. Power demand: voltage AC 220 V / 50 / 60 Hz
8. Air source compressor requirement: 0.4-0.6mpa
9. PCB rack size fill inside loader: 355 * 320 * 563mm
10. Automatic replacement of PCB rack
11. Brake system: Taiwan Zhongda high precision motor brake system
12. Transmission system: Taiwan ball screw + ￠30mm bearing steel bar
13. Overall dimension: 1700mm * 800mm * 1350mm

Detail real pictures:

(100% good quality assurance)

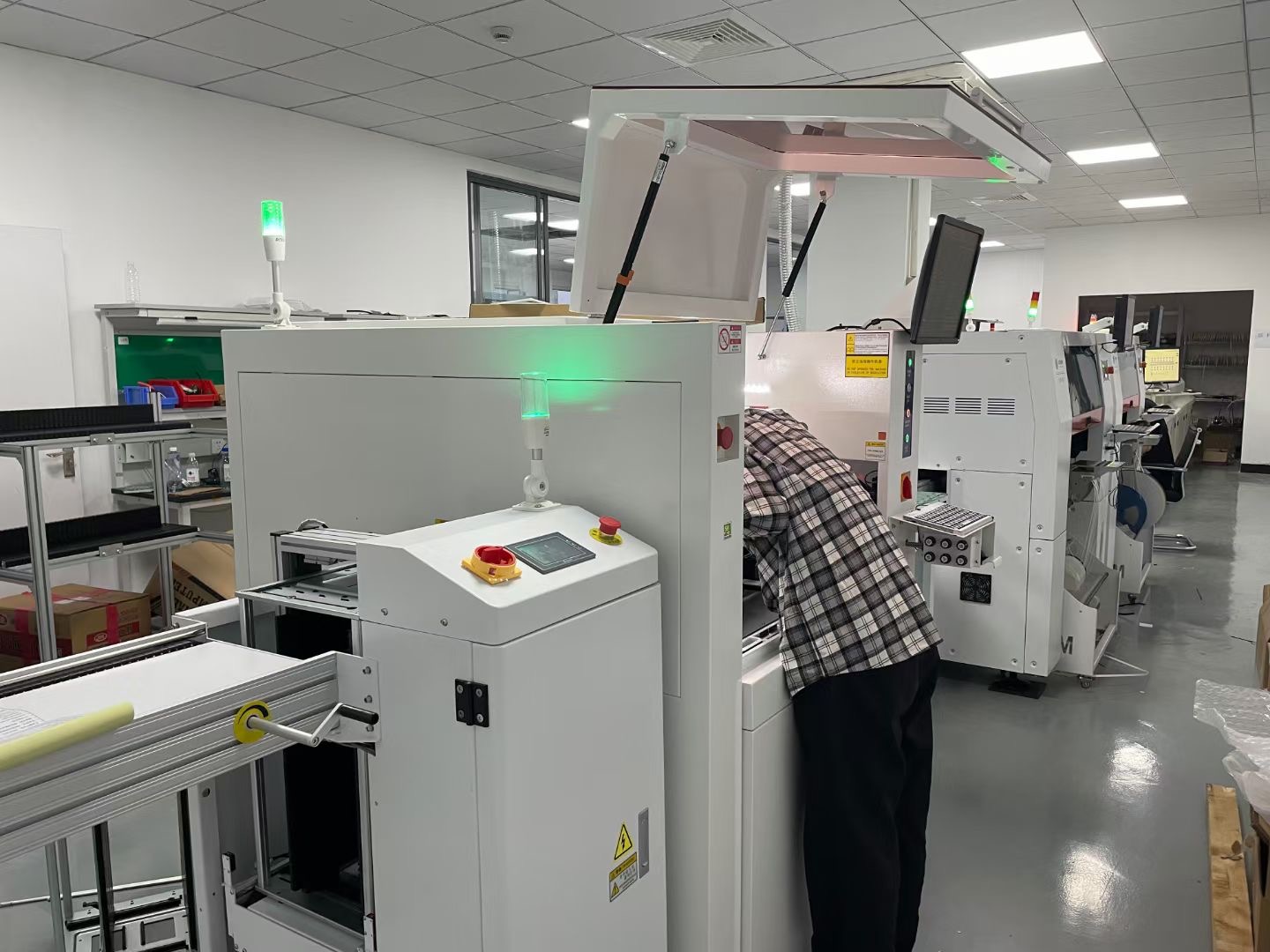

Two 6 heads pick and place machines SMT production line real shot in Charmhigh factory:

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
