Lead-free 8 Temperature Zone SMT Reflow Oven 1160*400mm BGA Soldering Oven Puhui T980

Touch screen, 3 phase 5 lines 220V / 380V, CE declaration

• Technical parameters:

Features:
1. T-980 selects the IR and hot air heating technology controlling, equipped with special design wind wheel, speed stability and uniform temperature, suit for uninterrupted soldering the LED and BGA components.
2. Equipped with the crawler-type and 8 temperature-zone heating systems, each temperature zone uses independent PID controlling and up-down heating type, can make the inside temperature more accurate and well-proportioned, just take about 20 minutes can let it heat up to the working temperature from the room temperature.
3. Intelligent temperature wave heating type, oversized capacity wave selection, have eight temperature waves can satisfy various welding technological requirements.
4. Programmable technology, preset the temperature wave memory storage function, can complete the whole welding process automatically.
5. Adopts the thermocouple temperature measurement , adds the compensation circuit, makes the temperature measurement more accurate, the wave more perfect.
6. Uses PID intelligent temperature control technology; makes the temperature control more accurately. Adopts the imported large current solid-state relay non-contact output can effectively avoid the IC or circuit board damage due to the rapid or uninterrupted warming up, make the whole welding process more scientific safety.
7. The transmission system adopts stepping motor and stepping motor driver, which runs stably with adjustable speed range of 0-600mm / min,2mm/s-12mm/s.
8. Adopts independent wheel structure and special stainless steel strut, durable wear-resisting runs smoothly, speed precision can reach ±10mm/min.
9. Independent cooling zone, to ensure the PCB in low temperature when out of the oven.
10.Adopts advanced touch screen control technology, which integrates machine operation,function display and monitoring, making the working state display more intuitive, heating process more clear, and operation more convenient.Facilitate product upgrading.
11.Ergonomic design, practical and easily operated.

12. Preheating modes:
(1) Sequential preheating: switch on heating zones in turn.
(2) Synchronous preheating: switch on heating zones at the same time.

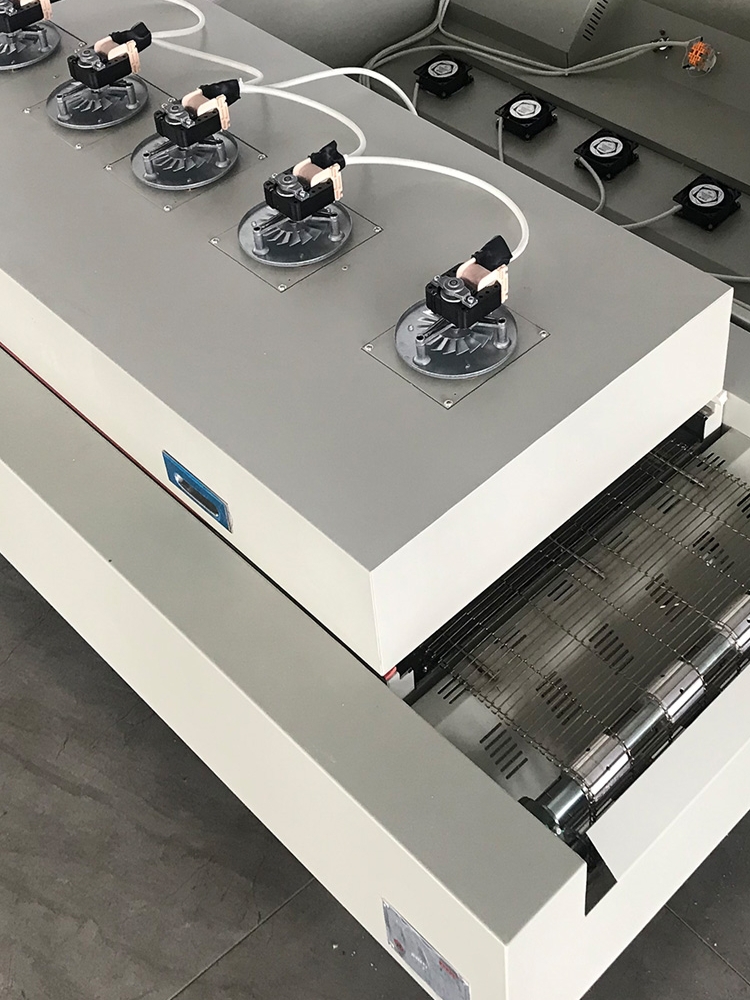

T980 reflow oven pictures:

Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.
Each machine 100% test well before ship out.
