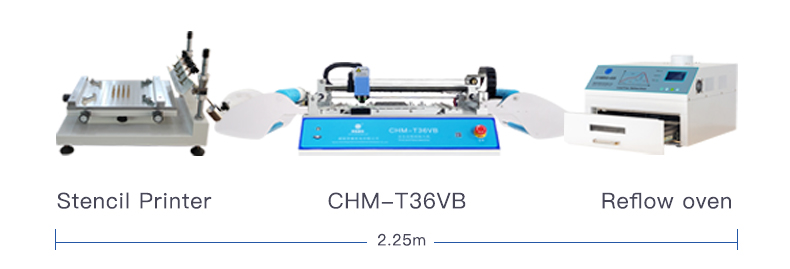

Hot genius economical small SMT production line, total length 2.25m
1. 3040 high precision stencil printer
2. CHMT36VB 58 feeders pick and place machine
3.CHMRO-420 hot air & infrared reflow soldering oven
Description:
This small pcb assembly line is made by Charmhigh, room saved with
reasonable price. Suitable for prototyping and small batch
production, from 0402 to 5050, LED/SOT/SOP/QFP/QFN, etc. Strong
function with very low price. We recommend to everyone.
1.Stencil Printer 3040:
| Work table size | 300*400mm |
| Print size | 250*400mm |
| Max net frame size | 370*470mm |
| Printer way | manual |
| Thickness of the substrates | 0-80mm |
| The workbench adjust volume | 10mm, Horizontal Angle adjustment |
| Printing platform height | 220mm |
| repeated accuracy | +-0.01mm |
| locate mode | Benchmark or hole shape |
| Dimension | 540*370*350 mm |
| Packing size | 630*450*480mm |
| Weight | NW.25Kg GW.35Kg |
3040 working video Youtube link: https://www.youtube.com/watch?v=K4we2-hehxA&t=234s
CHM-T36VB Parts List
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
| 2. CHM-T36VB SMT pick and place robot | |
| Dimensions | 1310mm(L)x710mm(W)x340mm(H) |
| Weight | 50kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 heads |
| Mounting Speed | 5000cph (optimal without vision detection); 3000cph (optimal with vision detection) |
| Control Accuracy | 0.025mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×360mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | External computer required (Windows) |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt + polished rod + Linear guides |
| Feeding System | 58 tape feeding stacks (8mm:44pcs, 12mm:8pcs, 16mm:4pcs, 24mm:2pcs.
Customization supported). |
| Vision System | Up-looking camera for component automatic calibration (component
size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Right side added 58 feeder stacks, install more tapes, very
convenient!
With vibration feeder, mounting tube material.
3. CHMRO-420 drawer type mini reflow soldering oven:
| Dimensions | 420mm×405mm×265mm |
| Net Weight | 20kg |
| Rated Power | 2500W (peak power) |
| Rated Voltage | AC220V 50Hz/60Hz |
| Drawer Size | 300mm×300mm |
| Soldering Type | Lead Soldering / Lead-free Soldering |
| Maximum Soldering Temperature | 300°C |
| Heating Mode | Infrared ray & hot air |
| Temperature Control Accuracy | ±1°C (at constant temperature) |
| Soldering Cycle | 5 ~ 10 minutes |
| Saved Reflow Curve Quantity | 8 |
Charmhigh, top Chinese brand. Plenty stock, welcome inquiry.
Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct
supply.
We provide online Q/A and troubleshooting support and technical
advice service.
Provide one to one after-sale service. Each machine 100% tested
well before ship out.
