Updated Model Genius small CHM-551 Desktop SMD pick and place machine. High precision ball screw Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot

CHM-551 SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production. 0201 supported. CPK Test support. Economic solution for SMT assembly.

New updated model by Charmhigh, high precision, high configuration. Room saved, very good for small batch production with high stability.

CHM-551 catalog download: CHM-551 - Catalog.pdf

Purcahse directly online, free shipping DHL, shipping time 7-9 days.

1. On Aliexpress:

https://www.aliexpress.com/item/3256805922335420.html

2. On Online store:

https://www.charmhigh-smt.com/sale-470611-charmhigh-chm-551-desktop-4-heads-smt-pick-and-place-machine-auto-pcb-conveyor-nozzle-change.htm

Introduction:

CHM-551 is a four-head high-speed high-precision general-purpose automatic SMT pick and place machine with high-end configuration mechanism and excellent performance, and its price is affordable. It is used for R&D proofing and SMT small and medium-sized production, and can quickly recover investment cost.

Working video on Youtube:

https://www.youtube.com/watch?v=OawJh43K9EI

Packing chm-551 and ready to ship to South Africa:

https://www.youtube.com/watch?v=KBGGZVmYOzY

Machine features
1. Support CPK test
2. Automatic nozzle change (13 sets nozzle library)
3. Thermal Compensation
4. Automatic conveying
5. Optimal speed:11500CPH IPC9850:8850CPH
6. .……
For more machine features, please consult our account manager

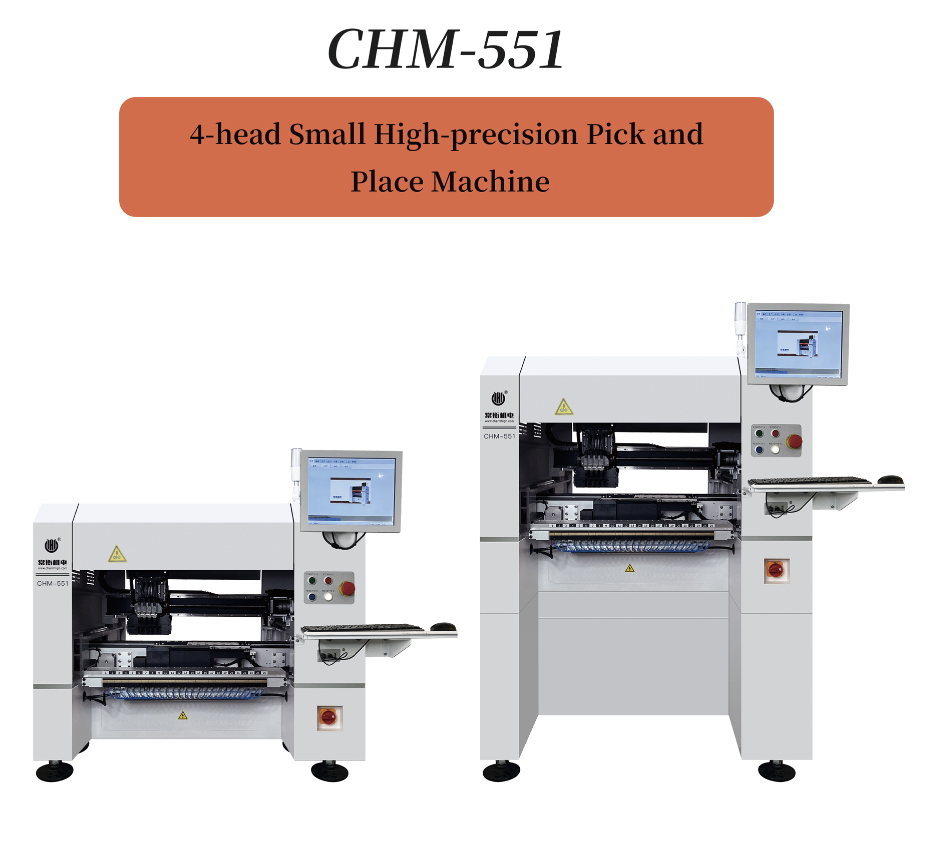

A base can be added with CHM-551, you can choose a deskotp one or a vertical one:

Highlight:

1. Auto nozzle exchange, you don't need to change nozzle manually, very convenient!

2. Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.

3. With PCB auto conveyor, built a small SMT production line, free your hands!

4. High configuration with smart software, longer lifespan, Charmhigh provide stronger mechanical part.

Working with universal standard Yamaha Feeders(purcahse separately):

Option:

1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder

3. Vibration feeder

Charmhigh SMT, factory supply, prompt delivery.

Charmhigh, top Chiense brand.

Parts List

Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.

Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89

E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
