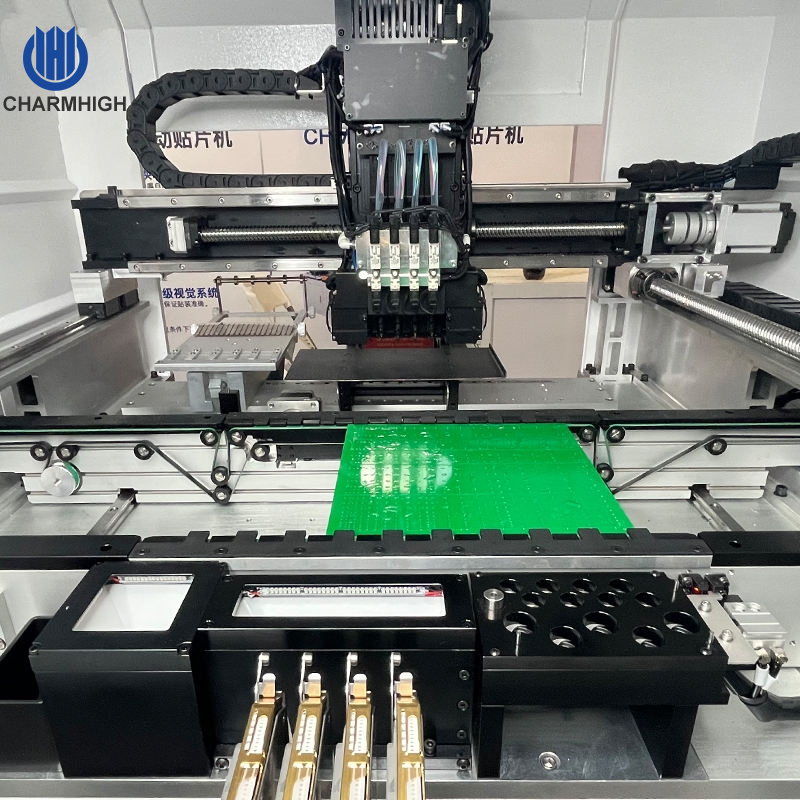

New updated CHM-551 4 heads SMT pick and place machine by Charmhigh

Super high precision, high configuration. Room saved, very good for small batch production with high stability.

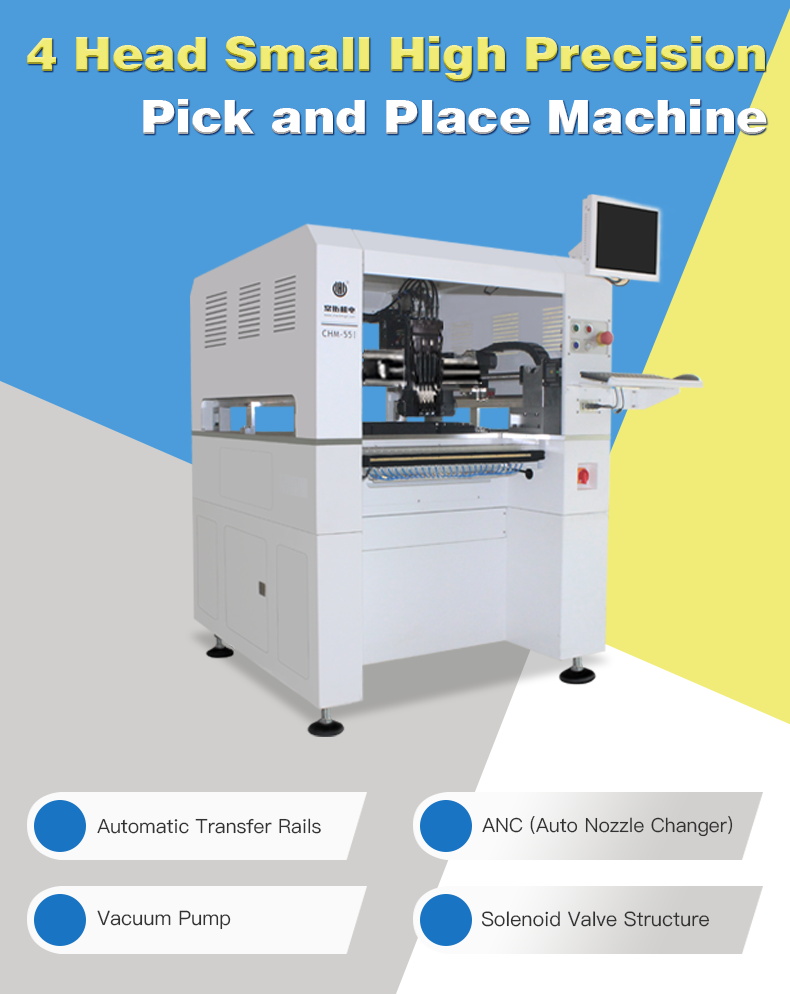

Updated Model Genius small CHM-551 (with base) High Precision Ball Screw
Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot
CHM-551 SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production. 0201 supported. CPK Test support. Economic solution for SMT assembly.

CHM-551 Working video on Youtube:

https://www.youtube.com/watch?v=OawJh43K9EI

Packing chm-551 and ready to ship to South Africa:

https://www.youtube.com/watch?v=KBGGZVmYOzY

CHM-551 catalog download: CHM-551 - Catalog.pdf

Machine features
1. Support CPK test
2. Automatic nozzle change (13 sets nozzle library)
3. Thermal Compensation
4. Automatic conveying
5. Optimal speed:11500CPH IPC9850:8850CPH
6. .……
For more machine features, please consult our account manager

CHM-551 Parts List

Highlight:

1. Auto nozzle exchange, you don't need to change nozzle manually, very convenient!

2. Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.

3. With PCB auto conveyor, built a small SMT production line, free your hands!

4. High configuration with smart software, longer lifespan, Charmhigh provide stronger mechanical part.

Main features:

4 heads, 50 feeder stacks, servo motor, PCB auto conveyor, ball screw,

thermal compensation, 19-hole automatic nozzle change, 0201, CPK test passed......

Mounting IC with perfect result, max support 25x25mm size IC, tiny pitch perfect mounting.

Very stable with high precision, the best 4 heads model in China.

Charmhigh, top Chiense brand.

Recommend SMT production line:

3250 solder paste printer, CHM-551 SMD pick and place robot, T961 reflow oven

Please note:
The pick and place machine is complete set with all accessories included in the package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air for pneumatic feeders).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!

Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89

E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube: https://www.youtube.com/c/KimiLiuCharmhigh/videos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
