High configuration Charmhigh CHM-751 Advanced 6 heads SMT pick and place machine

Good for medium SMT assembly line, for PCBA manufacturing
6 Heads 50 Feeders, Auto Rails, Double grinding screw, Auto Nozzle changer, PCB stand support, Japan PISCO vacuum generator, servo motor

Higher precision CPK≥1.0 (X Y), Mounting speed 17000cph (optimal) , IPC9850: 13400CPH

CHM-751 Machine Features
1. Thermal Compensation
2. Support CPK test, 0201 perfect mounting
3. Built-in Vacuum Pump

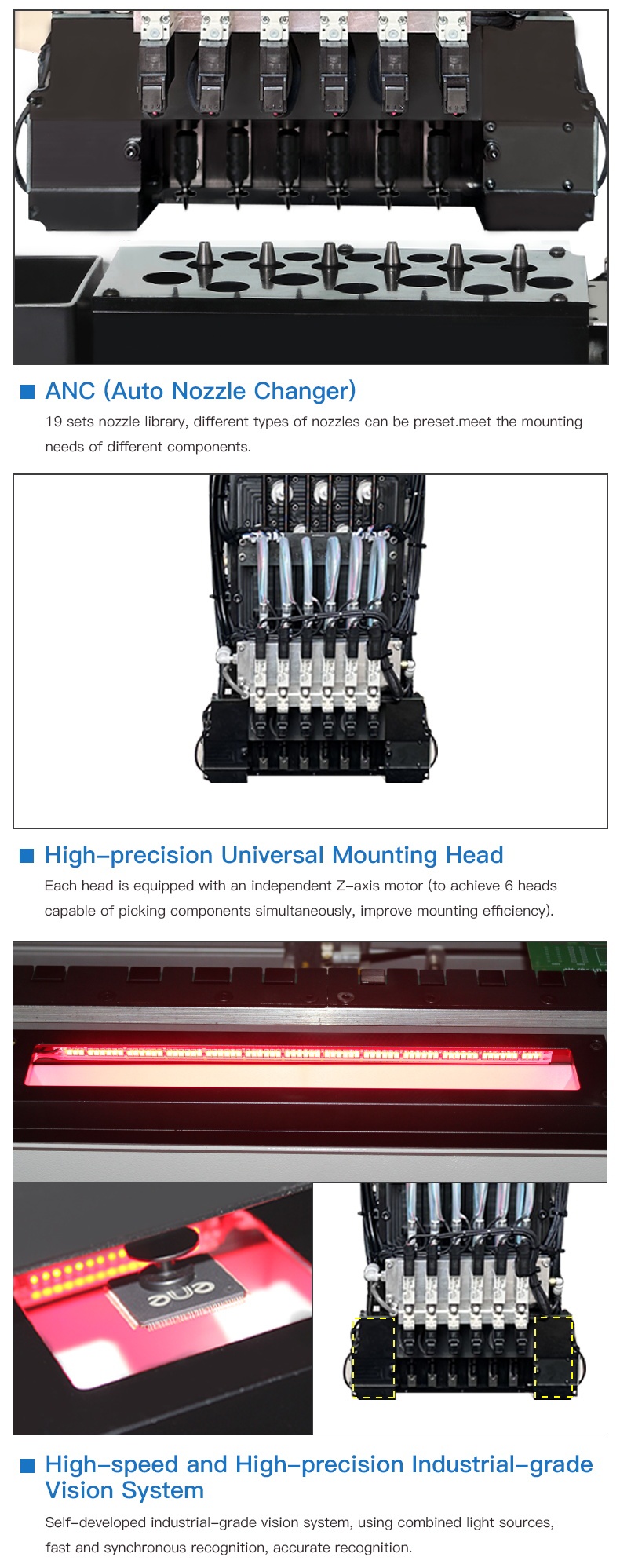

4. Automatic nozzle change (19 sets nozzle library)
5. PCB Support Device, good for bigger PCB

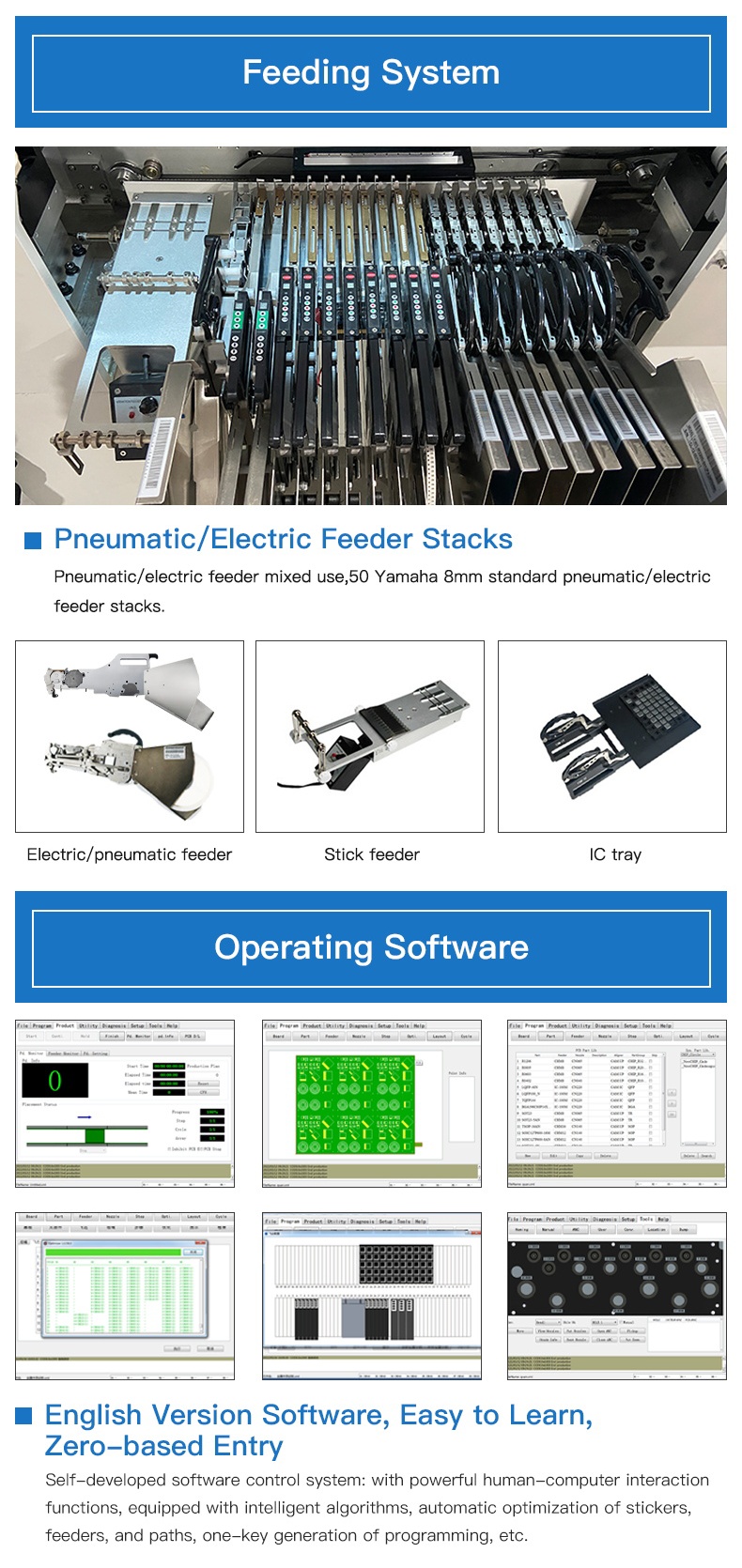

6. 6 head + 50 Yamaha feeder stacks + 9 cameras
7. Double Y axis with double servo motors

8. 6 heads picking at the same time

9. Dual mark cameras, good for bigger PCB

10......
For more machine features, please consult our account manager

CHM-751 catalog download:CHM-751 - Catalog.pdf

Other information for CHM-751 Pick and place robot:
1. Max PCB area: 400mm(L)*350mm(W)
2. Component: 0201, 0402-5050, SOP, QFN,BGA,PLCC... etc.
3. Highlight: 0201, auto nozzle change, double grinding screw, updated smart software, PCB support, servor motors, passed CPK inspection
4. Delivery: by air / Sea (FOB, CIF, DDU,DDP...etc) or EXW, you can arrange pick up from our factory directly.
5. Payment method: T/T; W/U

6. Lead-time: 5-7 days
7. Packing: export wooden box

More working video for CHM-751 on our Youtube channel:

SMT productin line on our customer site:

https://www.youtube.com/watch?v=hX4GejsQvA4

https://www.youtube.com/watch?v=86Q1jI8Ey9E

Description:

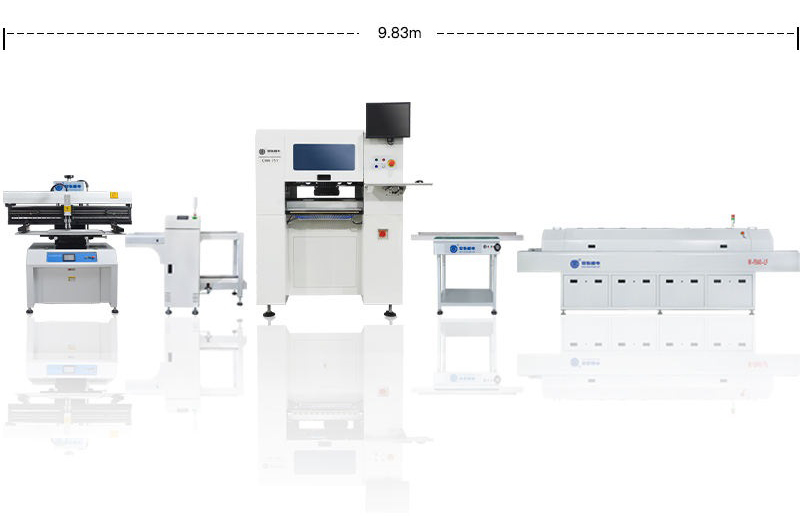

CHM-751 is a high-confuguration 6 heads SMT pick and palce machine from Charmhigh, It is a perfect model which can meet all customers' demand. Below is the medium SMT production line: 3250 Solder paste printer, PCB loader, CHM-751, SMT conveyor, 830 reflow oven

CHM-751 Updated:

Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% test well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Youtube video link of Charmhigh: https://www.youtube.com/@KimiLiuCharmhigh/videos

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
