Competitive Advantage:

1. Convenient software, Embedded Linux System of the machine, industry system, more professional and stable, independent operation, no need external computer, operation more easy and convenient.
2. Industry full touch screen operation, no need external screen, room saved, more convenient operation, USB mouse supported as well.
3. Top and bottom two cameras CCD system correct the position of each components very accurate, especially for IC.
4. It has flexible PCB clamping fixture, and it has user-defined IC tray, convenient and quick.
5. The vision also can second correction machine origin point, make sure origin point correct.
6. With two nozzles placing heads, high precise Juki Nozzles with magnet, no need to disassemble with wrench. 2 nozzles arbitrary rotation angle -180 degree~ +180 degree. Placing height can adjustable.
7. Pull pin automatically return to avoid nozzles broken, pull pin not be stuck, big progress.
8. Z axis detection, placement head can auto back to origin to prevent nozzles broke.

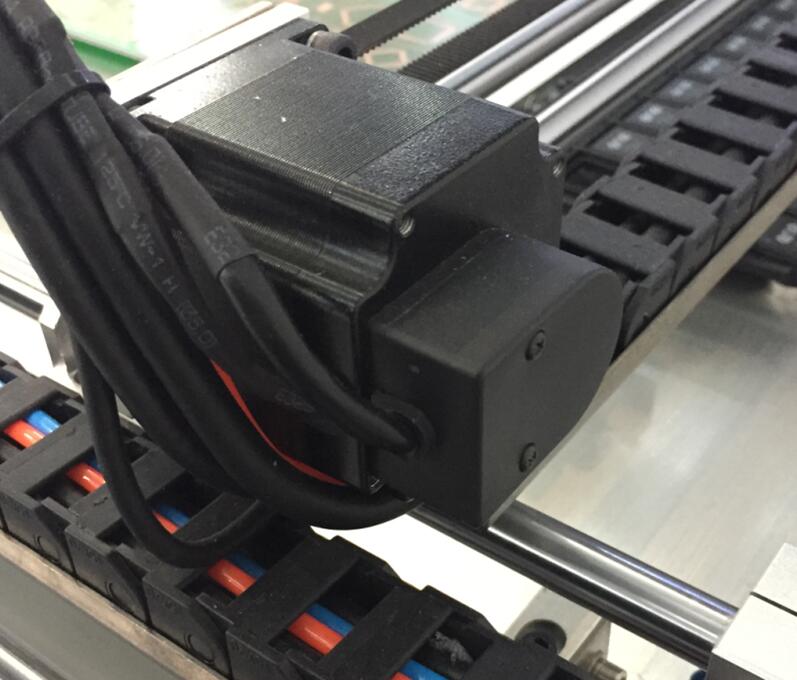

9. Closed-loop contro, X,Y Axis with encoder, never loose steps.
7. PCB by calibrate two components position ---- first and last componet, amend the offset of PCB.
8. Calibration can be rapidly and accurately for PCB, do not need to care about offset, no need to calculate the input.
9. Comes iwth vacuum testing, with automatic feeding; if one component suck crooked, it will automatically throw it to the feed zone, then pick a new one to mount again.
10. If lack material it will automatic detection, machine will alarm and stop; after supply material, then continue working, no need to re-start.
11. Support any number of PCB batch.
12. If no PCB file, or don’t you don't have work file, you can creat a new file to program in machine directly.

13. Support single step.


Why choose Charmhigh?

1.Professional desgin and room saved.
2.User friendly operation, no need professional SMT engineer, entry-level device
3.One machine - Integrated operation, no need extra pump or PC or any supporting facility
4.High accuracy and reliability,make up the defection of manual work
5.Cost efficient, reduce expense to own a professional automatic SMT production line
6.International express with door to door service,3-5 working days delivery
7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment.

8.One machine equal to 5 soldering staff, easy manage and cost-saved. Good for small batch production.

9.Charmhigh Is factory supply, all of our machines parts are researched and manufacturing by ourselves. After-service spare parts never stop.

10. Charmhigh is a professional manufacturer of SMT Pick and Place machine since 2009. All the software are researched by ourselves.

Standard Accessories for CHMT560P4:

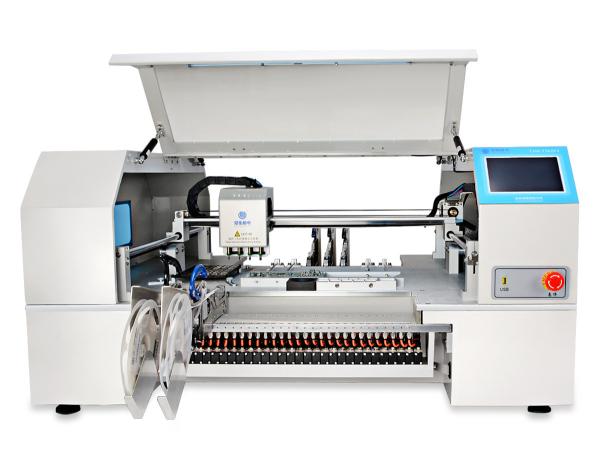

1) Pick and Place MachineCHMT560P4: 1

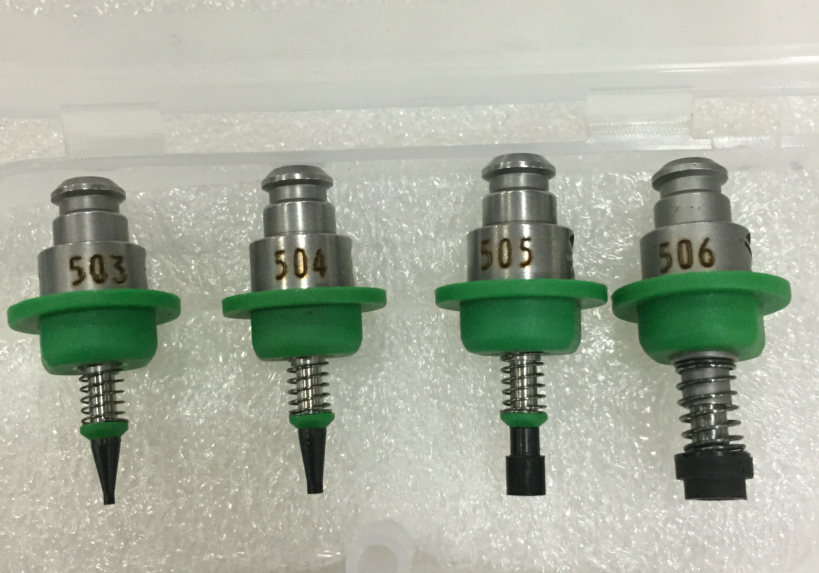

2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Grease: 1
6) Hex wrench: 6
7) Tweezers: 1
8) Brush: 1
9) English user manual: 1
