CHMT530P4 Feeder SMT Pick and Place Machine 4 Heads + Yamaha Feeder 30pcs
SMT Pick and Place Machine Auto Find Mark2​ point 110v / 220v

CHMT530P4:
* 4 Placement Heads with vision system
* Support 30pcs Yamaha pneumatic CL feeders
* Faster placing speed with accuracy
* Closed-loop control
* Embedded Linux system
* Auto Clibrate Mark2 point
* Multi PCB assembly support
* High qaulity Juki Nozzles
* Touch screen operation,PC in-build
* Custom IC tray supported

Please find Video in Youtube link:

Standard Accessories for CHMT530P4:
1) Pick and Place Machine CHMT530P4: 1
2) Juki nozzle total 4pcs (503, 504, 505, 506 size)
3) 8G USB driver 1
4) Power Cord 1
5) Grease 1
6) Hex wrench 6
7) Tweezers 1
8) Brush 1
9) Additional belt set 1
10) Pen for touch screen 1
11) Fixture for IC tray 4
12) English user manual 1

CHMT530P4 Parameters:

Detail pictures:




CHMT530P4:
4 Heads , up& down double cameras, Vision system with top and buttom two cameras, high resolution CCD system:

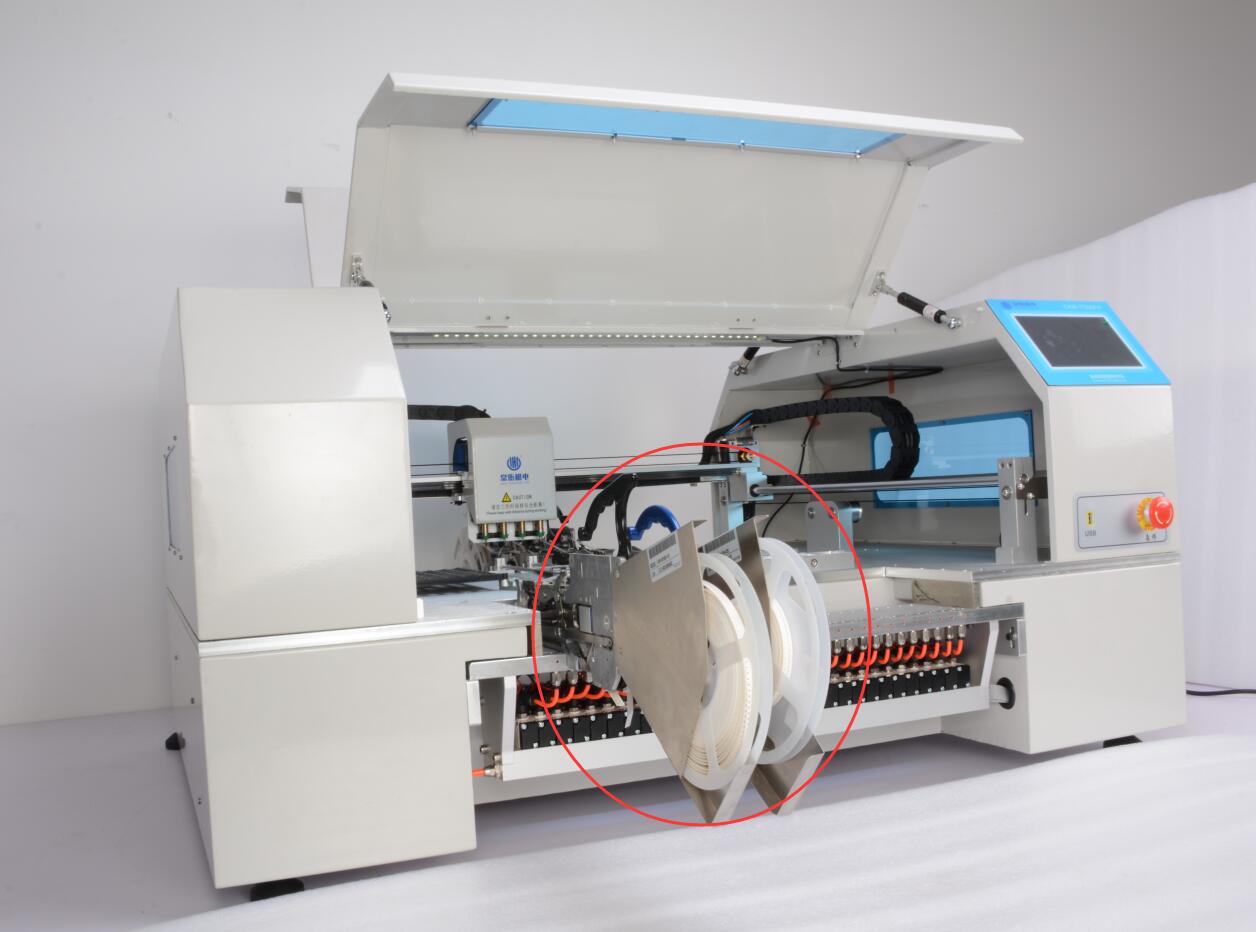

30 feeders ( work with universal Yamaha feeder, both electric feeder and pneumatic feeder):


PCB clamping area max 450*330mm:


Custom IC tray supported, cut tape supported:


X,Y Axis with square rail, more smoothy and higher precision:

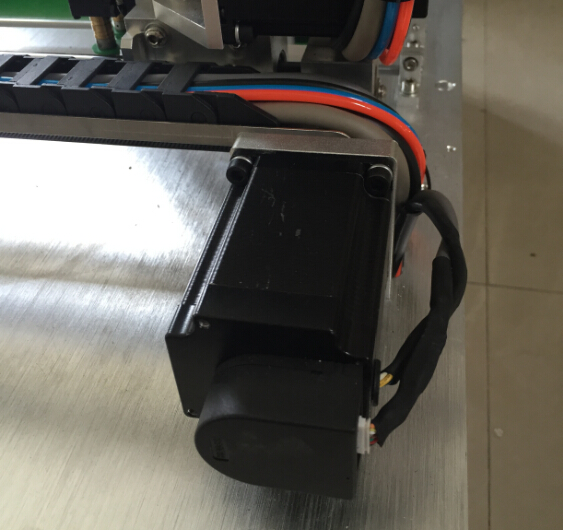

Axis motor with encolder, never out of steps:

Juki nozzles: (Different types 503,504,505,506 4pcs/kit)

PCB samples:

Machine support standard Yamaha pneumatic Feeders + electric feeder:

Option:

8mm / 12mm/ 16mm / 24mm + vibration feeder

Below is electric feeder:

Working with T960 Reflow oven:

Customer workshop:

Welcome inquiries!

Kindly note:
The pick and place machine is complete set with all accessories included in the package, ready to use!
You only need to get an external air compressor(supplying air for feeders) before running.
Good after-sale tech support, please purchase it with confidence.
Enjoy with your pick and place machine!

Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.

Each machine 100% test well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com

Charmhigh Youtube link: www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA/videos
