Advanced CHMT560P6, 4 Heads 60pcs Yamaha Pneumatic Feeder SMT Chip Mounter PCB assembly Line​​ 110v / 220v

* 4 Placement Heads with vision system

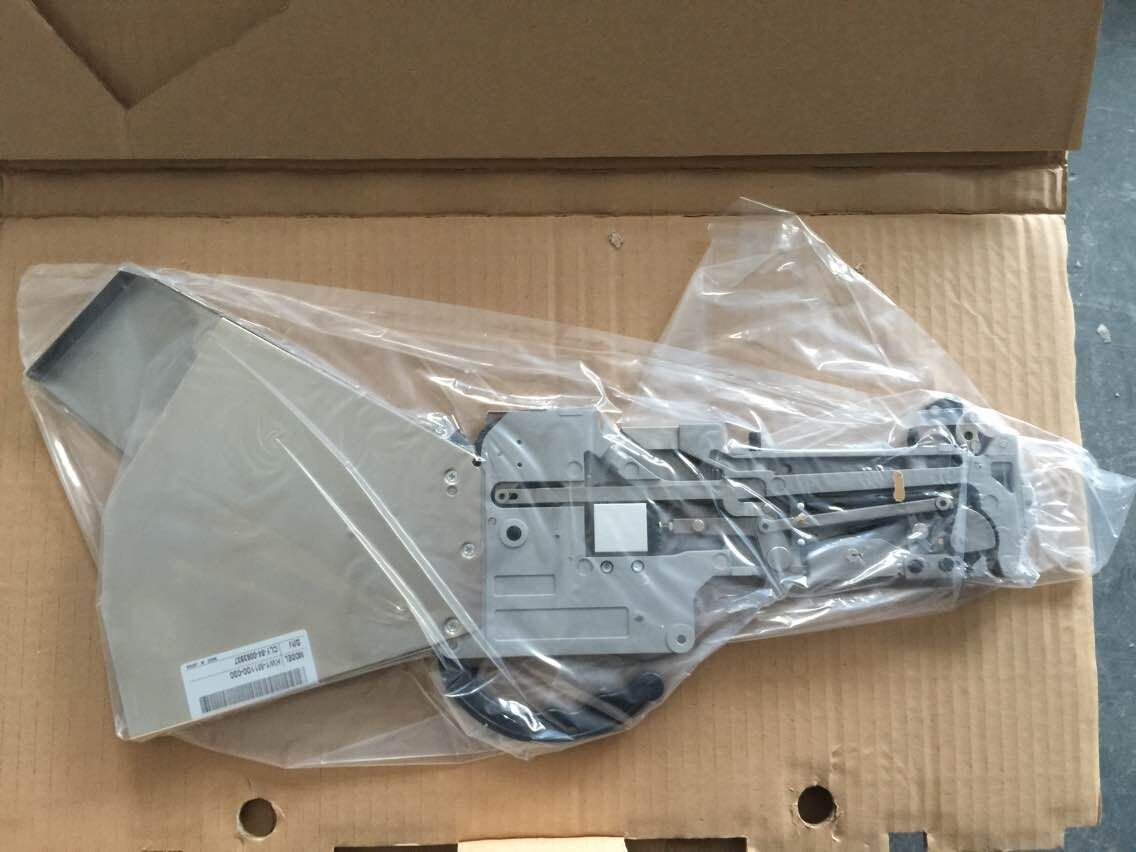

* 60pcs auto Yamaha pneumatic feeders supported
* Faster placing speed with accuracy
* Embedded Linux system, PC in-build
* Industry level high reliable mainboard
* Auto Calibrate Mark2 point
* Closed-loop control

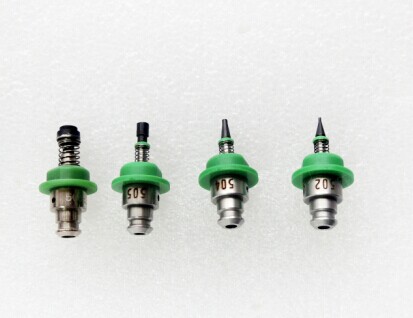

* High qaulity Juki Nozzles
* Touch screen/External mouse both supported
* Custom IC tray supported

Please find Video in Youtu link:

CHMT560P4 pick and place machine placing different kinds of IC:
www.youtube.com/watch?v=0NPlVMwzVCU&t=81s

60pcs Feeders with 4 heads pick and place machine CHMT560P4:
www.youtube.com/watch?v=kXWaDEFIRSE

CHMT560P4 working video for IC 100pins - Charmhigh
www.youtube.com/watch?v=azWuAZ1CYF8

Charmhigh CHM-T560P4 Technical Parameters

Applications industry:
Household appliances industry, Auto electronics industry, Power industry, LED industry, security,instruments and meters industry, communications industry, intelligent control industry, Internet of Things(IOT) industry and military industry, etc.

100% Real pictures:


X,Y Axis Square rails, higher precision, longer lifetime:

Vision system with top and buttom two cameras:

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.

Charmhigh new building

Charmhigh Office

Charmhigh warehouse

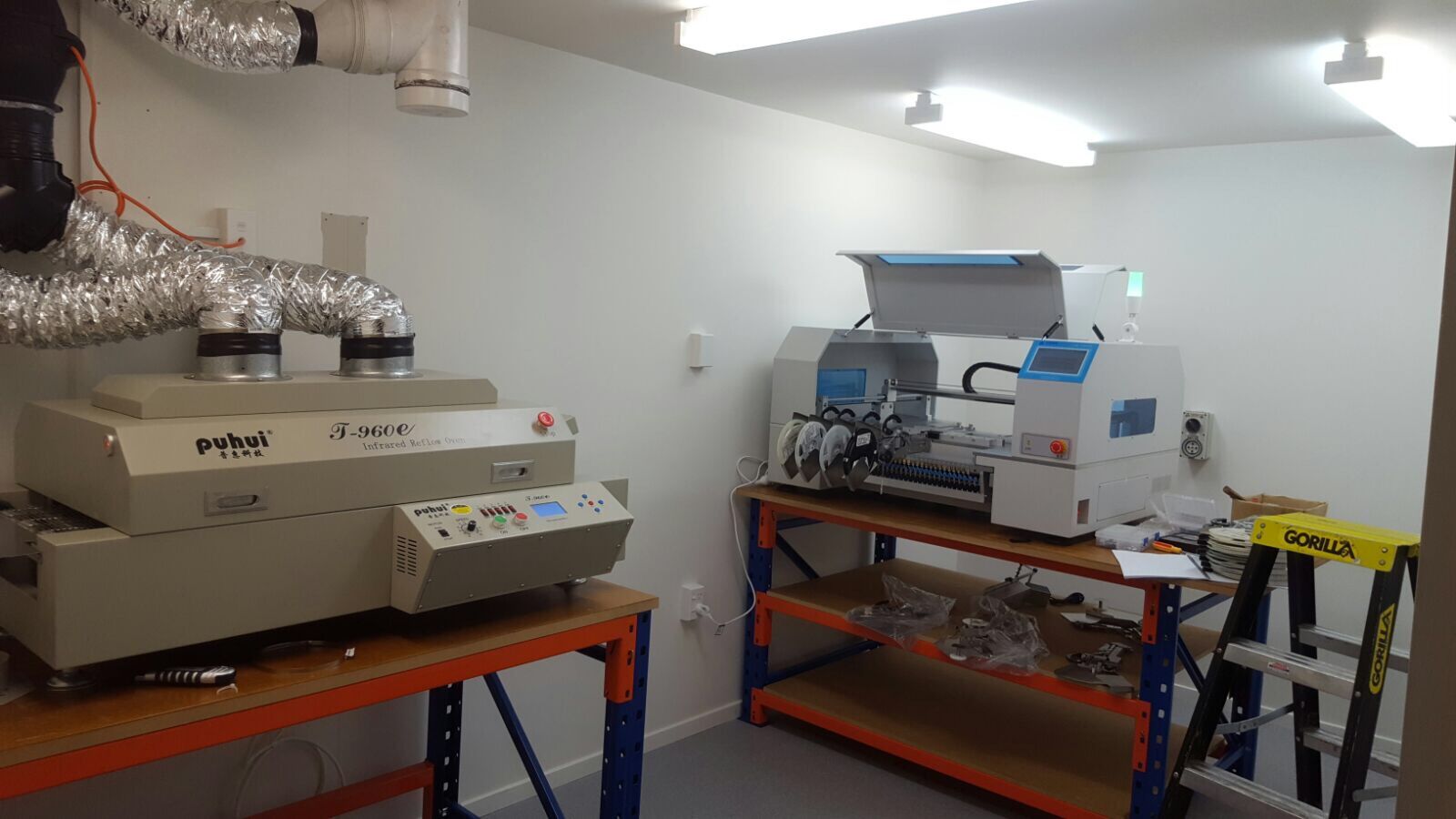

Charmhigh customers
