CHMT510 LED Pick and place Machine, 4 Heads 8 Feeders, 1.2m LED strip
Advanced SMT pick and place machine
1. Model number: CHMT510
2. PCB area: 240mm*1200mm
3. Closed-loop control, Embedded Linux system, industry main board
4. Component: 0603-5050, kins of LED, 1.2m LED strip
6. Delivery: by Air / by Sea / by DHL ...Send to forwarder
warehouse, or arrange pick up from our factory directly.
7. Payment method: T/T;
8. Packing: wooden box
Description:
Charmhigh CHMT510LP4 is an LED desinged pick and place machine with
1.2M moving table, it has 4 heads with 8pcs Yamaha feeders
supported. It has top and down two cameras vision system.
Yamaha pneumatic feeder and Juki Nozzle are mature products, they
are accept by customers in market, very stable and convenient! This
machine for small smt production is your good helper! It is very
suitable for small and medium company and LED factories!
The operation system is industry level embedded Linux system, the
main board of machine was researched by ourself, which is more
relaible than windows system, and life time is much longer. Please
purcahse it with confidence.
Charmhigh CHMT510 Technical Parameters:
| Parameters | |
| Model | CHMT510LP4 |
| XYZ Axis travel | 528mm(X)×380mm(Y)×15mm(Z) |
| PCB max size | 10*10mm - 240mm(L)×1200mm(W) |
| Support components | 1.2 LED strip, 0402-5050, SOP, QFN, etc. |
| Mounting speed |
|
| Precision | ±0.025mm |
| Placement head | 4 heads |
| Feeding system | Support max 8pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder) |
| Vision detection | Double camera (up & down) support max size of IC:22*22mm |
| Motor control |
|
| Components leakage detection | Vacuum and visual detection |
| Main board | High-reliability industry motherboard |
| Touch Screen | 7 inches industry screen, externel mouse control supported |
| Operation system | Embedded Linux system |
| External air source | 0.5MPa |
| Power supply | AC220V 50Hz / AC110V 60Hz |
| Demension | 2050mm(L)×600mm(W)×800mm(H) |
| Power | 250W |
| Net weight | 140Kg |

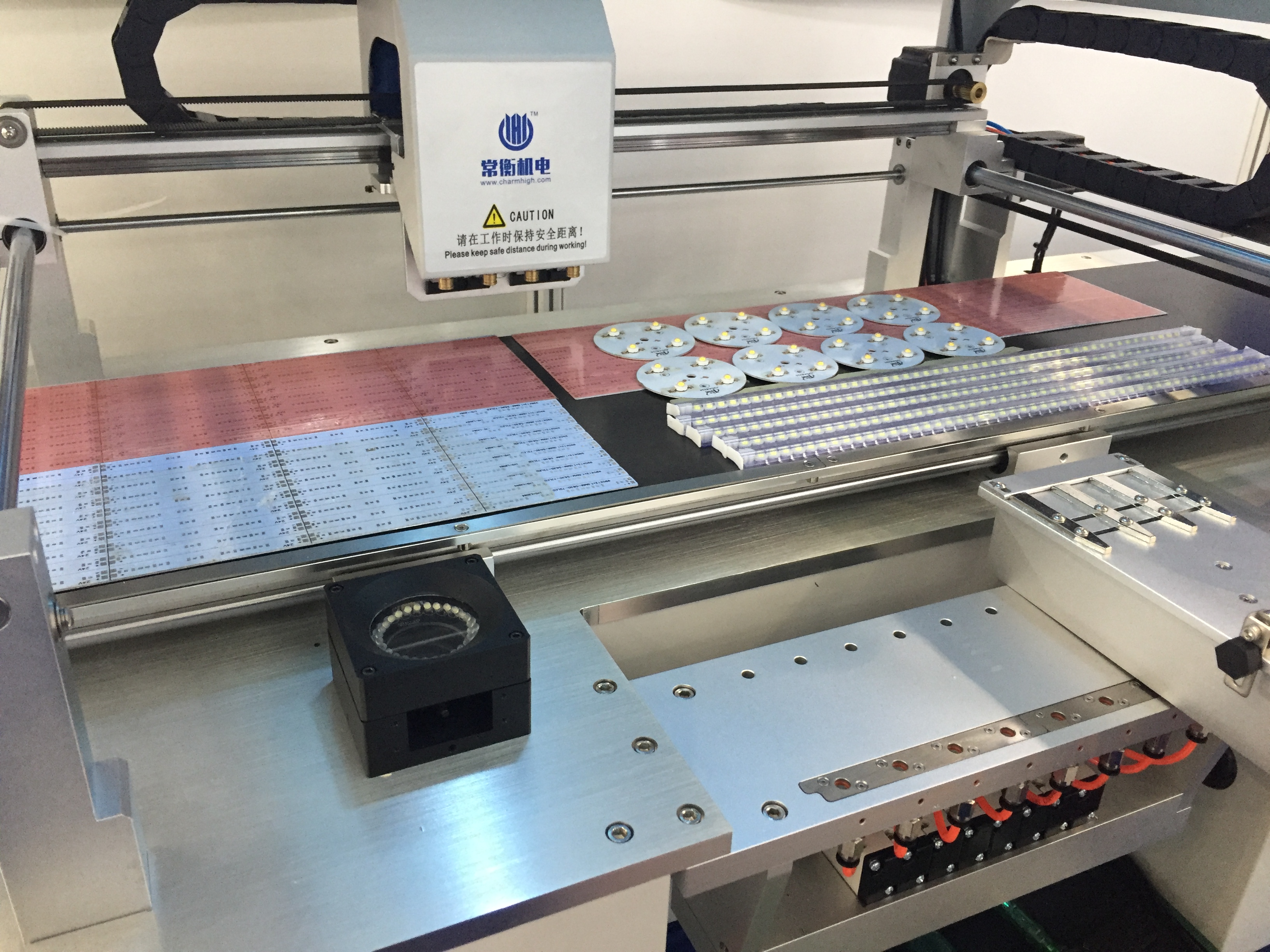

100% Real pictures:
Support Yamaha pneumatic feeders:
Option: 8mm/12mm/16mm + tube feeder
Warranty:
The complete machine has a warranty period of 1 year from the time
of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical
advice service.
Provide one to one after-sale service. Each machine 100% test well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com
Youtube video link of Charmhigh: www.youtube.com/kimiLiuCharmhigh
|
|
