Charmhigh perfect 6 heads model, advanced SMT pick and place machine
High configuration Charmhigh CHM-751, updated from CHM-750. PCB mass production chip mounter

1. Model number: CHM-751
2. PCB area: 400mm(L)*350mm(W)
3. Windows system, comes with computer+mouse+keyboard
4. Component: 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
5. Lead time: 5- 7 working days
6. Delivery: by air/ sea ... or you can arrange pick up from our factory directly.
7. Payment method: T/T
8. Packing: strong plywood box

CHM-751 catalog download: CHM-751 - Catalog.pdf

Description:
CHM-751, a high-speed and good-performance 6 heads pick and place machine of Charmhigh. Its optimal mounting speed is 18400CPH.
CHM-751 Pick and Place Machine is characterized by 50 feeder stacks, 6 heads capable of 360-degree rotation,support for Yamaha pneumatic feeders, electric feeders, stick feeders with tubular components, automatic correction to pick components, suction nozzles can be changed automatically, integrated operation with built-in industrial computer.
This model adopts the integrated structure of precision machinery and uses Charmhigh independent research and development results.
It has the characteristics of high precision, high stability, complete functions and convenient use.

Highlights:
1. Thermal Compensation
2. Support CPK test
3. Vacuum Pump
4. Automatic nozzle change (19 sets nozzle library)
5. PCB Support Device
6. 6 head+50Yamaha feeder stacks+9cameras
7. ……
For more machine features, please consult our account manager

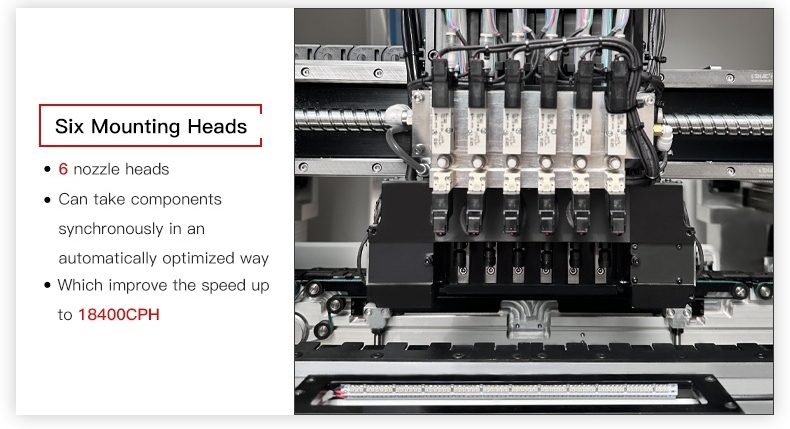

6 Heads with 50pcs feeders (Yamaha pneumatic feeder & electric feeder)


High resolution best quality Cameras 6pcs small + 1pcs big for IC + Auto Rails delvier PCB:

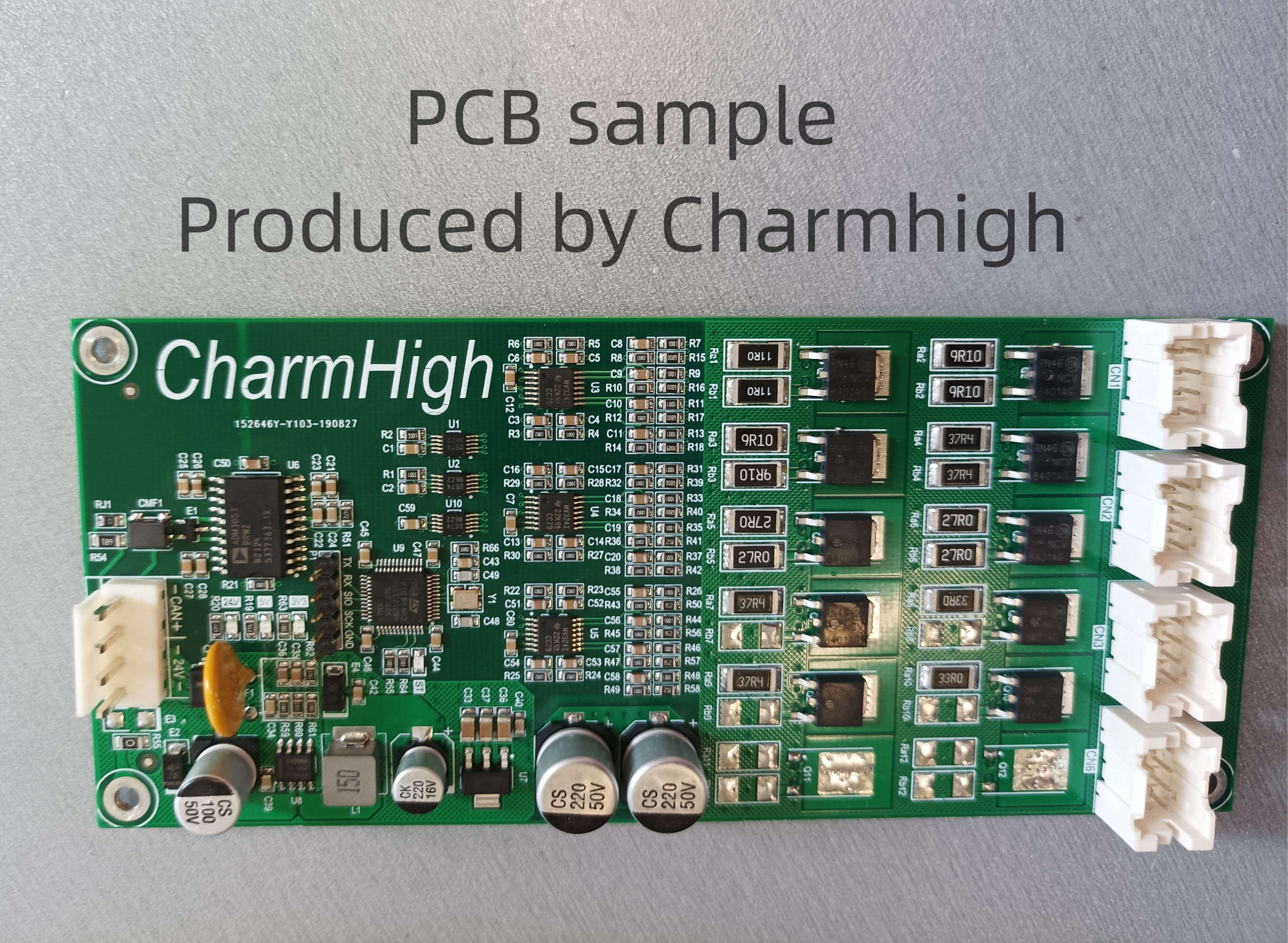

PCB Samples:


Support Yamaha pneumatic feeders or electric feeders:
Option: 8mm / 12mm/ 16mm / 24mm / 32mm/ 44mm + vibration feeder (purchase separately)

Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi@charmhigh-tech.com

Charmhigh brand, factory reliable direct sell with strong after-sell services:

CHARMHIGH TECHNOLOGY LIMITED is a professional SMT pick and place machine and SMT production line equipment maker which founded in 2009. The company is located in the Hunan province Changsha High-tech Development Zone, covering a total area of 3600 square meters. As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
We start up business from CNC router  since 2009, our engineers had plenty experiences on machinery and motion control system, so we added SMT technology into our business since 2012.

Now our 2 heads and 4 heads desktop SMT pick and place machines are for the majority of small and medium SMT manufacturing research & developments organization, LED Lights, Driver Cards or any Similar Types of Manufacturing Facilities. Our 6 heads, 8 heads and 12 heads vertical standard high speed SMT machine is for big volume production factories. We provide one-stop SMT solution to different customers.

By now, the products of our company have been sold to many countries, such as the United States, Canada, United Kingdom, Italy, Germany, Spain, Poland, Australia, Russia etc.

We are very keen to stay up to study with the latest SMT technology, we have confidence to create more quality products. We take after-sales service as the most important thing, please don't hesitate to contact with us if you have any questions or new ideas.
